DS-KAB01
Opis
Obudowa ochronna wykonana ze stali nierdzewnej. Obudowa stosowana do montażu ściennego do stacji bramowej "Villa" (DS-KV8X02-IM), brak izolacji...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KAB01

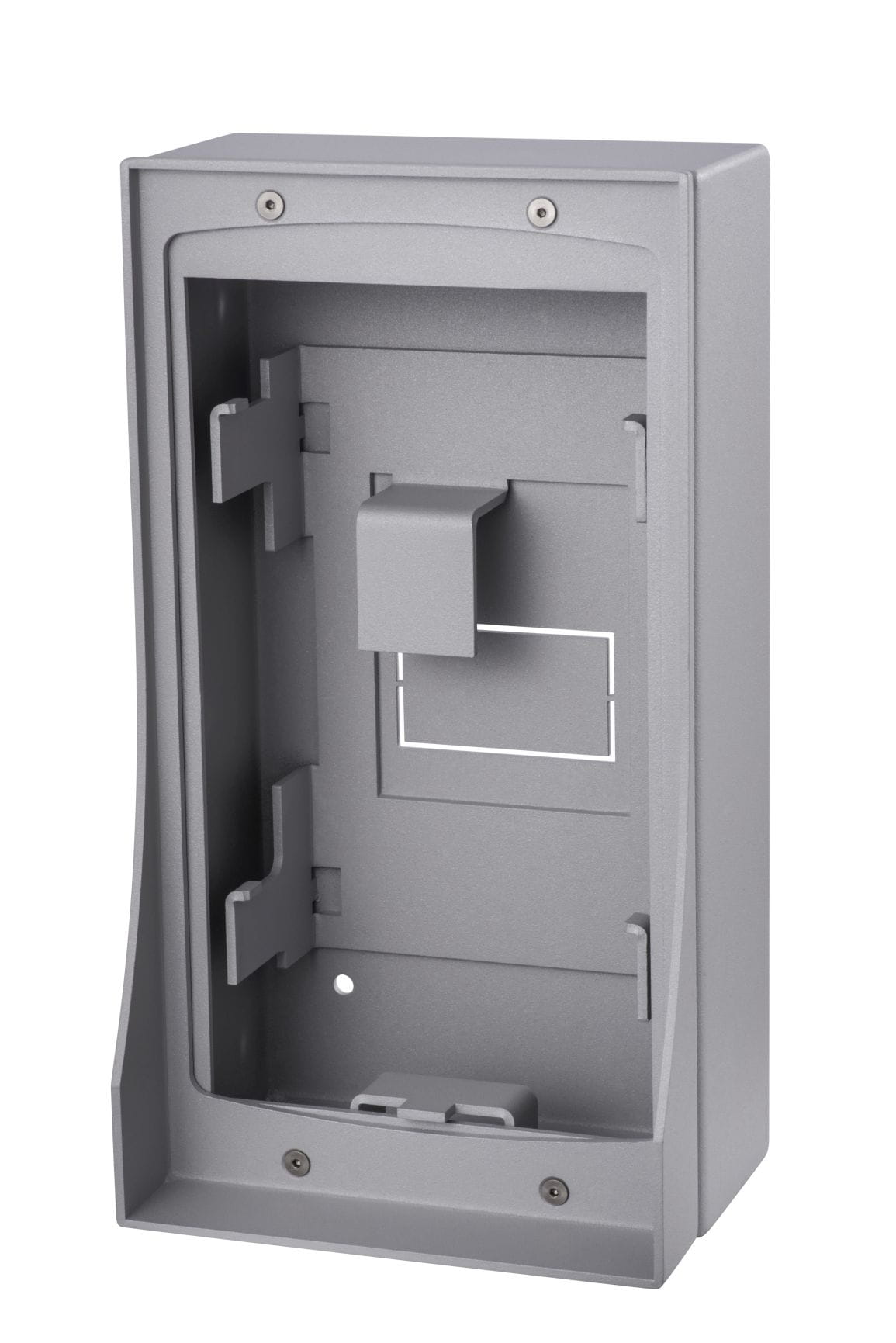

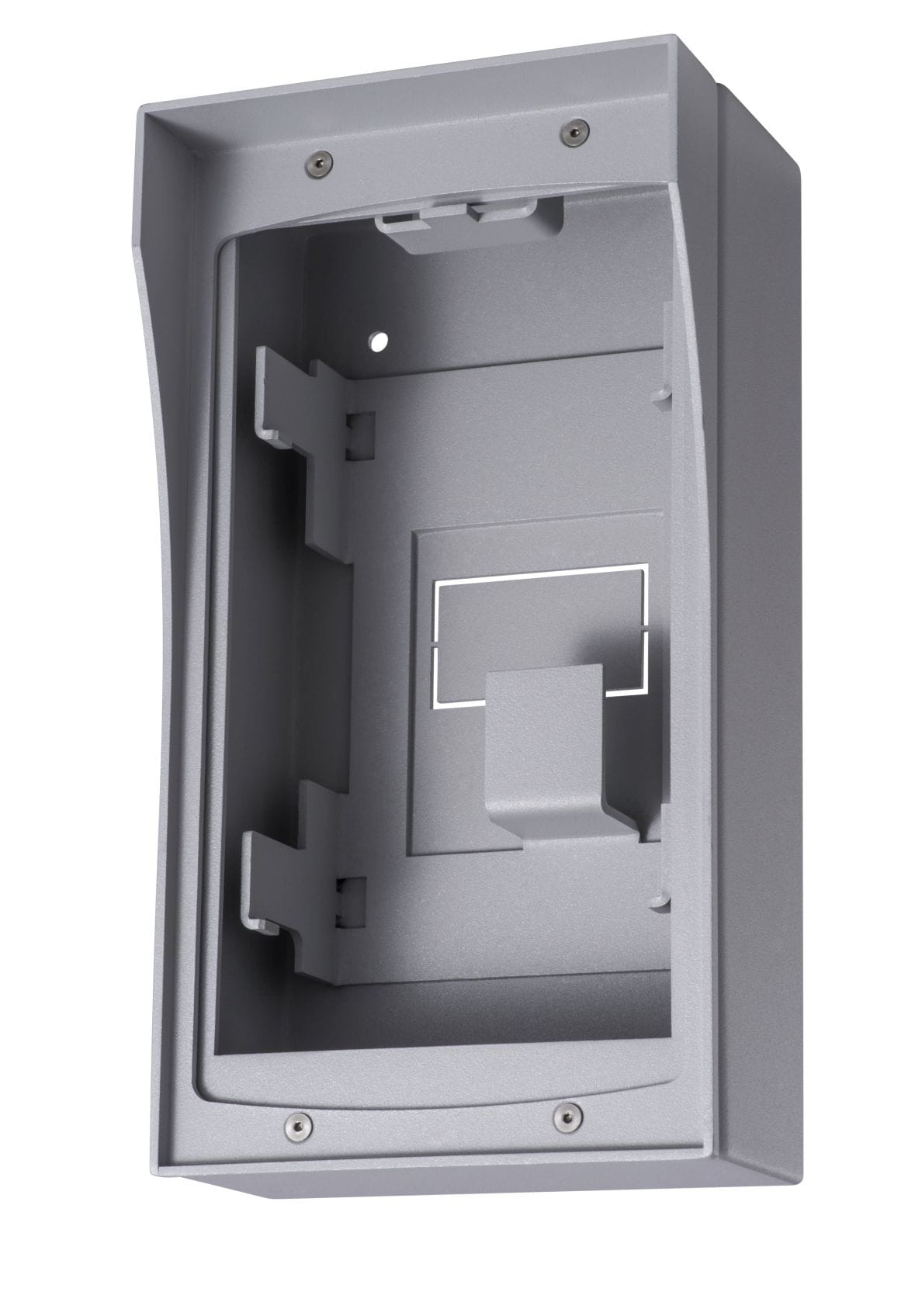

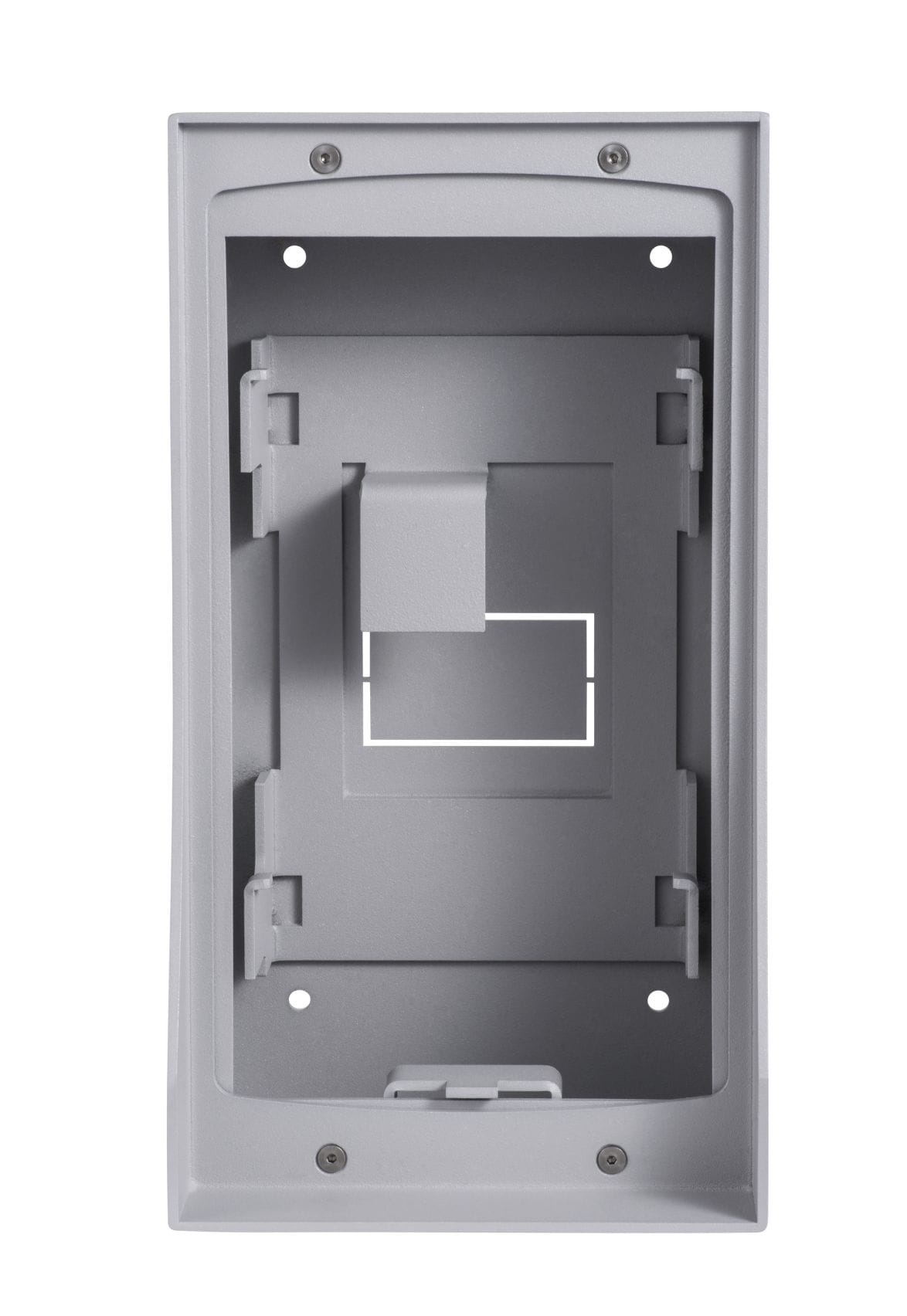

Protective Shield
Features and Notes
Stainless steel material
Convenient design available for the wall mounting of
the villa door station (DS-KV8X02-IM)
No insulation
Available Model
DS-KAB01
Specifications
Parameter Model DS-KAB01
Housing material Stainless Steel SUS201
Inner-shell material SGCC
Working temperature -30° C to +70° C (-22° F to 158° F)
Working humidity 10% to 90%
Dimension (L x W x H) 212 mm x 115 mm x 80 mm (8.35" x 4.53" x 3.15")
Dimension
Front View Slide View Rear View
Installation
0100001061010
