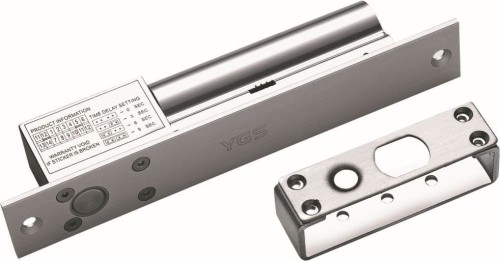

DS-K4T108

Elektrozaczep, wykonany z polerowanej stali nierdzewnej, dopuszczalny nacisk 800kg; Pobór prądu: 900mA(Prąd rozruchowy), 100mA (Tryb czuwania), Zasilanie DC12V...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Spec of DS-K4T108 Electric Bolt www.hikvision.com
1


DS-K4T108 electric bolt is designed for wooden door, glass
door, and metal door with the opening angle of 180°. It can be
used for controlling door opening/closing. It supports signal
output of lock output status testing.




DS-K4T108



 Auto-Locking if the induction module is detected
 Suitable for wooden door, glass door, and metal door
 Equipped with internal voltage dependent resistor (MOV)
 Signal output of door lock status (NO\NC\COM))
 Abrasion-proof materials
 The shell is made up of aldural and is hard anodizing electroplated
 Covert installation




Model DS-K4T108
Dimension of Body (LxWxH) 205x34x42mm (8.1x1.3x1.7")
Unlock Method Current Interruption
Input Voltage 12VDC
Working Current ≤1.2A (Startup Current) 0.2A (Standby)
Signal Output
Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC,
NO Output: Locking; NC Output: Unlocking. If the wiring is
COM/No, NC Output: Locking; NO Output: Unlocking;
Suitable Doors Wooden Door, Glass Door, and Metal Door

MAIN FEATURES

DS-K4T108

Electric Bolt

SPECIFICATIONS

AVAILABLE MODEL


Spec of DS-K4T108 Electric Bolt www.hikvision.com
2

Model DS-K4T108
Delay Duration 0/3/6/9s Optional
Surface Temperature ≤ Ambient Temperature +10°C (50°F)
Working Temperature -10°C~+55°C (14°F~131°F)
Working Humidity 0~95% (Relative Humidity)
Shell Hard Anodizing Electroplating Operated
Weight 0.74kg
