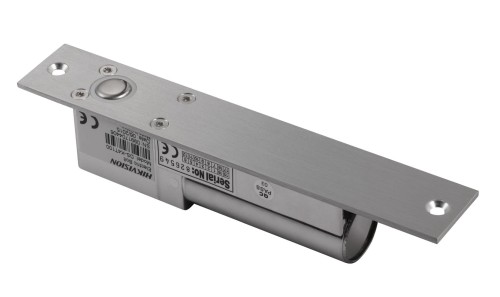

DS-K4T100
Opis
Elektrozaczep, Stal nierdzewna, Wytrzymałość do 800kg; Pobór prądu początkowy: 900mA, 100mA (Czuwanie), Zasilanie DC12V...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Spec of DS-K4T100-UX Series Accessories of Electric Bolt www.hikvision.com
1
The bracket is made up of aluminum alloy
It is suitable for fully frameless glass door;
The door opens both sides at the angle of 180°;
The thickness of the glass is 10~15mm (0.39~0.59");
The weight of the product is 0.27kg (0.60lb)
DS-K4T100-UX Series
DS-K4T100-U1
Lower U-bracket of Electric Bolt, for Using with DS-K4T100
Accessories of Electric Bolt
DS-K4T100-U1
Installation and Dimension
Spec of DS-K4T100-UX Series Accessories of Electric Bolt www.hikvision.com
2
The bracket is made up of aluminum alloy;
The dimension (LxWxH) of the bracket is:
205x58x46mm (8.07x2.28x1.81")
It is suitable for fully frameless glass door;
The door opens both sides at angle of 180°;
The thickness of the glass is 10~15mm (0.39~0.59");
The weight of the product is 1.3kg.(2.87lb)
DS-K4T100-U2
Upper and lower U-bracket of Electric Bolt, for Using with DS-K4T100
DS-K4T100-U1
Installation
