DS-K4H450S

Zwora elektromagnetyczna, obsługuje statyczny nacisk liniowy 500 kg; Napięcie zasilania: DC12V (500 mA) / 24VAC (250 mA)....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Spec of DS-K4H450S Single-door Magnetic Lock www.hikvision.com
1

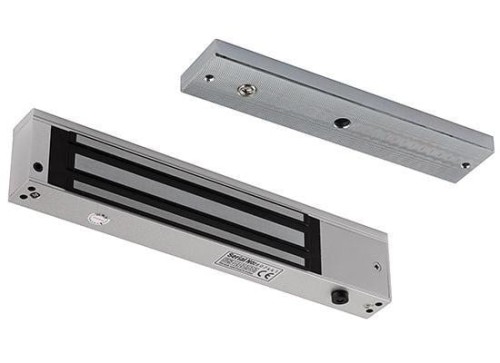

The DS-K4H450S single-door magnetic lock is designed for
wooden door, glass door, metal door, and fireproof door. The
maximum thrust of the lock is 500 kg. It can be used for
controlling door opening/closing, and the indicator shows the
door status. It supports signal output of door lock output
status testing.






DS-K4H450S




 The magnetic lock supports static linear thrust of 500kg
 The power supply can be 12VDC or 24VDC + 10%
 Applies to wooden door, glass door, metal door and fireproof door
 LED indicator displays the status of door lock
 Signal output of door lock status













DS-K4H450S

MAIN FEATURES

Single-door Magnetic Lock

AVAILABLE MODEL

Spec of DS-K4H450S Single-door Magnetic Lock www.hikvision.com
2




Model DS-K4H450S
Dimension of Lock Body (L
x W x H)
265 mm x 71.8 mm x 38.8 mm (10.43” x 2.83” x 1.53”)
Dimension of Armature
Plate (L x W x H)
185 mm x 60 mm x 13 mm (7.28” x 2.36” x 0.51”)
Maximum Thrust 500 kg (1200 Lbs)
Input Voltage 12/24 VDC + 10%
Working Current
12 V/420 mA
24 V/210 mA
Signal Output
Dry Contact Signal Output; Support Maximum Power Rate of 3A, NO
Output While Locking and NC Output While Unlocking
LED Indicator
Green (Locked)
Red (Unlocked)
Suitable Door Wooden Door, Glass Door, Metal Door, Fireproof Door
Weight 4.5 kg




Specification
