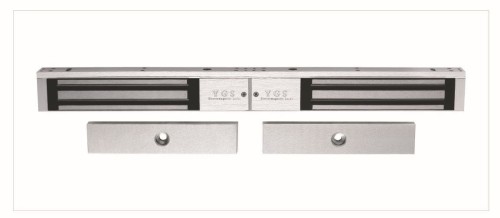

DS-K4H258D

Elektromagnes do drzwi podwójny, maksymalna siła przyciągania wynosi 2 x 258kg, Pobór prądu: 12V/500mAx2 24V/250mAx2...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Spec of DS-K4H258D Two-Door Magnetic Lock www.hikvision.com
1


The DS-K4H280D two-door magnetic lock is designed for
wooden door, glass door, and steel door with the opening
angle of 90°. The maximum thrust of the lock is
280kg(550Lbs)x2. It can be used for controlling door
opening/closing, and the indicator shows the door status.




DS-K4H258D



 The magnetic lock supports static linear thrust of 280kg(550Lbs)x2;
 Default voltage is 12VDC;
 It is equipped with internal voltage dependent resistor (MOV);
 It is applied to wooden door, glass door, metal door and fireproof door;
 LED indicator displays the status of door lock;
 Anti-residual magnetism design
 Abrasion-proof materials;
 The shell is made up of aldural and is hard anodizing electroplated;
 No mechanical failure, and the magnetic lock works by electromagnetism force;



Model DS-K4H258D
Dimension of Lock Body
(LxWxH)
500x45x25mm (19.7x1.8x1.0")
Dimension of Armature Plate
(LxWxH)
182x38x12.5mm (7.2x1.5x0.5")
Unlock Method Current Interruption
Maximum Thrust 280kg(550Lbs)x2 Linear Thrust
Input Voltage 12 VDC

MAIN FEATURES

DS-K4H258D

Two-Door Magnetic Lock

SPECIFICATIONS

AVAILABLE MODEL


Spec of DS-K4H258D Two-Door Magnetic Lock www.hikvision.com
2

Model DS-K4H258D
Working Current 340mAx2
LED Indicator Green (Work Status)
Suitable Door Wooden Door, Glass Door, Metal Door, Fireproof Door
Surface Temperature ≤ Ambient Temperature +20°C (68°F)
Working Temperature -10°C~+55°C (14°F~131°F)
Working Humidity 0~95% (Relative Humidity)
Shell Hard Anodizing Electroplating Operated
Lock Body Eco-friendly Nickel Electroplating Operated
Armature Plate Eco-friendly Zinc Electroplating Operated
Weight 4.2kg
