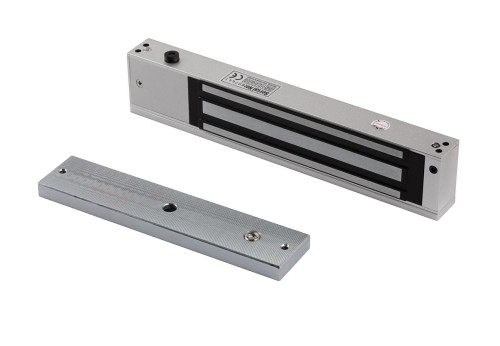

DS-K4H250S

Dostępność: 0
Cena: 442,00 zł 442.00
bez 23.00% VAT i kosztów dostawy
ilość szt.
dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 302900530

Opis

Zwora elektromagnetyczna udźwig 300kg, Napięcie zasilania: DC12V(500 mA) / 24VAC(250 mA)...

Gwarancja: 24 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Spec of DS-K4H250SSingle-doorMagnetic Lock www.hikvision.com
1


The DS-K4H250SSingle-door magnetic lock is designed for
wooden door, glass door, and steel door with the opening
angle of 90°. The maximum thrust of the lock is300kg. It can be
used for controlling door opening/closing, and the indicator
shows the door status. It supports signal output of door lock
output status testing.




DS-K4H250S



 The magnetic lock supports static linear thrust of 300kg;
 The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC;
 It is equipped with internal voltage dependent resistor (MOV);
 It is applied to wooden door, glass door, metal door and fireproof door;
 LED indicator displays the status of door lock;
 Signal output of door lock status (NO\NC\COM);
 Anti-residual magnetism design;
 Abrasion-proof materials;
 The shell is made up ofaldural and is hard anodizing electroplated;
 No mechanical failure, and the magnetic lock works by electromagnetism force;



Model DS-K4H250S
Dimension of Lock Body
(LxWxH)
240x49x25.5mm (9.45x1.93x1.00")
Dimension of Armature Plate
(LxWxH)
180x38x11mm (7.1x1.5x0.4")
Maximum Thrust 300kg Linear Thrust
Input Voltage DC12V/DC24V

MAIN FEATURES
DS-K4H250S
Single-door Magnetic Lock
SPECIFICATIONS
AVAILABLE MODEL


Spec of DS-K4H250SSingle-doorMagnetic Lock www.hikvision.com
2

Model DS-K4H250S
Working Current 12V/500mA 24V/250mA
Signal Output
Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO
Output While Locking and NC Output While Unlocking
LED Indicator Red (Door is Unlocked) Green (Door is Locked)
Suitable Door Wooden Door, Glass Door, Metal Door, Fireproof Door
Working Temperature -10°C to +55°C (14°F to 131°F)
Working Humidity 0 to 95% (Relative Humidity)
Shell Hard Anodizing Electroplating Operated
Lock Body Eco-friendly Zinc with Electroplating Operated
Armature Plate Eco-friendly Zinc withElectroplating Operated
Weight 2.1kg(4.63lb)








Circuit Board Diagram

Spec of DS-K4H250SSingle-doorMagnetic Lock www.hikvision.com
3







Installation
