DS-K2M060
Opis
Sterownik drzwi, Czytnik obsługujący: 1 Wiegand, Interfejs komunikacyjny Uplink: iRS-485;Interfejs wejściowy: kontaktronx1, przycisk wejściax1, Sabotażx1;Interfejs wyjściowy: przycisk wyjściax1, Moduł przekźnikowyx1.Zasilanie: DC 12V....
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Produkt zamienny: DS-K2M061
Kod produktu zamiennego: 302917740
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
1

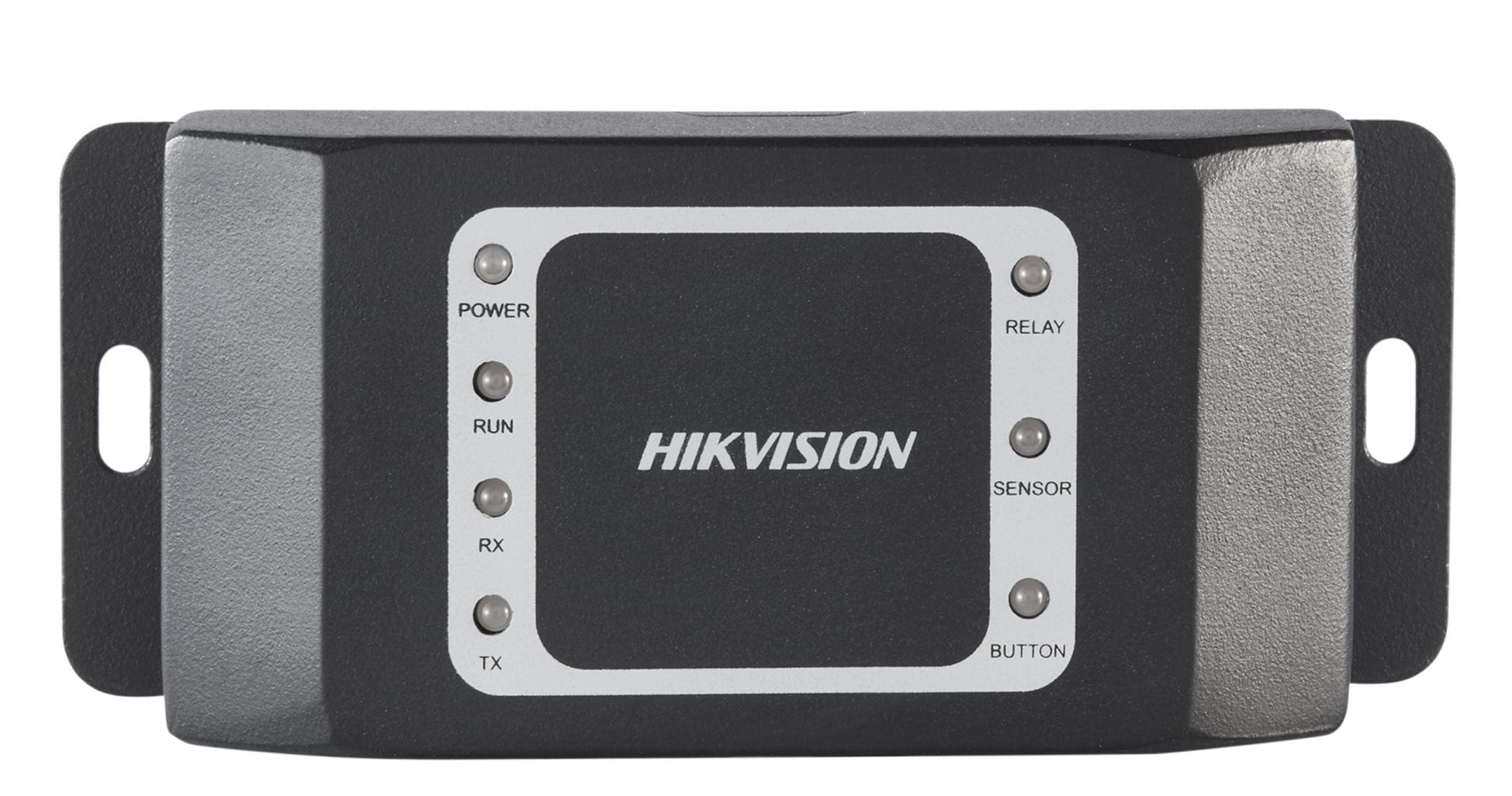

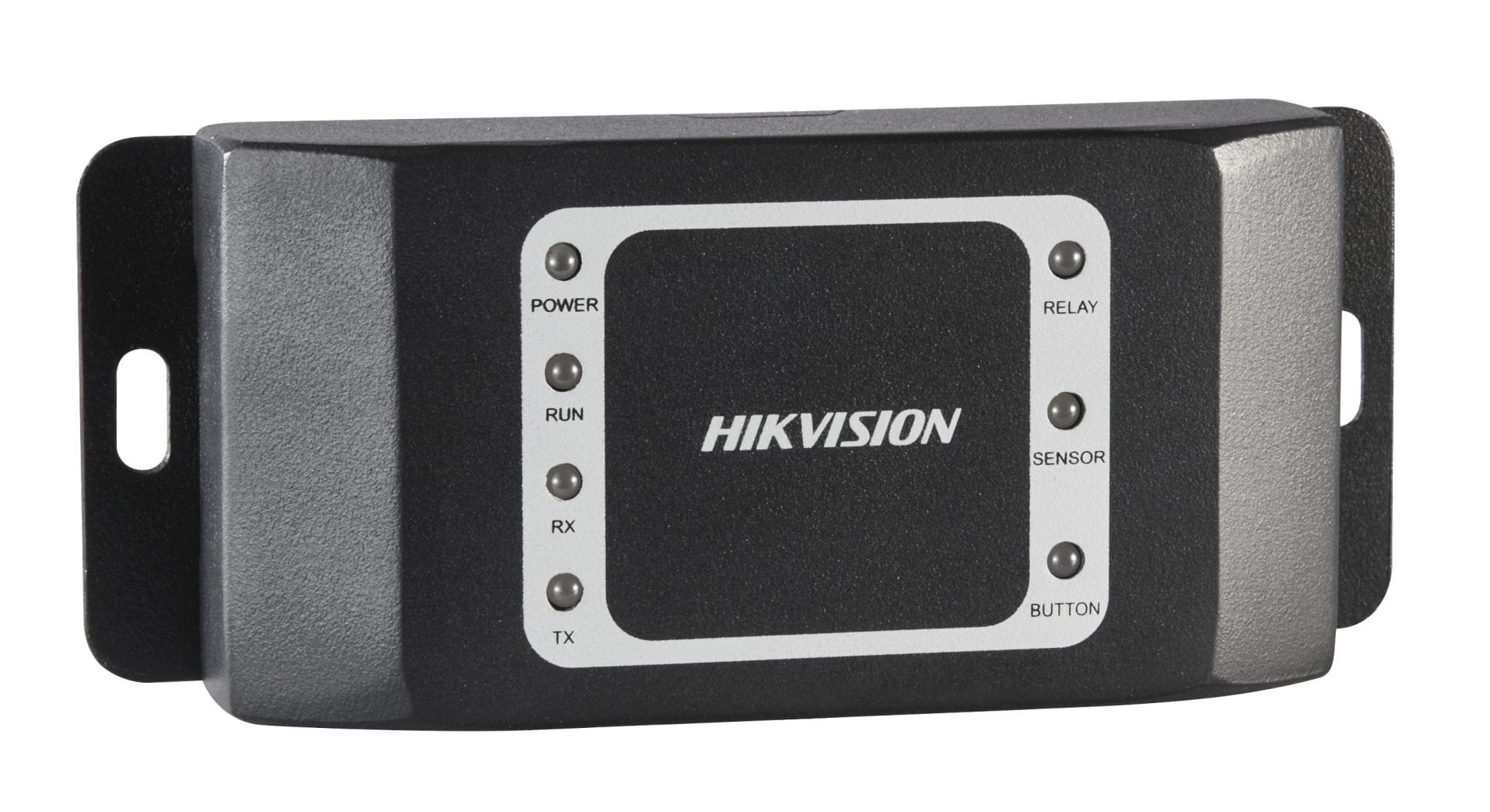

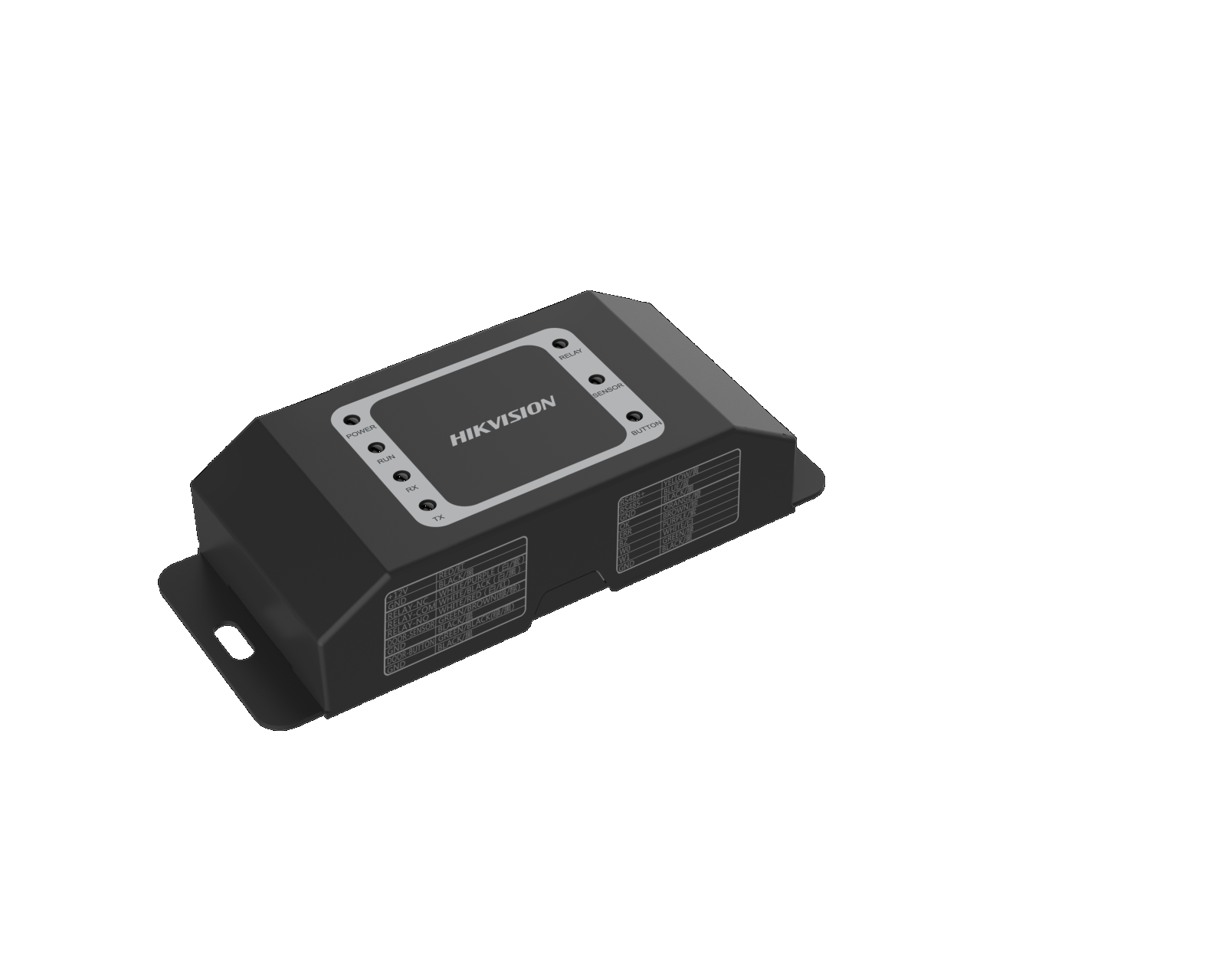

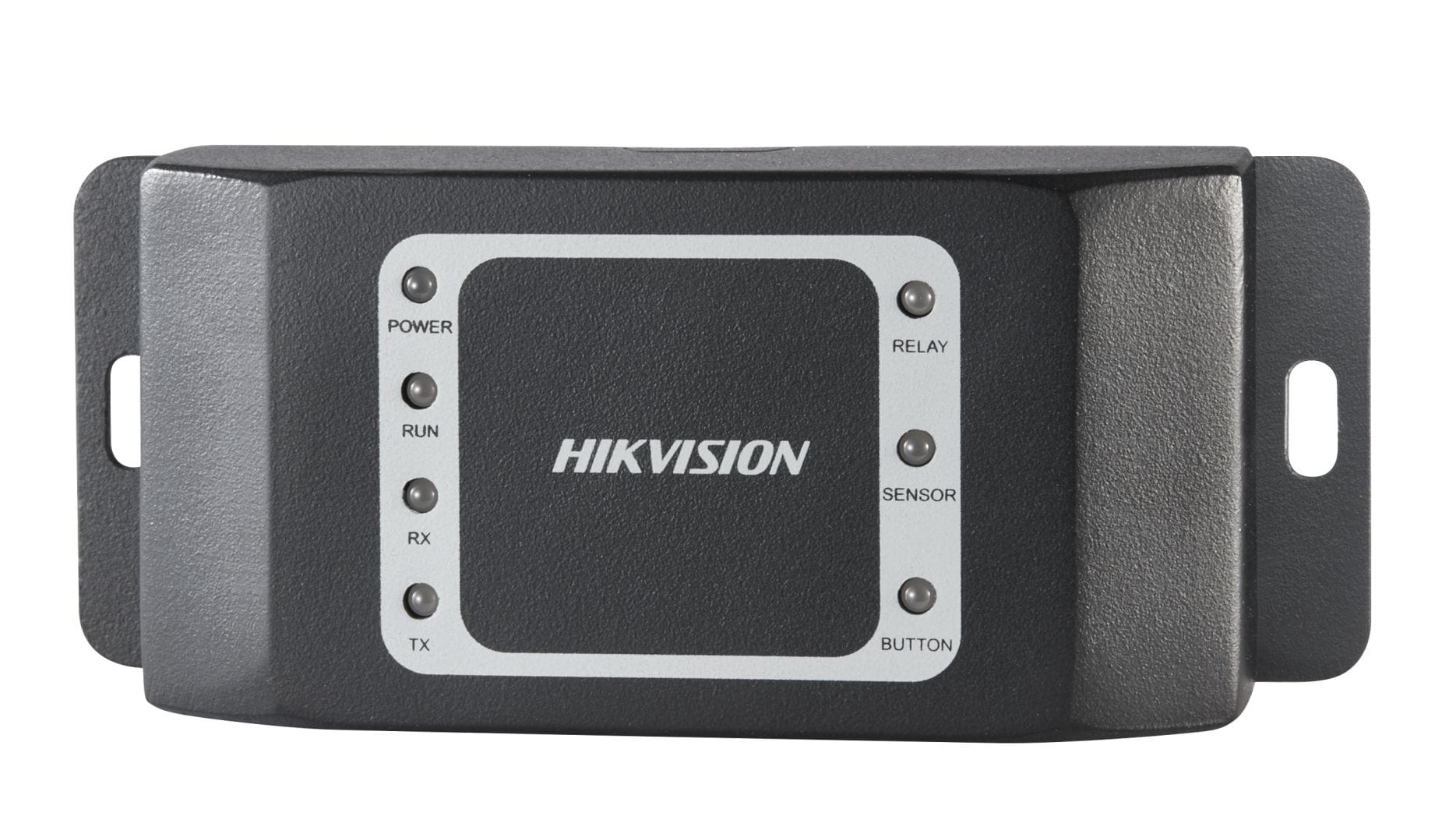

DS-K2M060 Secure Door Control Unit is the
interlayer between the access control terminal
and the lock, including the door magnetic, the
lock, the exit button and so on. It can be applied
to keep the door closed when the door is
damaged.
DS-K2M060
Communicates with the access control terminal via RS-485 to execute the commands from the
terminal including open door, close door, normally open and normally closed
Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send
them to the access control terminal
Supports tampering Alarm
Supports RS-485 communication indicators to show the communication status
4-ch DIP switch supporting ID NO. configuration
Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control
terminal by swiping card
Secure Door Control Unit
MAIN FEATURES
DS-K2M060
AVAILABLE MODELS
Spec of DS-K2M060 Series Secure Door Control Unit www.hikvision.com
2
RS-485
Access Control Terminal
Electric Lock
Exit Button
Secure Door Control Unit
Wiegand
Wiegand Card Reader
Model DS-K2M060
Communication Interface RS-485
Input / Output Interface
Exit Button*1, Lock*1, Door Magnetic*1, Alarm Out*1 and
Wiegand*1
Indicator
7 Indicators (RS-485 Communication Status*2, Power Supply*1,
Exit Button*1, Lock Status*1, Door Magnetic*1 and Running
Status*1)
Power Supply DC 12V
Working Temperature -30°C to +55°C (-22°F to 131°F)
Working Humidity 10% to 90% (Non Condensing)
Dimensions 48x115x25mm (1.89x4.53x0.98inch)
Installing Method Wall Mounting
SPECIFICATION
TYPICAL APPLICATOIN
