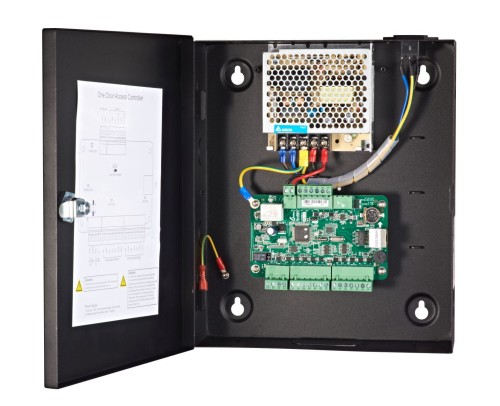

DS-K2801

Kontroler dostępu do pojedynczych drzwi, czytnik kart dostępu: 2 czytniki Wiegand; Interfejs wejściowy: Magnetyczne drzwi x 1, Przełącznik drzwi x 1, tamper antysabotażowyx 1; Interfejs wyjściowy: Przekaźnik przełącznika drzwi x 1, Przekaźnik alarmowy x 1; Interfejs komunikacyjny Uplink: interfejs sieciowy TCP / IP; Przechowywanie 10 000 informacji o kartach i 50 000 zdarzeń kontroli dostępu...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-K2800 is a series of powerful and stable access controller, using the
logical architecture design. The uplink and downlink adopt TCP/IP and
wiegand communicate respectively. Its signal processed with special
encryption and can be run offline. Anti-tampering function is also
supported.



DS-K2801 Single-door Access Controller
DS-K2802 Double-door Access Controller
DS-K2804 Four-door Access Controller





 32-bit high-speed processor
 TCP/IP network communication, with
self-adaptive network interface. The
communication data is encrypted to ensure
information security
 Supports Wiegand interface for accessing
card reader. Wiegand interface supports
W26/ W34 and is seamlessly compatible
with third-party card reader
 Massive storage with 10, 000 cards
information and 50,000 card swiping records
 Supports first card function, super card and
super password function, online upgrade
function and online remote control of the
doors
 Supports various card types such as normal/
disabled/blacklist/patrol/visitor/duress/
super card, etc.
 Supports tamper-proof alarm for card reader,
unsecured door alarm, forced entry door
alarm, alarm for door opening timeout,
duress alarm, and alarm for invalid card
swiping attempts alarm, case in alarm and
restore, insufficient storage alarm for offline
event, network break alarm
 The recognition and storage of card number
with maximum 20 digits
 Supports online and offline operating mode;
 Supports time synchronization via NTP,
manual or automatic method

MAIN FEATURES

DS-K2800 Series

Network Access Controller

MODEL

Spec of DS-K2800 Series Network Access Controller www.hikvision.com
2

 Watchdog for device running status
detection
 Data can be permanently saved when the
access controller is powered off
 Client supports attendance function
 High/low temperature resistant design(-20°C
to + 65°C)


Model DS-K2801 DS-K2802 DS-K2804
Working Voltage DC 12V
Power consumption ≤3.5W (without Load)
Processor 32-bit
RAM 8M
Uplink
Communication
Interface
TCP/IP
Downlink
Communication
Interface
Wiegand (W26/W34)
Storage Storage for 10, 000 Valid Cards Information and 50, 000 Card Swiping Records
LED Indicator Power Supply Status, Communication Status, Abnormal Status
Built-in Clock Yes
Accessible Card
Reader
2 Card Readers (Wiegand
Interface)
4 Card Readers (Wiegand
Interface)
4 Card Readers (Wiegand
Interface)
Input Interface
Door Sensor x 1,
Exit Button x 1,
Case Input x 1
Door Sensor x 2,
Exit Button x 2,
Case Input x 2
Door Sensor x 4,
Exit Button x 4,
Case Input x 4
Output Interface
Lock Relay x 1, Alarm
Relay x 1
Lock Relay x 2, Alarm
Relay x 2
Lock Relay x 4, Alarm
Relay x 4
Working
Temperature
-20°C to +65°C (-4°F to +149°F)
Working Humidity 10% to 90% (Non-Condensing)
Dimensions (LxWxH) 285mm x 237mm x 69mm (11.22" x 9.33" x 2.72")


SPECIFICATION
