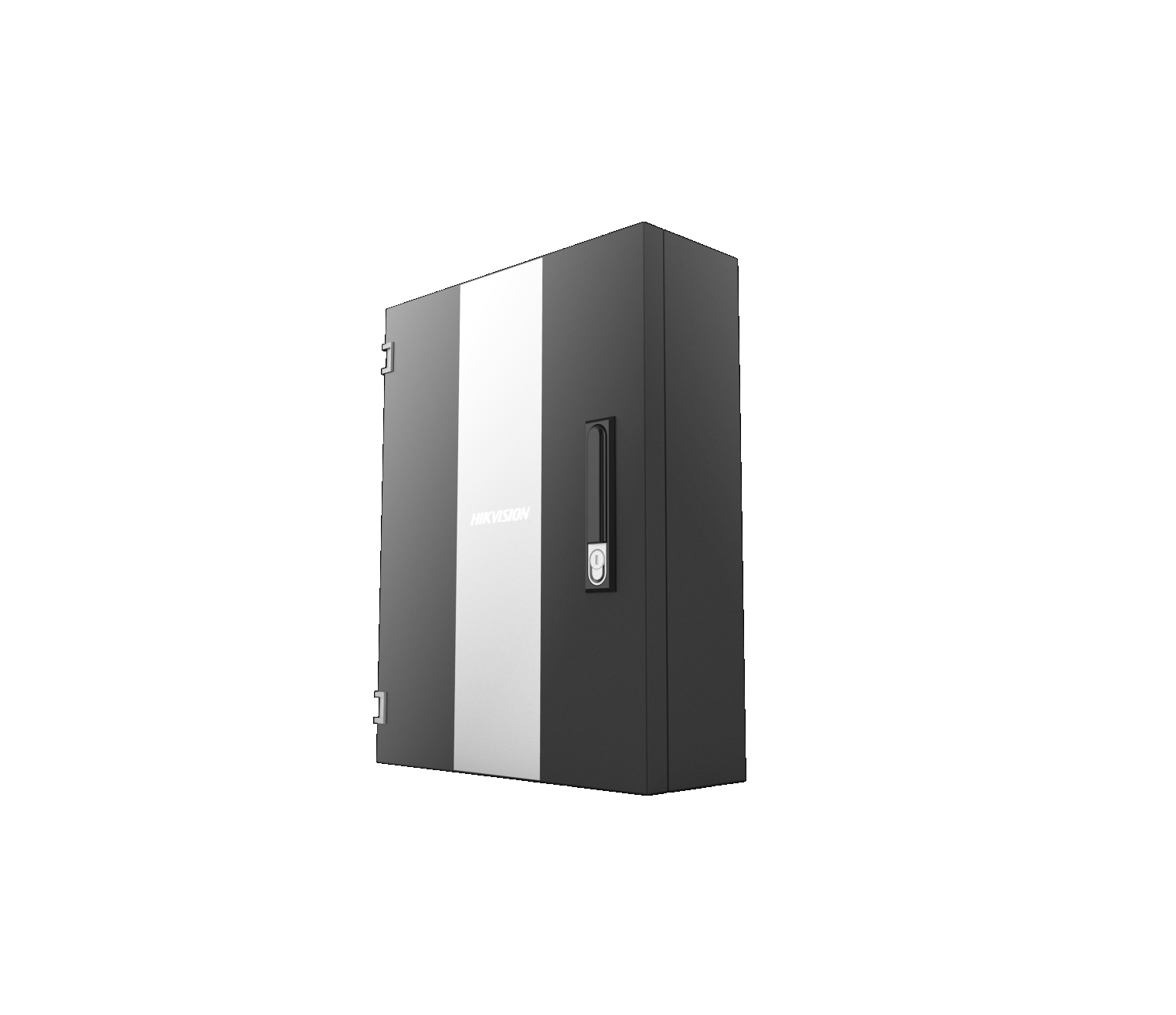

DS-K27M01

Dostępność: 0
Cena: 3 307,00 zł 3307.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 302902293

Opis

Kontroler rozproszonego dostępu, pamięć masowa z 20 000 kart i 60 000 zdarzeń kontroli dostępu.Komunikacja Uplink: TCP / IP i RS-485 x 2;Dostępny czytnik kart: 2 czytniki Wiegand lub 2 czytniki RS485;Interfejs wejściowy: wejście alarmu x 6, czujnik drzwi x 1, przełącznik drzwi x 1, połączenie przeciwpożarowe x 1, tamper antysabotażowyx 1;Interfejs wyjściowy: przekaźnik przełącznika drzwi x 1, przekaźnik alarmowy x 6....

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

1


The Hikvision Master and Distributed Access Controller is
composed of a master access controller and three distributed
access controllers. The master access controller supports
TCP/IP communication (with dual network interfaces) and
RS-485 communication with the client software. It supports 4
RS-485 loops when communicating with distributor access
controllers. AES encryption ensures the data security in the
communication among devices. The distributed access
controllers support the SPOF (Single-Point of Failure) and the
redundancy processing of the card reader, so as to ensure the
system stability. The master and distributed access controller
is available for the industries of subways, airports, banks, and
enterprises, etc..




DS-K2700 Master Access Controller
DS-K27M01 Single-Door Distributed Access Controller
DS-K27M02 Two-Door Distributed Access Controller
DS-K27M04 Four-Door Distributed Access Controller



Main Features of Master Access Controller
 Equipped with 2 TCP/IP interfaces and 1 RS-485 interface for the uplink communication with the
client software. The TCP/IP communication and RS-485 communication can be the redundant
backup for each other. 10M/100M/1000M adaptive network interfaces are supported, and up to
256 links can access.
 Equipped with 1 10M/100M TCP/IP network interface and 8 RS-485 interfaces for the downlink
communication with distributed access controllers. The TCP/IP communication and RS-485
communication can be applied at the same time. The controller can adopts one kind of
communication mode when another one breaks down. 8 RS-485 interfaces can form 4 RS-485
loops. Up to 16 distributed access controller can be mounted on each RS-485 loop.

Master and Distributed Access Controller

MAIN FEATURES

DS-K2700 Series

AVAILABLE MODELS


Spec of DS-K2700 Series Master and Distributed Access Controller www.hikvision.com
2

 With the distributed access controller, the master access controller can control doors. For each
master access controller, up to 64 distributed access controllers can be connected to. That is, up
to 128 doors can be controlled.
 Supports storing up 20,0000 legal card records and 60,0000 events permanently. Automatic
cyclic coverage can be configured.
 Supports the duration permission management. Permissions of 255 week plans, 8 time periods
per day, 1024 holiday schedules, and 255 holiday groups can be configured.
 Supports multiple authentications for opening the door: Card, Card + Password, Card/Password,
Fingerprint, Fingerprint + Password, Fingerprint/Card, Fingerprint + Card, Fingerprint + Card +
Password.
 Supports opening the door by only entering the password for 1000 times. In emergencies, it
supports opening the door by entering the card No. instead of swiping the card.
 Supports the anti-passing back function, the multi-door interlocking function, opening door with
multiple cards, opening door with first card, opening door with super password, and opening
door with duress code.
 For the multi-door interlocking, up to 4 interlocking groups can be set, and up to 8 door can be
supported for each group.
 For opening door with multiple cards, up to 64 card groups can be set, and up to 128 cards can
be authenticated.
 For opening door with first card, two modes of the first card are supported: Normally Open, and
Normally Closed.
 Supports multiple card types: normal card, card for disabled person, blacklist card, patrol card,
duress card, super card, and visitor card.
 Supports storing and uploading event records, such as card swiping records, alarm events,
remote operation events, and so on. All events will be uploaded in realtime when the device
works. When the device is offline or power-off, the data will be saved permanently and will be
uploaded automatically when the network is recovered.
 The master access controller has 16 zones for the alarm input, supporting the zone short
circuited alarm and the zone disconnected alarm. Multiple zone types are supported: Instant
Zone, 24 Hour Zone, Shield Zone, Exit Button Zone, and so on. The master access controller can
support extended zones by connecting to distributed access controllers. Up to 400 extended
zones for the alarm input can be allowed.
 The master access controller has 8 zones for the alarm output, and it can support extended
zones by connecting to the distributed controllers. Up to 392 extended zones for the alarm
output can be allowed.
 Supports event/card No. linkage with the maximum 500 pieces of linkage.
 Supports the fire-fighting linkage.
 Supports backup batteries, watchdog, and tamper-proof functions.
 Equipped with a built-in RTC, and supports NTP synchronization and remote synchronization.
 Supports the standby storage battery, and supports the low battery alarm.
 Supports the USB port to upgrade the controller, import/export the configuration parameters or
card permission parameters, and export the card swiping records.
 Supports the online upgrade. If upgrading failed, the controller still can work by the original
program, and the controller will auto re-upgrade when it is restarted.

Spec of DS-K2700 Series Master and Distributed Access Controller www.hikvision.com
3

 Designed with independent power switch, communication indicator, running indicator, and
abnormal indicator.
 Designed with 19-inch 3U chassis, which can be put into the cabinet or applies to the wall
mounting.
 Supports IP 54.
Main Features of the Distributed Controller
 Designed with 3 types of distributed access controller: single-door
distributed access controller, two-door distributed access controller,
and four-door distributed access controller.
 Adopts the modular design for the convenient maintenance.
 Equipped with 2 RS-485 interfaces for the uplink communication
(RS-485 communication) with the master access controller. 2 RS-485
interfaces forms 1 RS-485 loop.
 Equipped with 1 TCP/IP 10M/100M self-adaptive network interface
for the uplink communication (TCP/IP communication) with the
master access controller.
 Supports being connected to the card reader via RS-485 interface or Wiegand interface.
 Supports RS-485 loop, formed by 2 RS-485 interfaces, for the RS-485 communication with the
card reader, and supports loop power fault detection and redundant function.
 Supports W26 and W34 for the Wiegand communication with the third-party card readers.
 Supports online working mode and offline working mode. In the online mode, it supports the
permissions of the master access controller for the access control. In the offline mode, it
supports the offline permissions of the master access controller for the access control. The
offline permissions are downloaded to the distributed access controller via the memory.
 Supports storing 20,000 legal cards and 60,000 pieces of offline event records.
 Supports offline card parameters configuration and offline templates configuration. Permissions
of 255 week plans, 8 periods per day, 1024 holiday schedules, and 255 holiday groups can be
configured.
 Supports the zone short circuited alarm and the zone disconnected alarm.
 Designed with two batteries, providing separated power supply for the electric lock and the
control panel.
 Supports the fire-fighting linkage.
 Supports backup batteries, watchdog, and tamper-proof functions.
 Equipped with a built-in RTC, and supports NTP synchronization and remote synchronization.
 Supports the standby storage battery, and supports the low battery alarm.
 Supports the USB port to upgrade the controller, import/export the configuration parameters or
card permission parameters, and export the card swiping records.
 Supports the online upgrade. If upgrading failed, the controller still can work by the original
program, and the controller will auto re-upgrade when it is restarted.
 Designed with independent power switch, communication indicator, running indicator, and
abnormal indicator.
 Designed with 19-inch 3U chassis, which can be put into the cabinet or applies to the wall
mounting.
 Supports IP 54.


Spec of DS-K2700 Series Master and Distributed Access Controller www.hikvision.com
4







Specification for Master Access Controller
Model Master Access Controller
Door Amount Max. 64 Distributed Access Controller, Max. 128 Doors
Capacity for
Card/Offline Events
Card: 200,000
Event: 600,000
Ingress Protection
Level
Indoor: IP 54
Working Temperature -20°C to +70°C (-4°F to 158°F)
Holiday Schedule 1024
Holiday Group 255
Week Plan 255
Template 255

SPECIFICATION

TYPICAL APPLICATION

Spec of DS-K2700 Series Master and Distributed Access Controller www.hikvision.com
5

Model Master Access Controller
Battery Supported
Uplink
Communication
TCP/IP Communication (Dual Network Interfaces)
RS-485 Communication (RS-485 Interfaces)
Downlink
Communication
RS-485 Communication (4 RS-485 Loops)
TCP/IP Communication (1 10M/100M Network Interfaces)
Fire-Fighting Linkage 1 Interface for Fire-Fighting Detection
Special Function Anti-passing back, Multiple Authentication, Multi-Door Interlocking
Response Time ≤ 1s
Alarm Input 16
Zone Disconnected
Alarm
Supported
Zone Short Circuited
Alarm
Supported
Tamper-Proof Alarm Supported
Alarm Output 8
USB Interface 1 USB Interface for the Device Upgrade and Date Importing/Exporting
Structure Wall Mounting with 19-in 3U Standard Cabinet



Specifications for Distributed Access Controller
Model
Distributed Access Controller
Single-Door Two-Door Four-Door
Door Amount 1 2 4
Capacity for
Card/Offline Events
Card: 200,000
Event: 600,000
Card: 200,000
Event: 600,000
Card: 200,000
Event: 600,000
Ingress Protection
Level
Indoor: IP 54 Indoor: IP 54 Indoor: IP 54
Working Temperature
-20°C to +70°C (-4°F to
158°F)
-20°C to +70°C (-4°F to
158°F)
-20°C to +70°C (-4°F to
158°F)
Holiday Schedule 128 128 128
Holiday Group 64 64 64
Time Period per Day 8 8 8

Spec of DS-K2700 Series Master and Distributed Access Controller www.hikvision.com
6

Model
Distributed Access Controller
Single-Door Two-Door Four-Door
Week Plan 128 128 128
Template 128 128 128
Battery Supported Supported Supported
Uplink
Communication
2 RS-485 Interfaces,
1 Network Interfaces
2 RS-485 Interfaces,
1 Network Interfaces
2 RS-485 Interfaces,
1 Network Interfaces
Downlink
Communication
RS-485 loop,
2 Wiegand Interfaces
RS-485 loop,
2 Wiegand Interfaces
RS-485 loop,
2 Wiegand Interfaces
Fire-Fighting Linkage
1 Interface for
Fire-Fighting
Detection
1 Interface for
Fire-Fighting
Detection
1 Interface for
Fire-Fighting
Detection
Zone Disconnected
Alarm
Supported Supported Supported
Zone Short Circuited
Alarm
Supported Supported Supported
Tamper-Proof Alarm Supported Supported Supported
Alarm Input 6 6 6
Alarm Output 6 6 6
Additional Interfaces
1 Electric Lock, 1 Door
Magnetic, 1 Exit
Button
2 Electric Lock, 2 Door
Magnetic, 2 Exit
Button
4 Electric Lock, 4 Door
Magnetic, 4 Exit
Button
DIP Switch
Legal Addresses:
1-128
Legal Addresses:
129-192
(The Dial-up switch 8
should be ON)
Legal Addresses:
193-224
(The Dial-up switch7
and 8 should be ON)
Breakpoint Prompt
(RS-485)
Supported Supported Supported
Card Reader
Card Reader
supporting Mifare
Card, ID Card, CPU
Card, , and Fingerprint
Card Reader
supporting Mifare
Card, ID Card, CPU
Card, , and Fingerprint
Card Reader
supporting Mifare
Card, ID Card, CPU
Card, , and Fingerprint
Installation Wall Mounting Wall Mounting Wall Mounting

0100001070502

do góry
Sklep jest w trybie podglądu
Pokaż pełną wersję strony
Sklep internetowy Shoper.pl
