DS-K2210

Kontroler główny windy, pamięć masowa z 20 000 kart i 50 000 zdarzeń, uprawnienia do maksymalnie 128 pięter.Komunikacja w górę: TCP / IP i RS-485;Dostępny czytnik kart: 2 czytniki Wiegand lub 2 czytniki RS485;Interfejs wejściowy: Przycisk awaryjny x 1,1 Przycisk alarmu pożarowego x 1, 1 Przycisk konserwacji x 1, Wejście obudowy x 2;Interfejs wyjściowy: Przekaźnik przełącznika drzwi x 4, Przekaźnik alarmowy x 4....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1


The elevator controller contains master elevator controller
and distributed elevator controller. It can be applied to
buildings, public areas and so on. DS-K2210 master
elevator controller supports up to 128 floors’

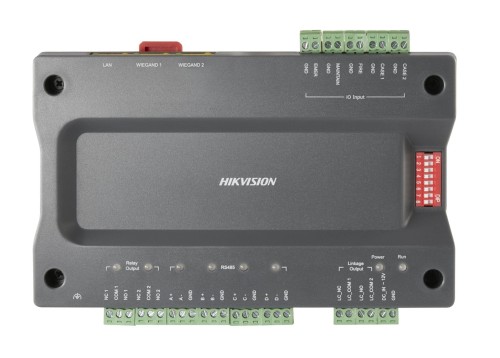

DS-K2210 Master Elevator Controller



Main Features of Master Access Controller
Features
 Connectable with up to 2 Wiegand card readers or RS-485 card readers
 Connectable with up to 3 groups of distributed elevator controllers (DS-K2M0016A). Each
group is connectable with up to 8 distributed elevator controllers (DS-K2M0016A)
 Supports 3 types of relays: Button, Call Elevator and Auto Button
 Up to 128 floors’ permissions can be controlled
 Supports adding 20,000 normal cards and saving 50,000 events
 Supports uploading events, saving offline events
 Save the data when powering off
 Get the floor No. through permission management to control the corresponding relays
 Supports up to 256 schedule template. Each schedule template supports up to 1 week plan
and 4 holiday groups
 Supports 5 input terminals and 5 output terminals

Master Elevator Controller

MAIN FEATURES

DS-K2210

AVAILABLE MODELS


Spec of DS-K2210 Master Elevator Controller www.hikvision.com
2

 Event input and output
 Multiple authentication modes: Card, Fingerprint, Card and Fingerprint, Card and Password,
Employee ID and Password, Super Password and Duress Code.
 Remote control via the web client and the iVMS-4200 client software
 Supports NTP time synchronization, manually time synchronization, auto time
synchronization.
 Watchdog and Tamper-proof function





Spec of DS-K2210 Master Elevator Controller www.hikvision.com
3




Model DS-K2210 Master Elevator Controller
Processor 32 bit
Communication TCP/IP;RS-485, and Wiegand
Normal Card/Event 20,000 Cards and 50,000 Events
Indicator
Power On: Solid Green
Running Properly: Flashing Green
Running Exception: Solid Red
Serial Port Not Communicating: Off
Serial Port Communicating: Solid Green
Relay NC: Off
Relay NO: Solid Green
Network Disconnected: Off
Network Cable Connected: Solid Yellow, Flashing Green
Network Armed: Solid Yellow, Flashing Green
Internal Clock Support
Card Reader Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers
Input Interface 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
Output Interface 5 Relay Outputs
RTC Support
Power Supply 12 VDC±15%
Working Temperature -40°F to 158°F
Working Humidity 0% to 90% (No Condensation)
Dimensions 167(L)mm*105(W)mm*30(H)mm
Installation Type Guide Rail Installation



SPECIFICATION
