DS-K1T8105E

Terminal Rozpoznawania twarzy, 5-calowy ekran dotykowy LCD, 0,3 megapikselowy obiektyw szerokokątny, wbudowany czytnik kart EM; Odległość rozpoznawania twarzy: od 0,3 m do 1 m, maks. 1000 miejsc na zdjęcia twarzy; Pojemność karty: 1000 Komunikacja TCP / IP, Wi-Fi, DC 12V / 2A...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

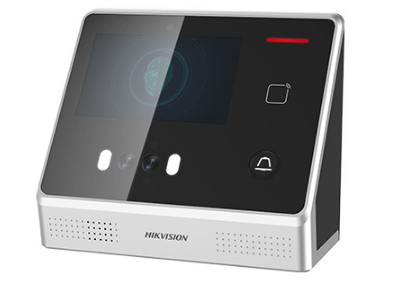

DS-K1T8105 Series
Face Recognition Terminal

DS-K1T8105 series Face Recognition Terminal adopts deep
learning algorithm, which helps to recognize the face faster
and more accurate. It also supports multiple authentication
modes: 1:N face picture match, IC card authentication, etc.
Face Recognition Terminal can apply to the scenarios of
buildings, businesses, and other important areas.

Available Models
• DS-K1T8105E
• DS-K1T8105M

*
E represents the device supports swiping EM card. M represents the device supports swiping Mifare card.

Features
• Wall mounting and base mounting
• 5-inch LCD touch screen to display operation interface, etc.
• 0.3 MP wide-angle lens
• Face recognition distance: 0.3 m to 1 m
• High performance processor with deep learning algorithm
• Max. 1000 face pictures storage
•Multiple authentication modes: authentication by comparing face picture, by swiping card and comparing face picture, by
custom mode, etc.
• Applies face picture data and card data to the device via TCP/IP or uploading them to the device via the USB flash drive
• Stand-alone operation
• Transmits and saves the comparing results and the captured face pictures to the client software or others
• Supports TCP/IP, Wi-Fi , and EHome public network communication
• Connects to external access controller or card reader via Wiegand communication
• Connects to secure door control unit via RS-485 communication to avoid the door opening when the terminal is destroyed
• Watchdog design for protecting the device and ensuring device running properly


• Voice prompt

*
Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security
level, use multiple authentication modes.

Specifications

ModelDS-K1T8105EDS-K1T8105M
Operation SystemLinux
LCD Screen5-inch LCD touch screen; Resolution: 800 x 480
Camera0.3 MP wide-angle lens
Face Picture Capacity1000
Face Recognition
Distance
0.3 m to 1 m

Face Recognition
Accuracy Rate
≥ 99%

1:N Face Recognition
Duration
≤ 1 s/Person

Card Induction
Distance
1 ~ 5 cm

Card Capacity1000
Event Capacity50,000
Communication Mode10/100 Mbps self-adaptive; Wi-Fi, EHome
IndicatorDual-color LED indicator

Interface
RS-485 x 1, Wiegand x 1, USB 2.0 x 1, Alarm Output x 1, Alarm Input x 2, Lock x 1, Door Magnetic
Sensor x 1, Exit Button x 1, Door Bell x 1, Tamper x 1

Power Supply12 VDC
Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity10% to 90% (Non condensing)
Installing MethodBase mounting;​ wall mounting
Dimensions190 mm x 157 mm x 98 mm (7.48" x 3.86" x 6.18")
Application SituationIndoor
