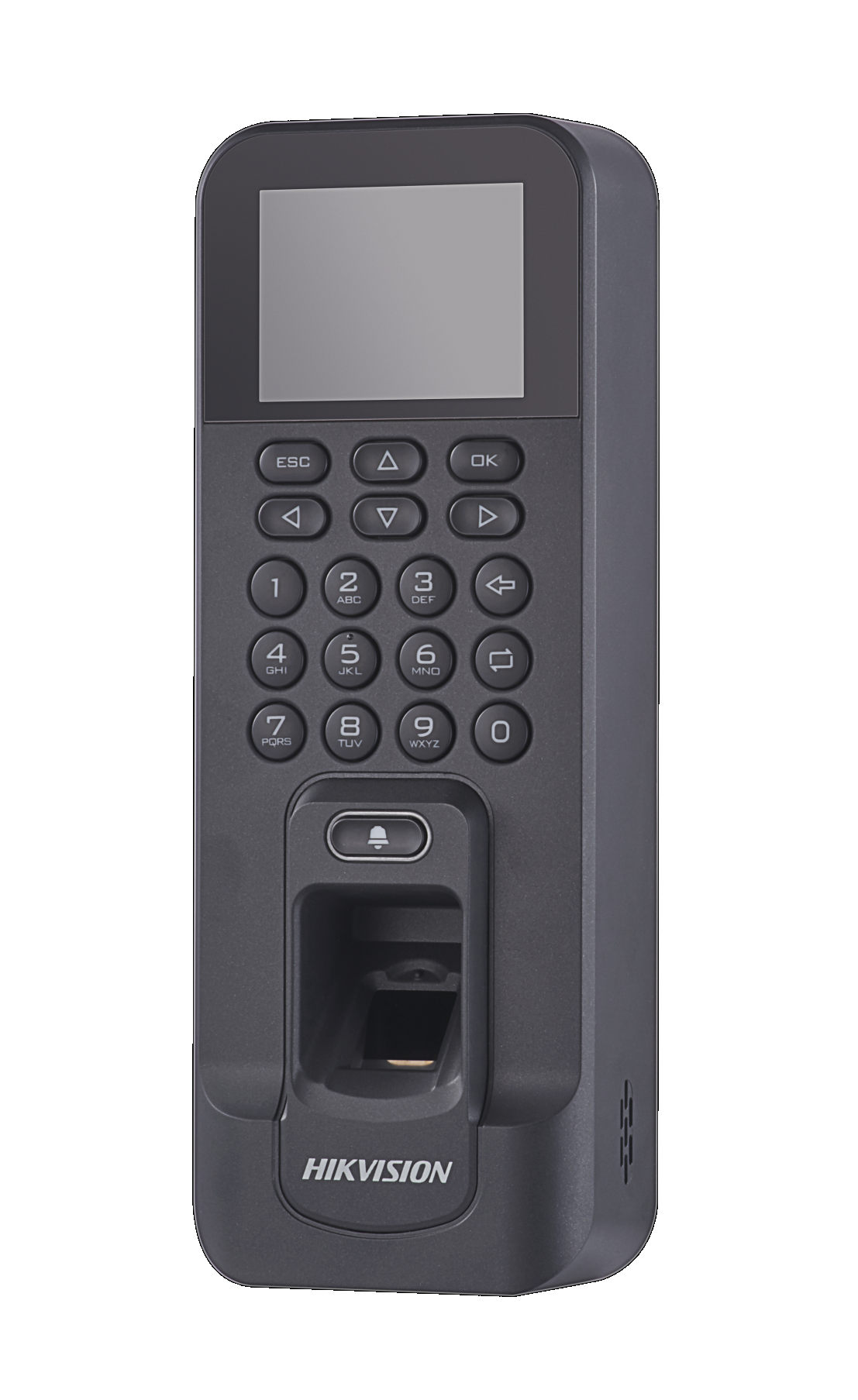

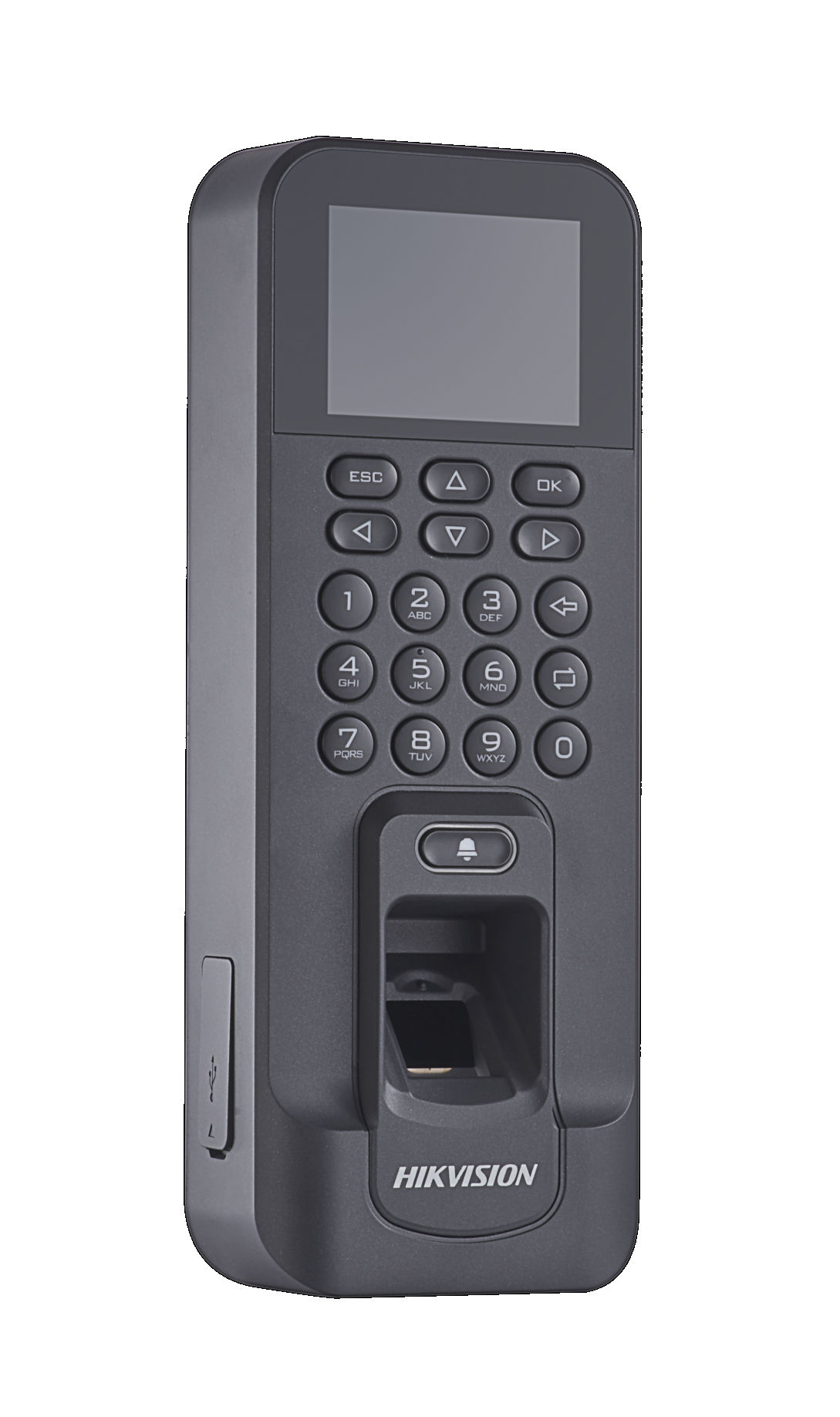

DS-K1T804F

Terminal LCD kontroli dostępu,Pamięć do 3,000 linii papilarnych oraz 100,000 akcji powiązanych;Obsługa kontroli dostępu i funkcji czasu obecności, Optyczny moduł linii papilarnych;Wsparcie: TCP-IP, WIFI, RS485;Wyjście i wejście Wiegand(W26/W34)....

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-K1T804AF

Kod produktu zamiennego: 302915725

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1




DS-K1T804F-1 (Fingerprint)
DS-K1T804EF-1 (EM Card, Fingerprint)
DS-K1T804MF-1 (M1 Card, Fingerprint)







 Integrated management of access control and the attendance
 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
 Supports registering fingerprints from the terminal to software remotely
 Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
 Two attendance authentication modes: authentication by person, authentication by device
 Stand-alone operation: locally add person, card and fingerprint information
 Exports the swiping card data and the attendance report to the USB
 Up to 32 normal shifts and up to 32 man-hour shifts can be configured
 Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be
configured
 Generates the attendance report automatically and view the attendance data easily
 The doorbell can connect the third party bell
 Tamper alarm and duress alarm function
 It is available to connect the external secure door control unit via RS-485 to avoid the door opening
when the terminal is destroyed
 Intelligent English input
 Supports the third party alarm input.


DS-K1T804 Series

Fingerprint Access Control Terminal

AVAILABLE MODELS

MAIN FEATURES


Spec of DS-K1T804 Fingerprint Access Control Terminal www.hikvision.com
2





Model
Parameters
DS-K1T804F-1 DS-K1T804MF-1 DS-K1T804EF-1
Operating System Linux
Storage
Up to 3000 Valid Cards;
Up to 100,000 Event Records;
Up to 150,000 Attendance Records
Fingerprint Capacity Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
Fingerprint Comparing
Mode
1:1 and 1:N, N=3000
Card Reading
Response Duration
< 1 s
Fingerprint
Authentication
Duration
< 1 s
FAR(False Accept
Rate)
≤
FRR (False Rejection
Rate)
≤
Fingerprint Recognizer Optical Fingerprint Recognizer Module
External Card Reader Not Support
Card Reading Mode Not Support
Supports Mifare Card,
Including Cards with
Special Shapes;
Supports Reading Card
in Metal Environment
Supports EM Card,
Including Cards with
Special Shapes;
Supports Reading Card
in Metal Environment
Card Reading Distance Not Support 0 to 4.5cm 0 to 5cm
Keyboard Keyboard (Without Back Light)
Reset Key x 1
Communication
Interface
TCP/IP, RS-485 (For Secure Door Control Unit)
Wi-Fi Not Support
Wiegand Interface Not Support
Transmission Rate
TCP/IP: 10/100Mbps, Self-adaptive;
RS485: 19200 bps-N-8-1
Input Interface Exit Button x 1, Door Sensor x 1
Output Interface Relay (Lock Output) x 1
USB USB 2.0; Type A
LCD Screen 2.4-inch (320 x 240 LCD-TFT Display Screen)
Audio 1 Buzzer and 1 Loudspeaker
LED Indicator Power/Status (Red/Green)
Power Supply 12 VDC/2 A
Working Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity 10% to 90% (No Condensing)

SPECIFICATIONS

Spec of DS-K1T804 Fingerprint Access Control Terminal www.hikvision.com
3

Water-Proof IP42
Temper-Proof Support
Appearance Color Black (Included), Gold (Optional), Silver (Optional), White (Optional)
Dimension (L x W x H) 205 mm x 76.5 mm x 37 mm (8.07" x 3.01" x 1.46")

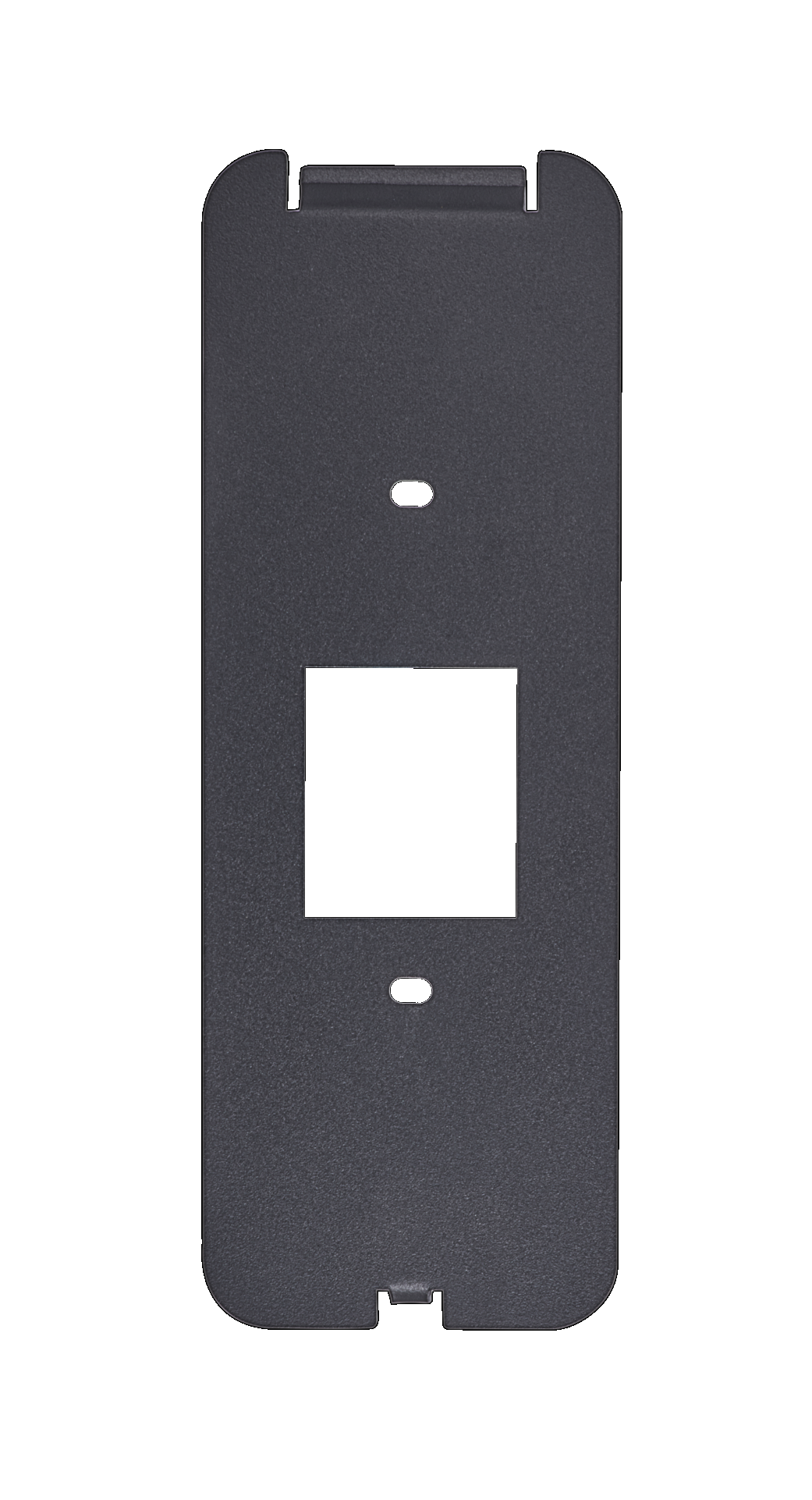

Installation Surface Mounting, Metal Door Mounting, Installation with Gang Box







Black Gold Silver White



Appearance
