DS-K1T804BMF

Terminal LCD kontroli dostępu,Wbudowany czytnik kart Mifare Pamięć do 3000 kart, Pamięć do 3,000 linii papilarnych oraz 100,000 akcji powiązanych; Wsparcie: TCP-IP, WIFI Wyjście i wejście Wiegand(W26/W34) ISUP5.0, ISAPI...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

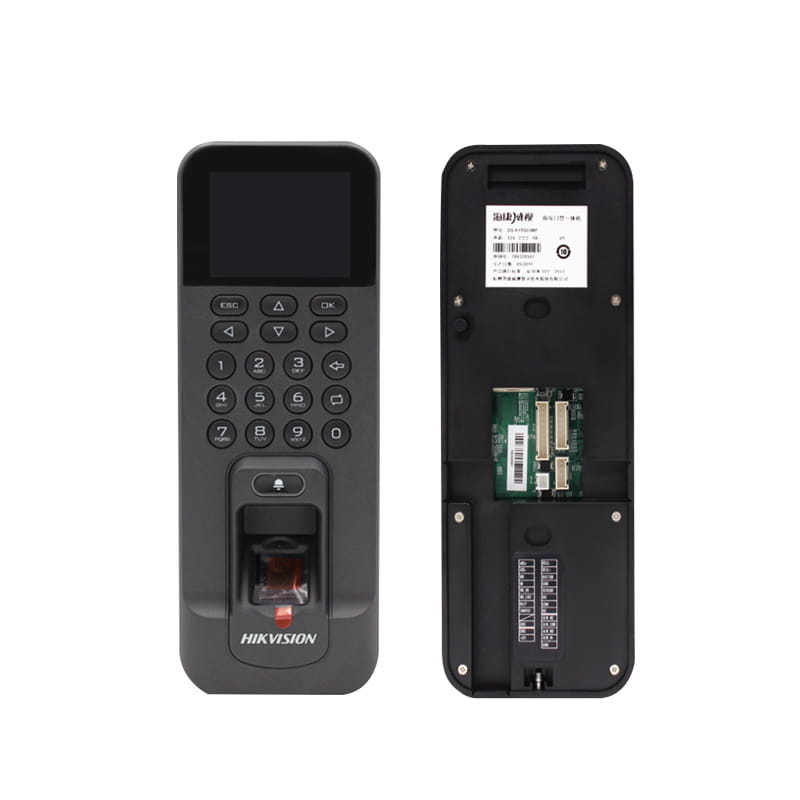

DS-K1T804BMF
Fingerprint Access Control Terminal







 3,000 fingerprints, 3,000 cards and 100,000 events storage


 Built-in card reader for Mifare1 card


 Communication via TCP/TP and Wi-Fi


 Supports Wiegand interface


 Alarm input and output interface


 ISUP5.0，ISAPI







 Specification
System
Operation system Linux
Display
Size 2.4-inch
Resolution 320 x 240
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface
Network interface 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
IO input 1
IO output 1
TAMPER 1
USB 1
Capacity
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 4.5 cm
Card reading duration ＜ 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
Fingerprint False Acceptance Rate (FAR) ≤ 0.001 %
Fingerprint False Rejection Rate (FRR) ≤ 0.01 %
General
Indicator Power/status (red/green)
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Dimensions 205 mm x 76.5 mm x 37 mm (8.07" x 3.01" x 1.46")
Installation Surface mounting
Language
English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic,
Thai, Turkish, Indonesian, and Ukrainian






 Dimension















 Available Model
DS-K1T804BMF
