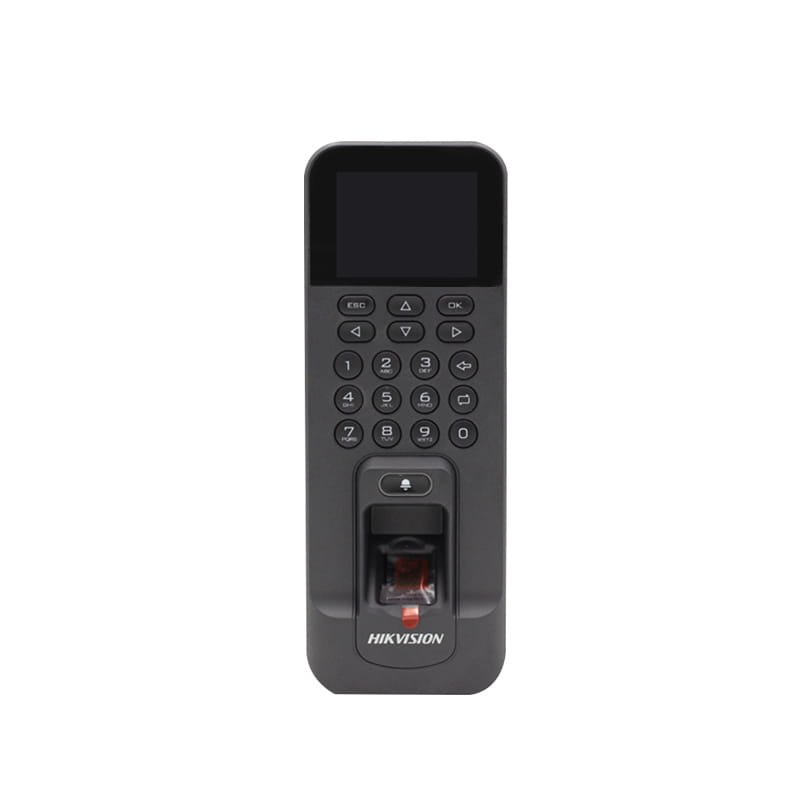

DS-K1T804AF
Opis
Terminal LCD kontroli dostępu, Pamięć do 3,000 linii papilarnych oraz 100,000 akcji powiązanych; Obsługa kontroli dostępu i funkcji czasu obecności, Optyczny moduł linii papilarnych; Wsparcie: TCP-IP, WIFI, RS485; Wyjście i wejście Wiegand(W26/W34)....
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Produkt zamienny: DS-K1T804BF
Kod produktu zamiennego: 302918019
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-K1T804AF
Fingerprint Access Control Terminal
Integrated management of access control and the attendance
2.4-inch LCD screen to display the time, the date, and the fingerprint authentication results
Transmission modes of wired network (TCP/IP) and wireless network
Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
Different authentication types can be configured according to different situations, authentication via PIN code is also
supported
Stand-alone operation: locally adds person, and fingerprints information
Exports the attendance report to the USB flash drive
Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
Generates the attendance report automatically
Secure door control unit accessing via RS-485 connection
Supports fingerprint card reader (DS-K1201 series) accessing
Tampering detection, unlocking overtime alarm, and so on
Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai,
Turkish, Indonesian, and Ukrainian
Accurate data and time display provided by built-in electronic clock
Check the device running status via the Watchdog. When exception status occurs, the system will reboot
automatically
Data can be permanently saved after power-off
Supports transmitting data via Wi-Fi
Operates via Hik-Connect mobile client
Supports ISAPI protocol and ISUP 5.0 protocol
Specification
System
Operation system Linux
Screen
Size 2.4-inch
Resolution 320 x 240
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface
Network interface 1
RS-485 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
IO input 1
IO output 1
TAMPER 1
USB 1
Capacity
Fingerprint capacity 3000
Event capacity 100,000
Authentication
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration < 1 s
Fingerprint False Acceptance
Rate (FAR)
≤ 0.001 %
Fingerprint False Rejection Rate
(FRR)
≤ 0.01 %
Others
Indicator Power/status (red/green)
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color Black (included), gold (optional), silver (optional), white (optional)
Dimensions 205 mm x 76.5 mm x 37 mm (8.07" x 3.01" x 1.46")
Installation Surface mounting
Dimension
Available Model
DS-K1T804AF
