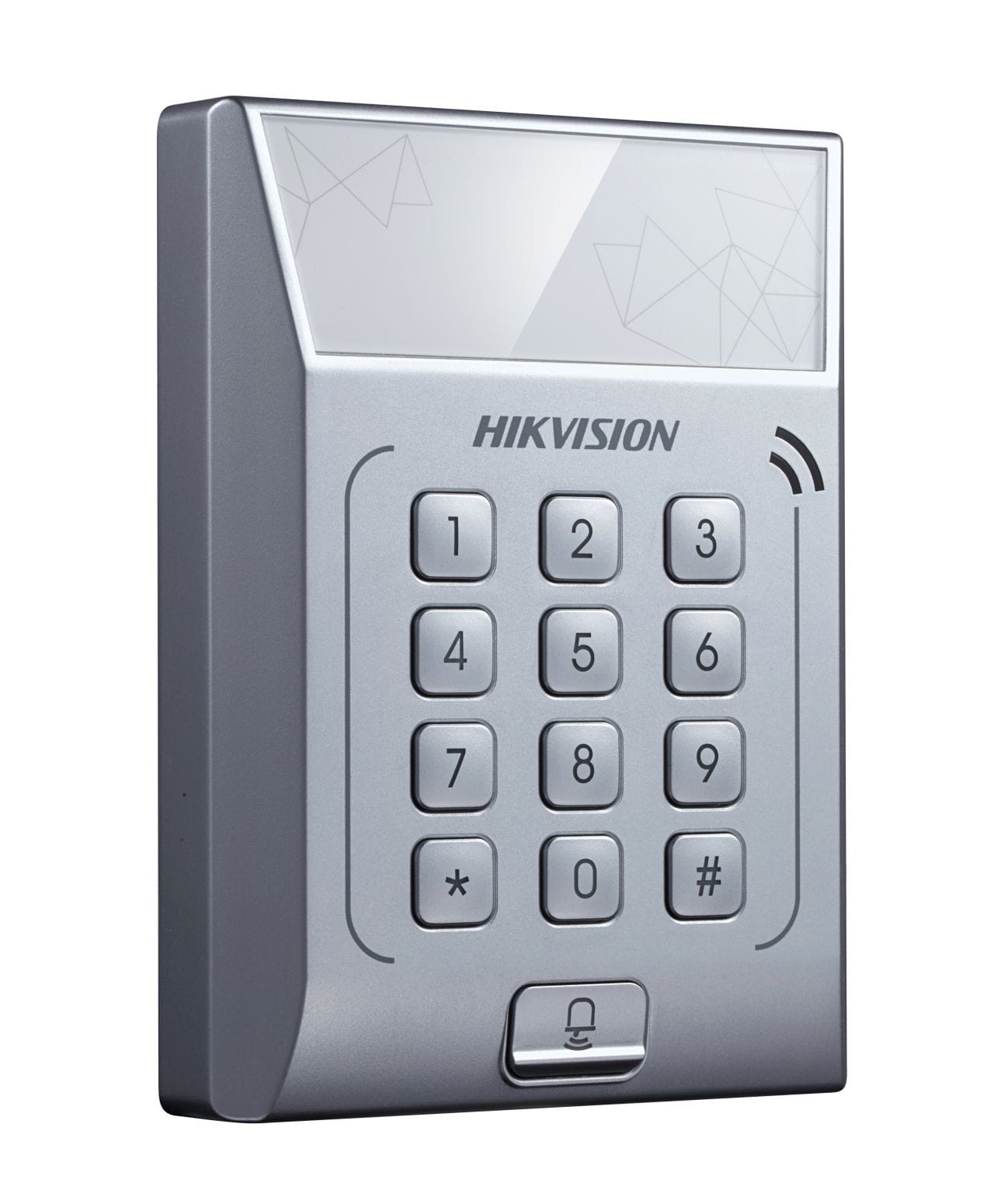

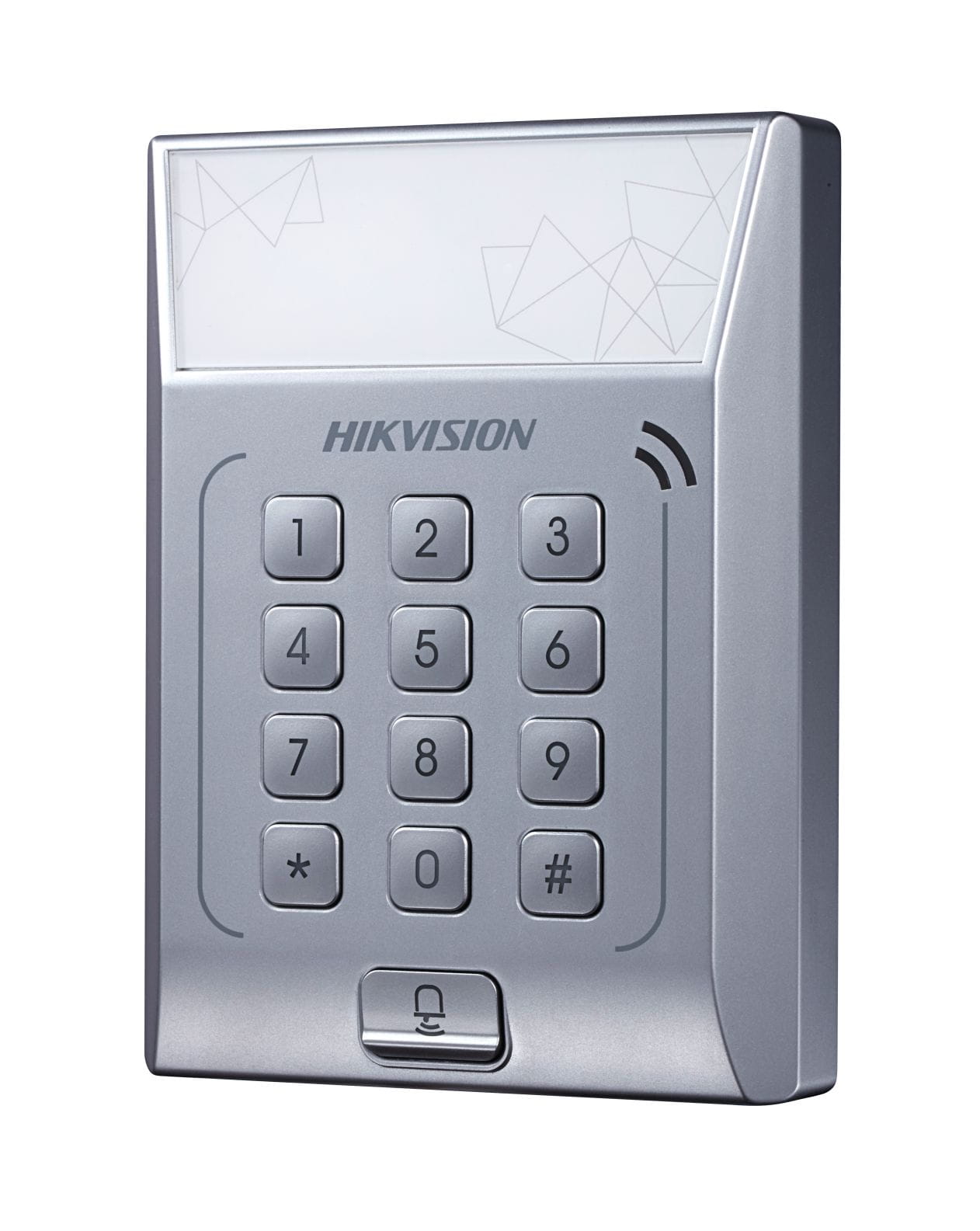

DS-K1T801M
Opis
Terminal samodzielny kontroli dostępu, czytnik kart Mifare, Max. 3000 numerów kart, TCP / IP, klawiatura 12- przyciskowa plus przycisk dzwonka, DC 12V / 1A...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
1
DS-K1T801E (EM Card Only)
DS-K1T801M (M1 Card Only)
32-bit processor
Stand-alone operation management settings
Max. 3000 card number settings
Supports authentication method of card and card & password
Opens door via card password if the authentication method is card
Adds up to 3000 card passwords
Supports exit button
Supports ID card, and ID card number reading (DS-K1T801E)
Supports Mifare card, Mifare card number reading (DS-K1T801M)
Watchdog design
Data can be permanently saved after power-off
Access Control Terminal
MAIN FEATURES
DS-K1T801 Series
AVAILABLE MODELS
Spec of DS-K1T801 Series Access Control Terminal www.hikvision.com
2
Model
Parameters
DS-K1T801E DS-K1T801M
Processor 32bit
Storage Storage for 3000 Legal Card Information
Card type EM Card Mifare Card
Input interface Exit Button x 1, Door Sensor x 1
Output interface Doorbell x 1, E-lock Output x 1
Key board 13 Keys (0-9, , *, #, Doorbell)
LED Indicator Power/Status
Voice prompt Beeper
Working voltage 12V DC
Working current 0.17A (without Load)
Working Temperature -20°C to 65°C (-4° F to 149° F)
Working Humidity 10% to 90% (No Condensing)
Dimension 126.5(L)mm x 94.5(W)mm x 24(H)mm (4.98" x 3.72" x 0.94")
SPECIFICATIONS
