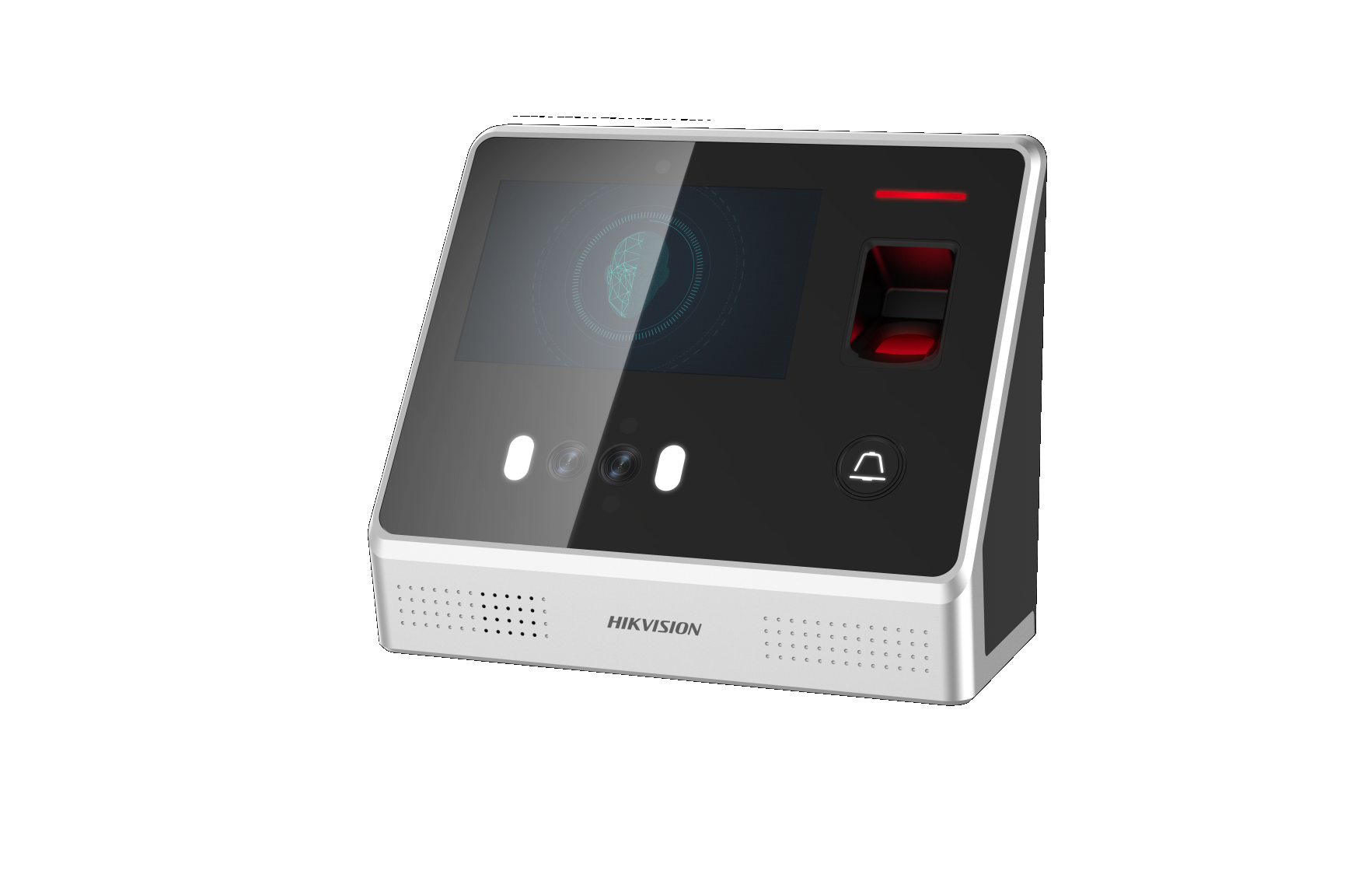

DS-K1T605MF

Terminal kontroli dostępu do rozpoznawania twarzy, 5-calowy ekran dotykowy LCD, wbudowany czytnik kart Mifare oraz odcisków palców; Odległość rozpoznawania twarzy: od 0,3 m do 1 m, wykrywanie twarzy na żywo, maks. 2000 zdjęć w pamięci;kamera 2MPx, Komunikacja TCP / IP, Wi-Fi, zasilanie DC 12V / 2A...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1


DS-K1T605 series Face Recognition Terminal adopts deep
learning algorithm, which helps to recognize the face faster
and more accurate. It also supports multiple authentication
modes: 1:N face picture match, IC card authentication, etc.
Face Recognition Terminal can apply to the scenarios of
buildings, businesses, financial industries, and other
important areas.





DS-K1T605E
DS-K1T605EF
DS-K1T605M
DS-K1T605MF
Note: F represents that the device contains optical fingerprint module. E represents the device
supports swiping EM card. M represents the device supports swiping Mifare card.



 Wall mounting and base mounting
 5-inch LCD touch screen to display operation interface, etc.
 0.3 MP wide-angle lens
 Face recognition distance: 0.3m to 1m
 Live face detection
 High performance processor with deep learning algorithm
 Max. 2000 face pictures and Max. 5000 fingerprints storage (Only models with F support
fingerprint function)
 Multiple authentication modes: authentication by comparing face picture, by swiping card and
comparing face picture, by custom mode, etc.
 Accurate and fast face recognition function. The face recognition duration is no more than 0.6s
per person and the face recognition accuracy rate is more than 99%
 Applies face picture data and card data to the device via TCP/IP or uploading them to the device

Face Recognition Terminal

MAIN FEATURES

DS-K1T605 Series

AVAILABLE MODELS


Spec of DS-K1T605 Series Face Recognition Terminal www.hikvision.com
2

via the USB flash drive
 Stand-alone operation
 Transmits and saves the comparing results and the captured face pictures to the client software
or others
 Supports TCP/IP, Wi-Fi , and EHome public network communication
 Connects to one external card reader via RS-485 communication and Wiegand communication
 Connects to external access controller via Wiegand communication
 Connects to secure door control unit to avoid the door opening when the terminal is destroyed
 Watchdog design for protecting the device and ensuring device running properly.




Model DS-K1T605E DS-K1T605M DS-K1T605EF DS-K1T605MF
LCD Screen 5-inch LCD Touch Screen; Resolution: 800 x 480
Camera 0.3 MP ; Live Face Detection Function
Fingerprint Capacity / 5000
Face Picture
Capacity
2000
Face Recognition
Distance
0.3 m to 1 m
Face Recognition
Accuracy Rate
≥ 99%
1:N Face Recognition
Duration
≤0.5 s/Person
Card Capacity 5000
Event Capacity 100,000
Communication
Mode
TCP/IP; Wi-Fi; EHome Protocol; RS-485; Wiegand 26/34
Input Interface Alarm Input x 2, USB 2.0 x 1, Door Magnetic Sensor x 1, Exit Button x 1
Output Interface Doorbell x 1, Lock x 1, Alarm Output x 1
Power Supply 12 VDC/2 A
Working
Temperature
-10°C to +40°C (14°F to +104°F)
Working Humidity 10% to 90% (Non Condensing)
Installing Method Base Mounting; Wall Mounting
Dimensions 190mm x 157mm x 98mm (7.48” x 3.86” x 6.18")
Application
Situation
Indoor

SPECIFICATIONS
