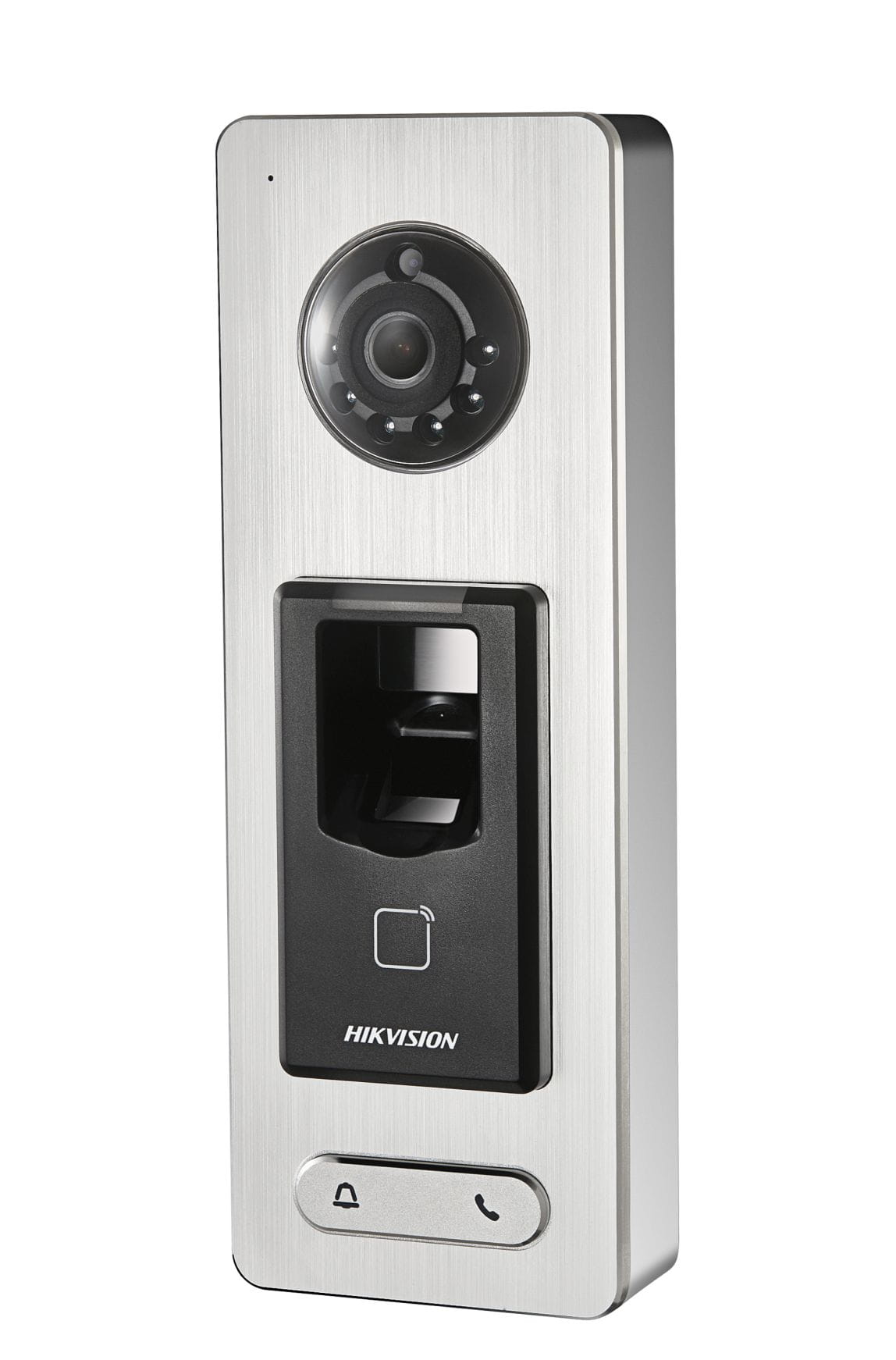

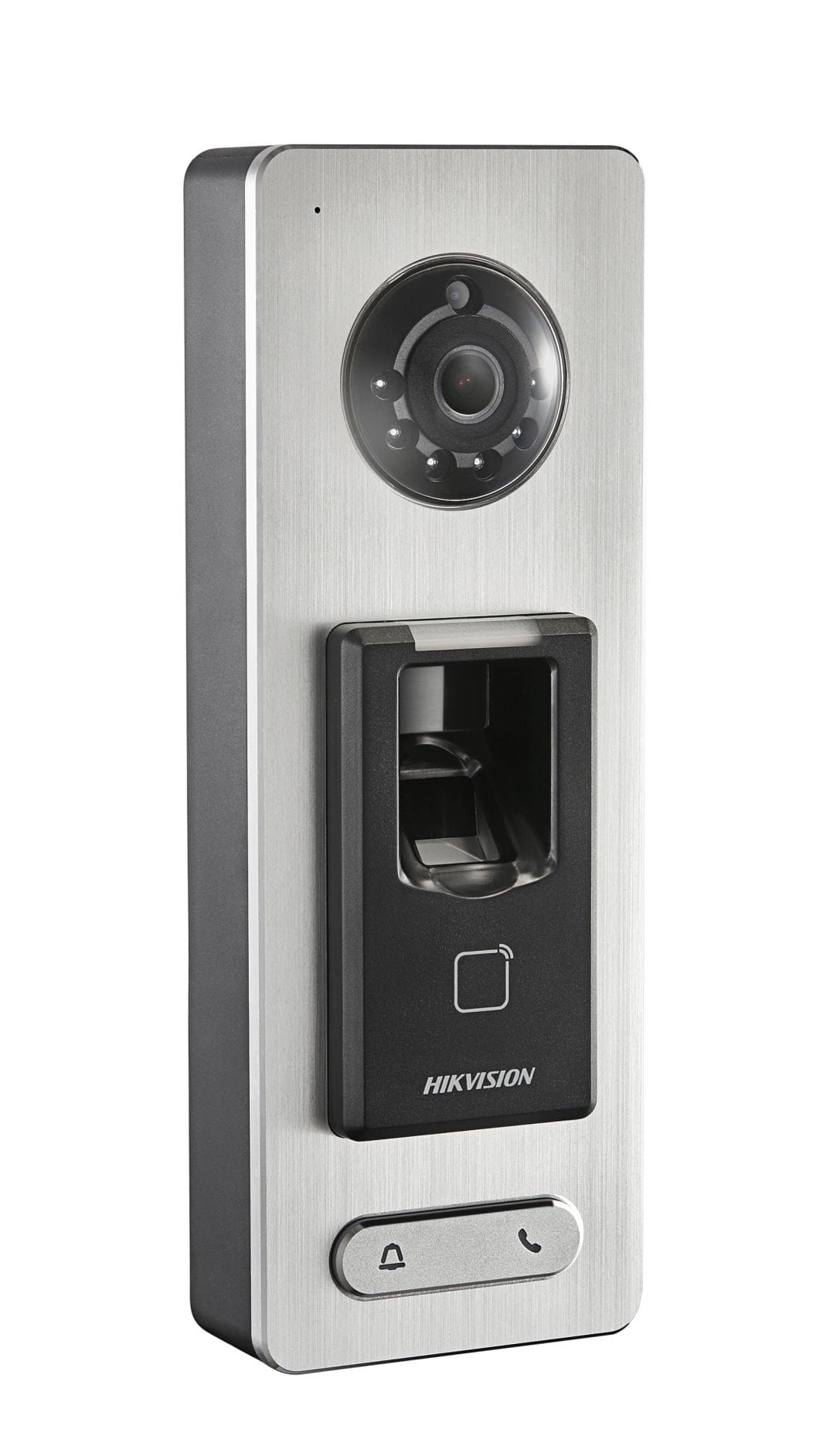

DS-K1T501SF

Terminal video kontroli dostępu, wbudowany czytnik kart Mifare, 2 mpx kamera; Pamięć do 50,000 kart, 3,000 linii papilarnych i 200,000 akcji powiązanych;Wspiera interkom z dwukierunkowym audio, zdalny podgląd na żywo, możliwość nagrywania na NVR, Optyczny moduł linii papilarnych;Komunikacja: TCP/IP, RS-485, WIFI; Komunikacja: RS-485, Wiegand(W26/W34);Wspiera karty SD, IP65, DC 12V/1A....

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-K1T502DBFWX-C

Kod produktu zamiennego: 302918809

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1


DS-K1T501SF is a kind of video access control terminal, which is
equipped with HD camera(2 MP/1080p) and fingerprint
recognition module (supporting 1:1 mode and 1:N mode). It
supports multiple advanced technologies including fingerprint
recognition, face detection, smart card recognition, two-way
audio, remote live view, picture capture, video recording through
NVR, and so on. It also supports multiple authentications
including card, fingerprint, card and fingerprint, etc.



Recommended Fingerprint Recorder Model to Use Cooperatively: DS-K1F820-F


 Brushed metal surface
 Communication via TCP/IP and Wi-Fi
 Supports EHome protocol for public
network communication
 Face detection and picture capturing
function implemented by built-in camera
(1080P/2MP and IR light, optional)
 Built-in Micro SD card slot; Supports
inserting Micro SD card (Max. 128G) and
saving captured pictures and recorded
videos to the memory card
 QR code authentication; Generates QR
code via iVMS-4200 client software or
other systems
 Two way-audio
 Open door remotely via iVMS-4200
client software or other systems
 Max. 50,000 cards No., Max. 200,000
access control event records and Max.
5000 fingerprints storage
 Supports Mifare card reading
 Multiple authentication modes: QR code,
card, fingerprint, card + fingerprint, card
+ password, fingerprint + password, card
+ fingerprint + password, and so on
 Working as a card reader, and supports
Wiegand interface and RS-485 interface
for accessing the controller
 RS-485 communication for connecting
external card reader
 Connects the external secure door
control unit via RS-485 to avoid the door
opening when the terminal is destroyed
 Protection level: IP65
 Voice prompt for the results of
authentication by card

DS-K1T501SF

Video Access Control Terminal

MAIN FEATURES

DS-K1T501SF

AVAILABLE MODELS


Spec of DS-K1T501SF Video Access Control Terminal www.hikvision.com
2

 Tampering detection, unlocking overtime
alarm, invalid card swiping over times
alarm, duress card alarm, and so on.

Model DS-K1T501SF
Processor 32 Bit High-performance Processor
Camera 2MP/1080P, IR Light
Audio
Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB)
Audio Output: Build-in Loudspeaker (1W)
Card Capability 50,000
Record Capability 200,000
Fingerprint Module Optical Fingerprint Recognition Module
Fingerprint Capability 5000
1:N Fingerprint Recognition
Speed
≤ 1
FAR (False Acceptance Rate) ≤ 0.001 %
FRR (False Rejection Rate) ≤ 0.01 %
Card Reading Mode Mifare Card
Induction Distance > 2cm
Communication Mode
Terminal Mode: TCP/IP and RS-485
Card Reader Mode: Wiegand (26/34) and RS-485
Input Interface
Doorbell Button x 1, Door Magnetic Sensor x 1, Alarm Input x 2,
Tamper Alarm x 1, Exit Button x 1
Output Interface Lock Relay x 1, Alarm Output (Doorbell) x 1
Video Storage Record and Save Video through NVR or Micro SD Card
Micro SD Card Max. 128G
Protection Level IP65
Power Supply 12 VDC/1 A
Working Current Max. 600 mA
Working Temperature -40°C to 70°C (-40°F to 158°F)
Working Humidity 10% to 90% (No Condensing)
Mounting Wall Mounting
Dimension 218mm x 78mm x 41mm (8.58" x 3.07" x 1.61")


SPECIFICATION
