DS-K1T500S
Opis
Terminal video kontroli dostępu, wbudowany czytnik kart Mifare, 2 mpx kamera; Pamięć do 50,000 kart i 200,000 akcji powiązanych;Wspiera interkom z dwukierunkowym audio, zdalny podgląd na żywo, możliwość nagrywania na NVR, Optyczny moduł linii papilarnych;Komunikacja: TCP/IP, RS-485, WIFI; Komunikacja: RS-485, Wiegand(W26/W34);Wspiera karty SD, IP65, DC 12V/1A....
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Produkt zamienny: DS-K1T502DBWX-C
Kod produktu zamiennego: 302918805
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
1

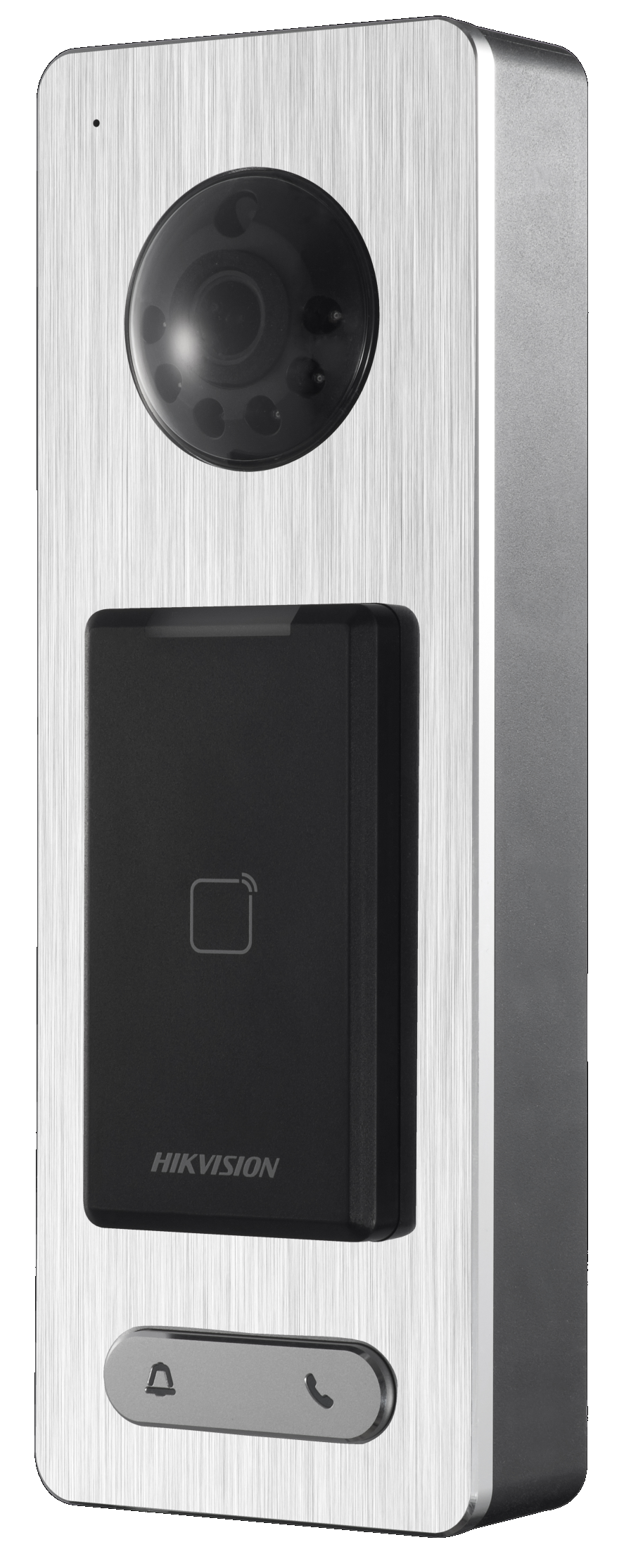

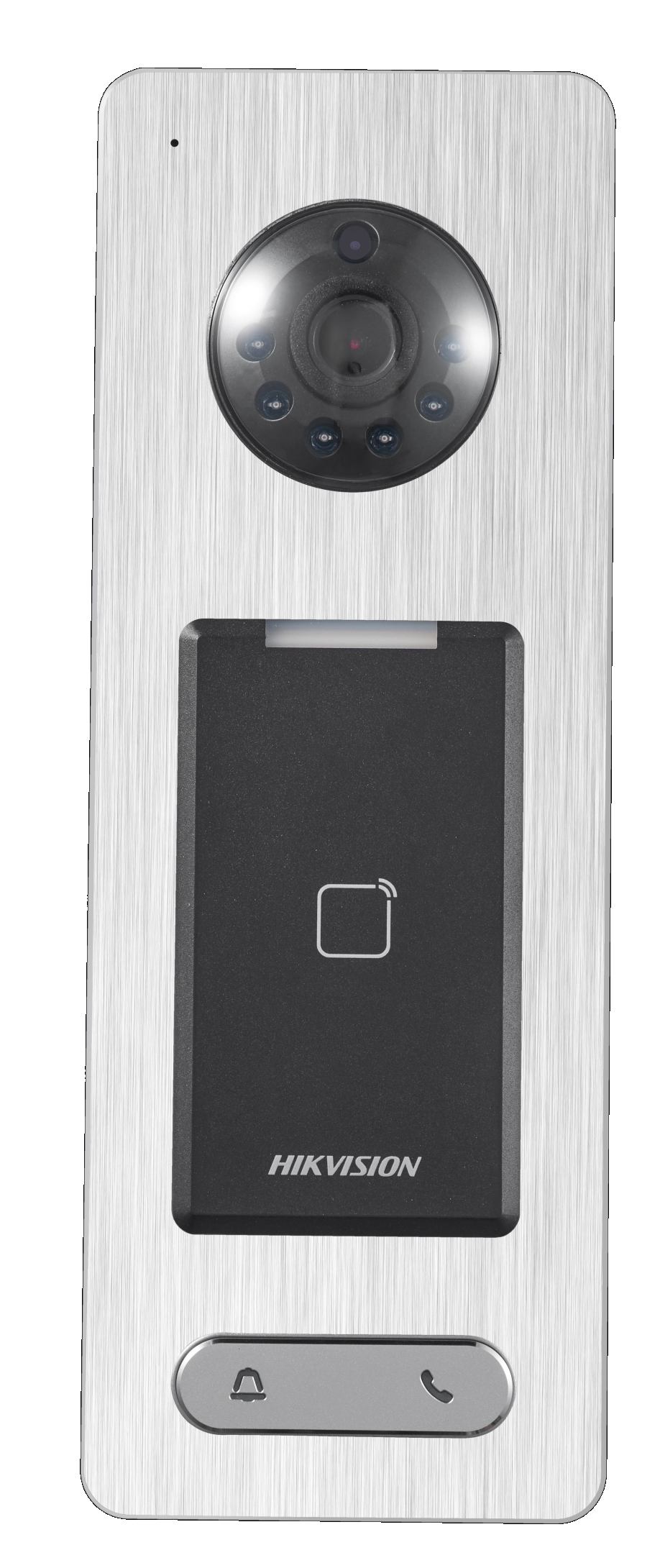

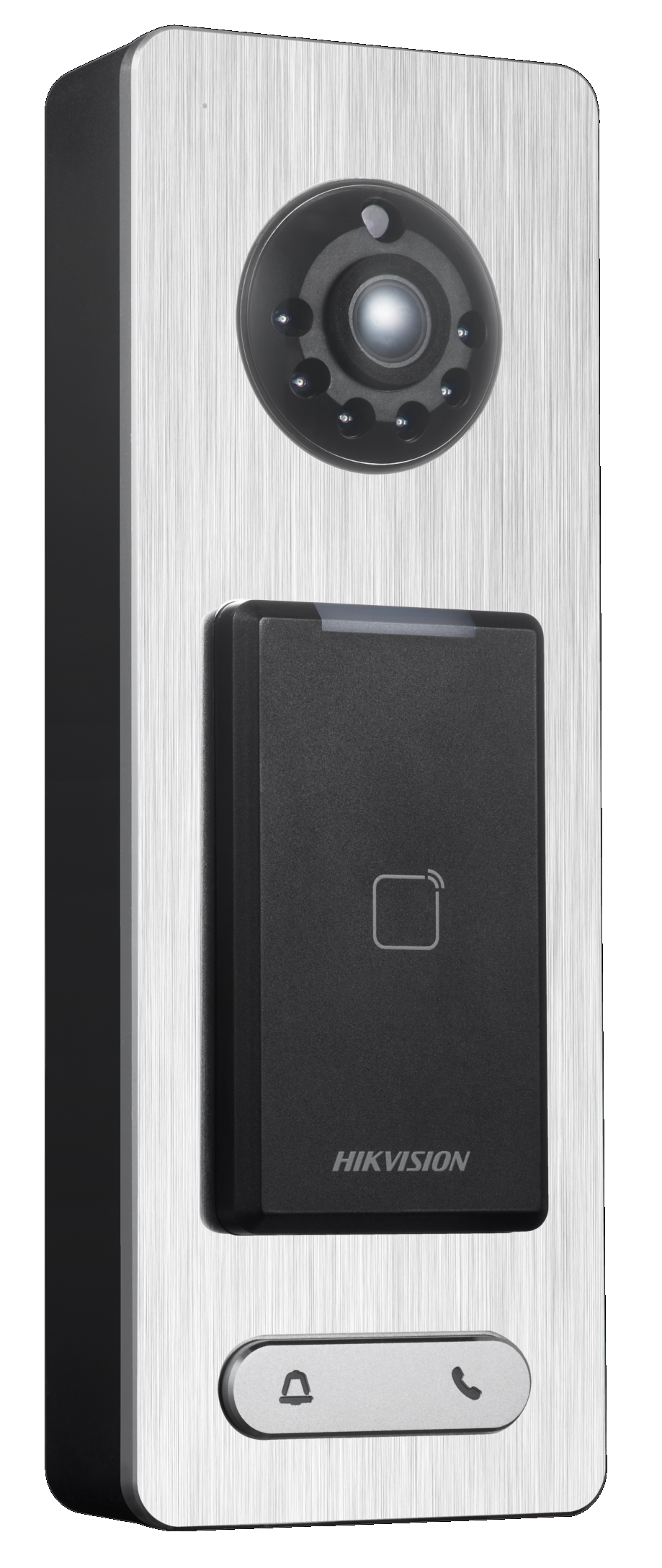

DS-K1T500S is a kind of video access control terminal, which is
equipped with HD camera(2 MP/1080p). It supports multiple
advanced technologies including face detection, smart card
recognition, two-way audio, remote live view, picture capture,
video recording through NVR, and so on.
Brushed metal surface
Communication via TCP/IP and Wi-Fi
Supports EHome protocol for public
network communication
Face detection and picture capturing
function implemented by built-in camera
(1080P/2MP and IR light, optional)
Built-in Micro SD card slot; Supports
inserting Micro SD card (Max. 128G) and
saving captured pictures and recorded
videos to the memory card
QR code authentication; Generates QR
code via iVMS-4200 client software or
other systems
Two way-audio
Open door remotely via iVMS-4200
client software or other systems
Max. 50,000 cards No., Max. 200,000
access control event records
Supports Mifare card reading
Multiple authentication modes: QR code,
card, card + password
Working as a card reader, and supports
Wiegand interface and RS-485 interface
for accessing the controller
RS-485 communication for connecting
external card reader
Connects the external secure door
control unit via RS-485 to avoid the door
opening when the terminal is destroyed
Protection level: IP65
Voice prompt for the results of
authentication by card
Tampering detection, unlocking overtime
alarm, invalid card swiping over times
alarm, duress card alarm, and so on.
DS-K1T500S (M1 Card Only)
Video Access Control Terminal
MAIN FEATURES
DS-K1T500S
AVAILABLE MODELS
Spec of DS-K1T500S Video Access Control Terminal www.hikvision.com
2
Model DS-K1T500S
Processor 32 Bit High-performance Processor
Camera 2MP/1080P, IR Light
Audio
Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB)
Audio Output: Build-in Loudspeaker (1W)
Card Capability 50,000
Record Capability 200,000
Card Reading Mode Mifare Card
Induction Distance ≥ 2cm
Communication Mode
Terminal Mode: TCP/IP and RS-485
Card Reader Mode: Wiegand (26/34) and RS-485
Input Interface
Doorbell Button x 1, Door Magnetic Sensor x 1, Alarm Input x 2,
Tamper Alarm x 1, Exit Button x 1
Output Interface Lock Relay x 1, Alarm Output (Doorbell) x 1
Video Storage Record and Save Video through NVR or Micro SD Card
Micro SD Card Max. 128G
Protection Level IP65
Power Supply 12 VDC/1 A
Working Current Max. 600 mA
Working Temperature -40°C to 70°C (-40°F to 158°F)
Working Humidity 10% to 90% (No Condensing)
Mounting Wall Mounting
Dimension 218mm x 78mm x 41mm (8.58" x 3.07" x 1.61")
SPECIFICATION
