DS-K1F820-F
Opis
Czytnik linii papilarnych do DS-K1T201, DS-K1201, DS-K1T804, DS-K1A802 and DS-K1T501 Podłączenie USB plug and play, USB 2.0;...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
1
DS-K1F820-F
508 dpi high-definition
Supports the function of PnP (plug and play)
Optical fingerprint sensor designed with scratch-resistant material
Applies to Windows XP, Windows7, and Windows 10 operation system
Supports configuration and operation via client software
USB 2.0 communication standard for data transmission
Power over USB
Composite fingerprint images from triple collection
Model DS-K1F820-F
CPU 32bit MCU
Fingerprint Reader Optical, Red Backlight
Resolution 508 dpi
Fingerprint Template Size 256 x 288 (pixel)
Communication Interface USB 2.0
Operating Voltage 5 VDC, 200mA
Working Temperature -30°C to +70°C (-22°F to 158°F)
Working Humidity 20% to 80%
Operation System Windows XP, Windows7, and Windows 10
Dimension (L*W*H) 100mm x 48mm x 35mm (3.9”x 1.9” x 1.4”
MAIN FEATURES
DS-K1F820-F
Optical Fingerprint Recorder
SPECIFICATION
AVAILABLE MODELS

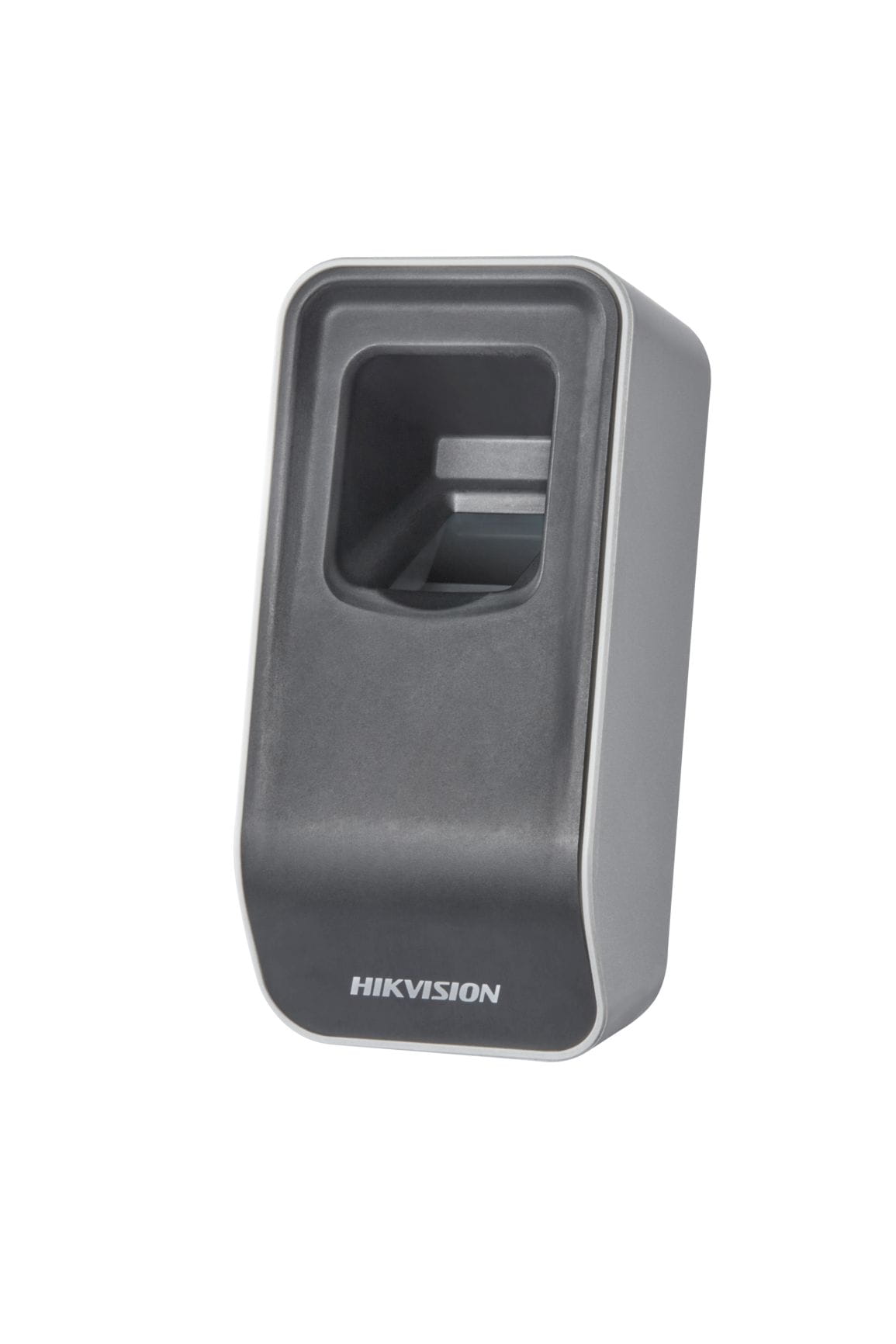

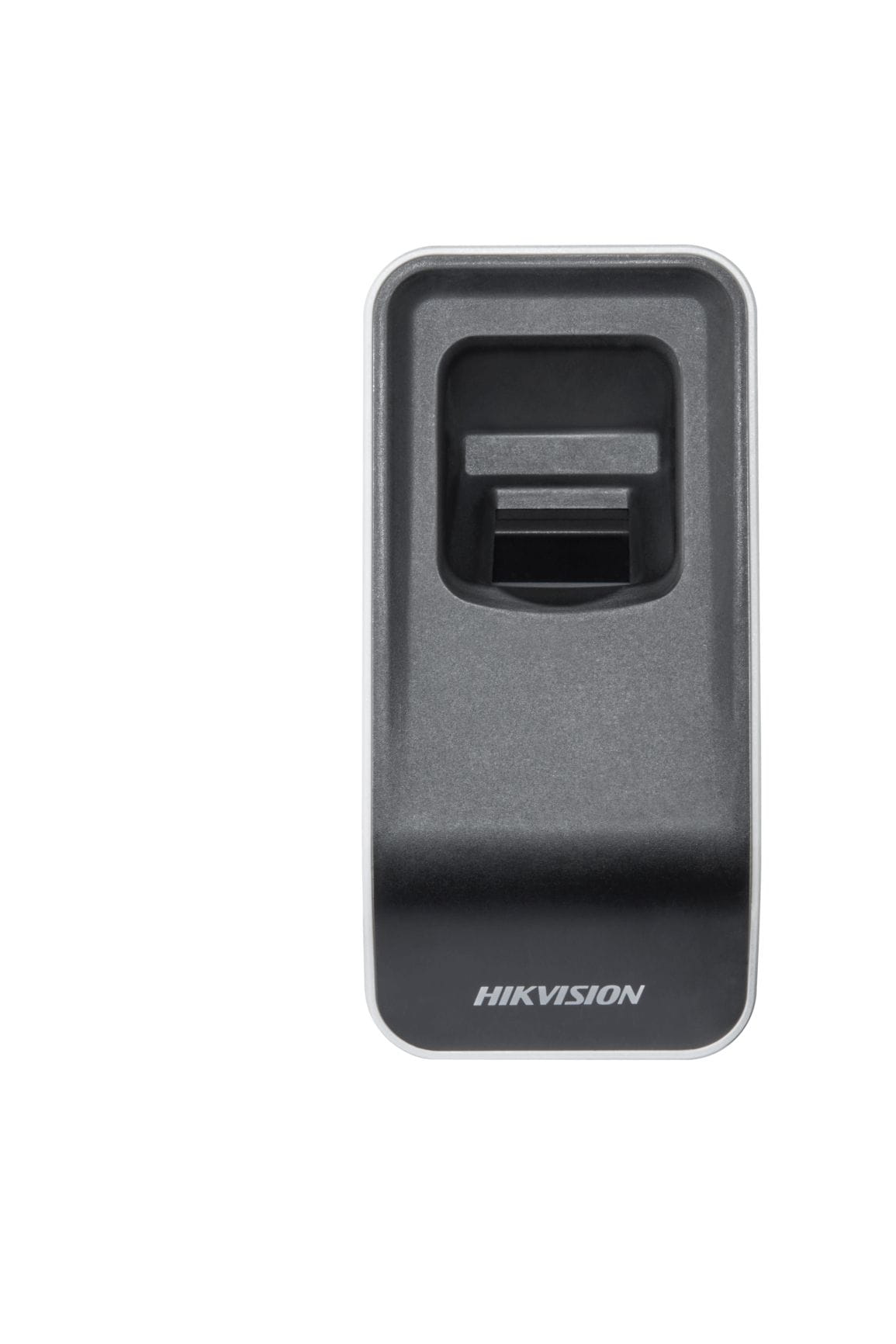

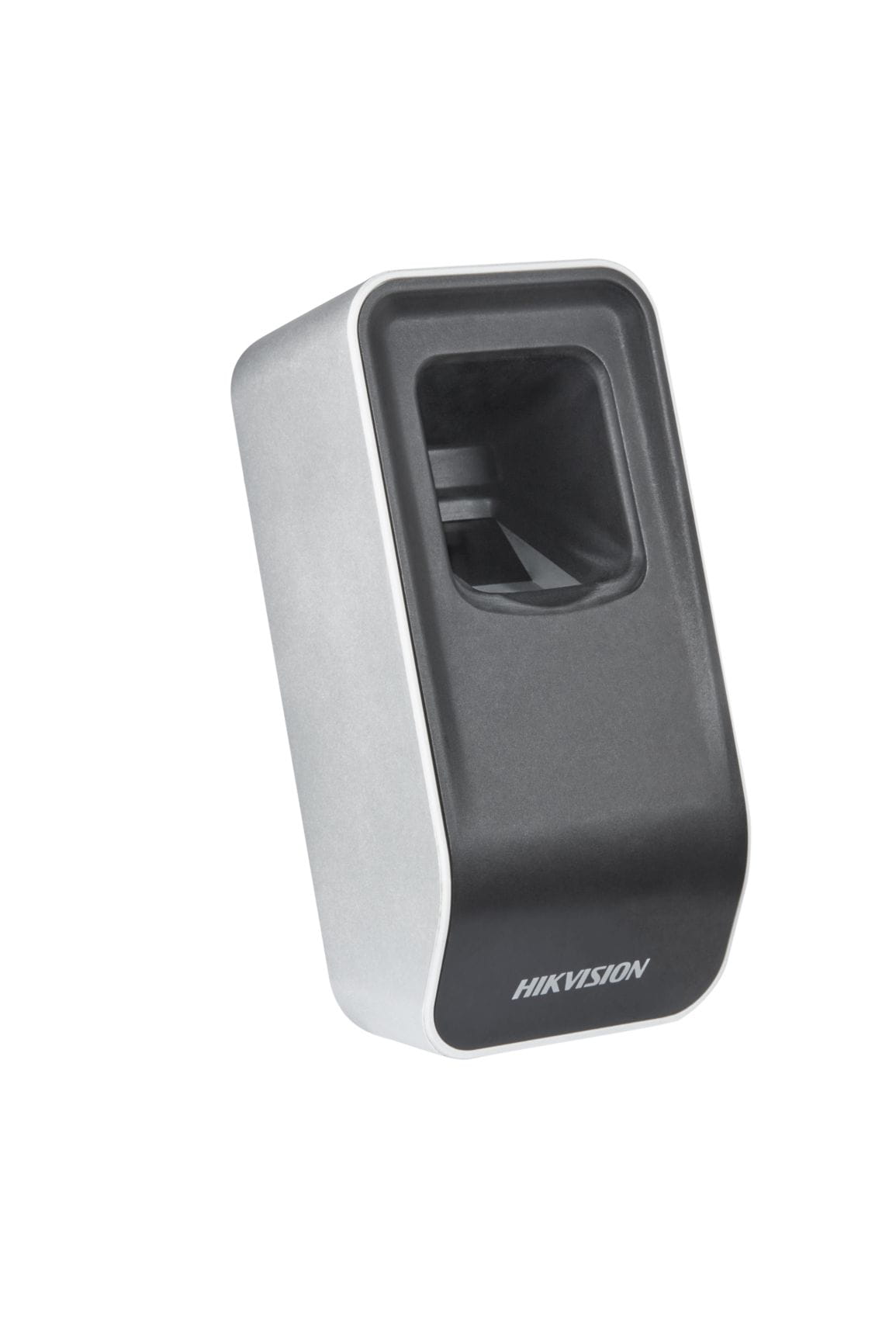

DS-K1F820-F Fingerprint Recorder supports living fingerprint
registration, and identification. It can connect to the computer directly
via USB interface, and upload/download fingerprint characteristic data
and image to the controller/ module. It supports the function of
checking the completeness of registered fingerprint templates.
