DS-K1F180-D8E
Opis
Stacja kart USB typu plug and play;Wspiera różne standardy (Mifare i Unique)....
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa ![PDF](/upload/images/icons/icon_pdf.jpg)
Tekstowa zawartość karty katalogowej PDF:

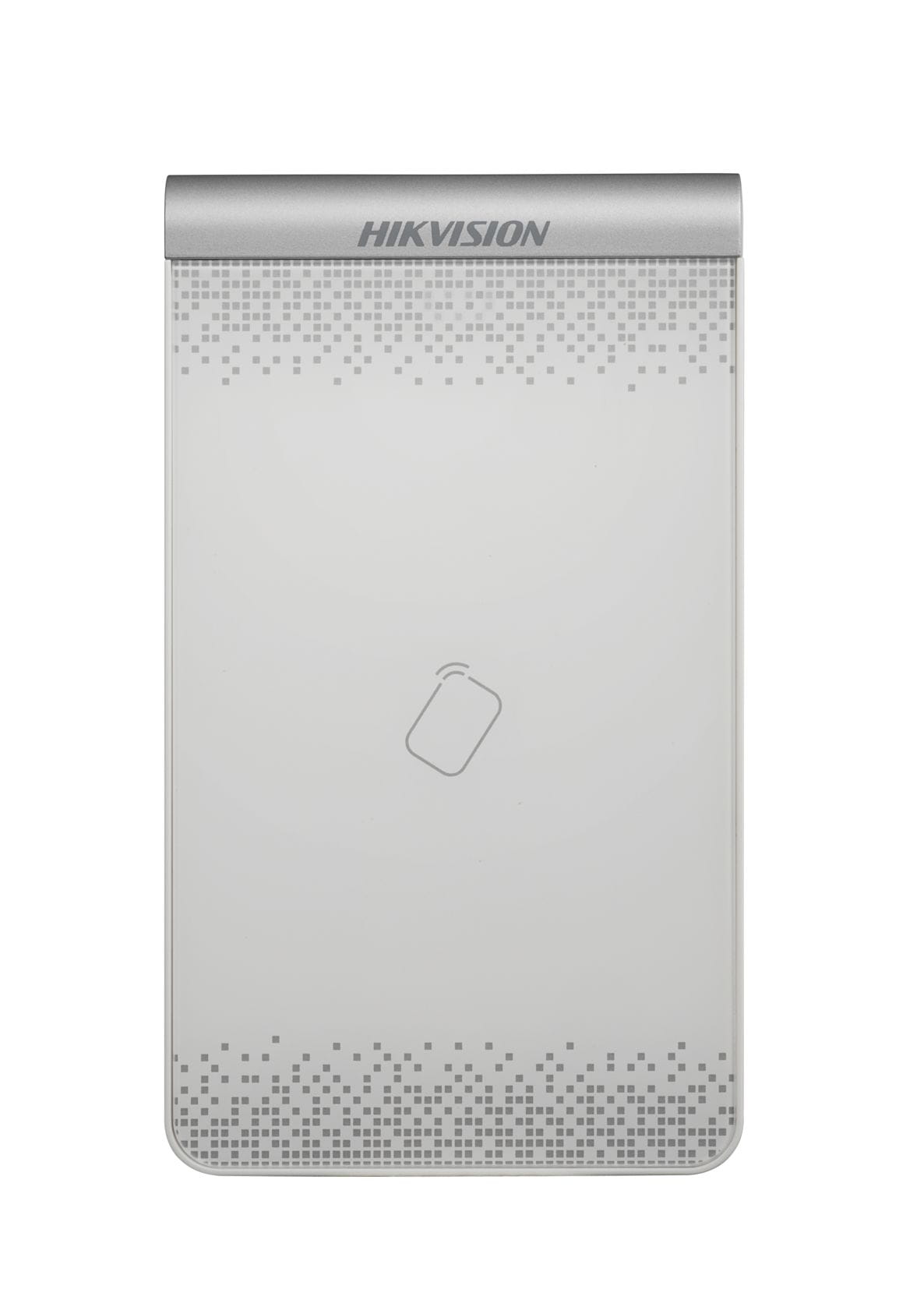

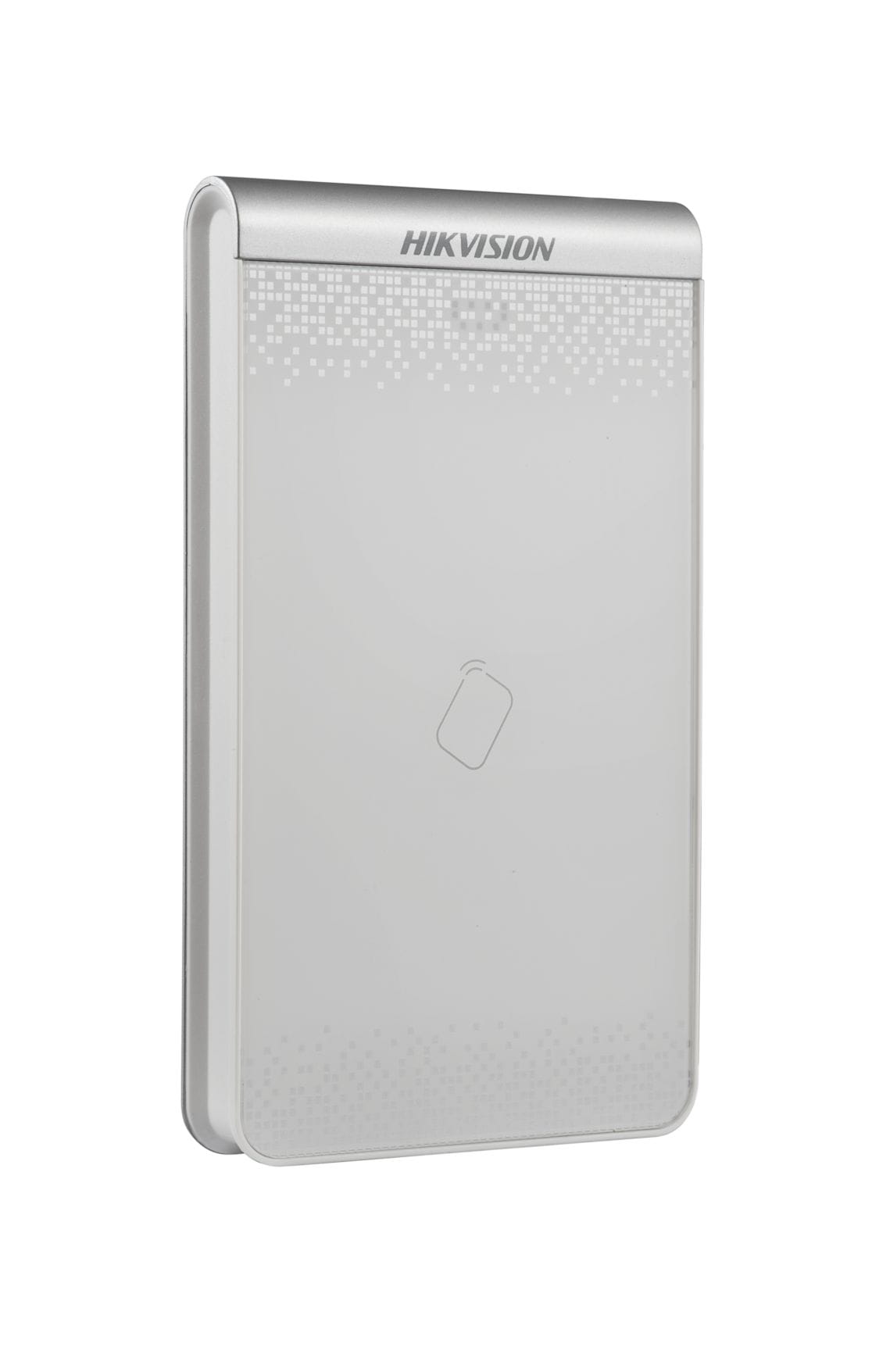

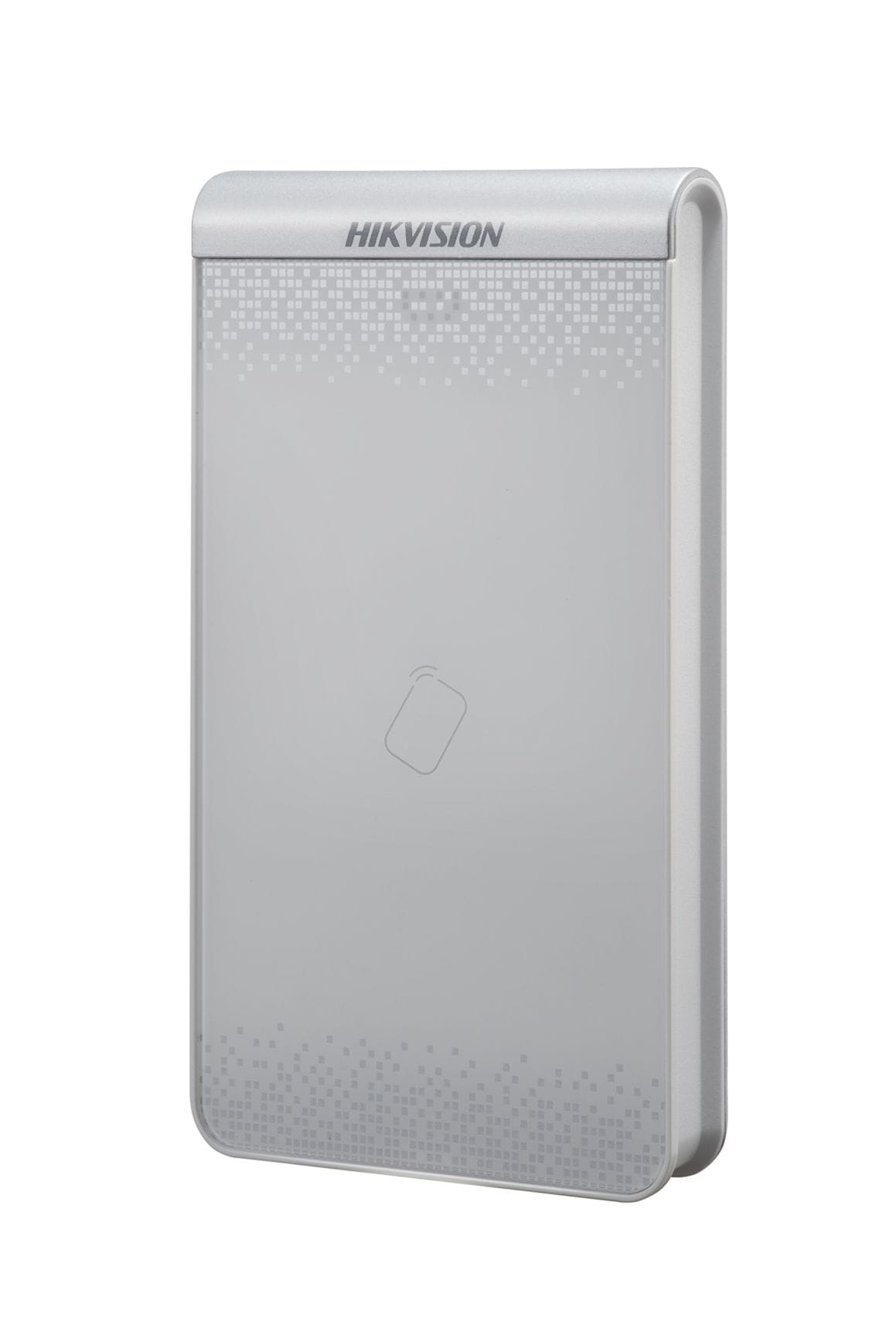

DS-K1F100-D8E Card Enrollment Station www.hikvision.com
1
D8E is a non-touch IC card enrollment station, used as a necessary
non-touch card test machine by card issuers, chip suppliers, and
testing organizations. The size of its PSAM card slot equals to that of
two SIM cards. The card enrollment station can connect to PC or other
devices via USB interface. No-driver USB is applied to facilitate the
installation and operation of the card enrollment station. The card
enrollment station can be widely applied in various industries and
situations, such as business, telecommunication, post, insurance,
medical treatment, bank, gasoline station, parking lot, and so on.
DS-K1F100-D8E
Plug-and-play USB with no-driver technology
2 PSAM cassettes (standard configuration), same size with 2 SIM cards in total
Supports on-line upgrade
Supports various card types (Mifare card, CPU, PSAM, ID card, and EM card) with the card reading frequency
13.56 MHz and 125 KHz
Well-defined API
Adopt high-level encryption algorithm to ensure the security for data communication
Provides general interface library supporting various operation systems and language development
platform
Supports online upgrading and updating
MAIN FEATURES
DS-K1F100-D8E
Card Enrollment Station
AVAILABLE MODEL
DS-K1F100-D8E Card Enrollment Station www.hikvision.com
2
Model DS-K1F100-D8E
Card Reading Frequency 13.56MHz and 125KHz
Card Type Standard IC Card, CPU Card, and ID (EM) Card
PSAM Card Cassettes 2 PSAM Cassettes
Protocol ISO 14443 Type A/B Standard and ISO 7816 Standard
Interface USB 2.0; Driver Free
LED Light LED Indicator: Indicates Power and the Communication Status
Working Temperature From -20°C to 65°C (4° F to 149° F)
Working Current 200mA
Dimensions 117mmx67.5mmx14.3mm
Weight 87.6g
System Support Windows, WinXP, Win7 and Win8
SPECIFICATION
