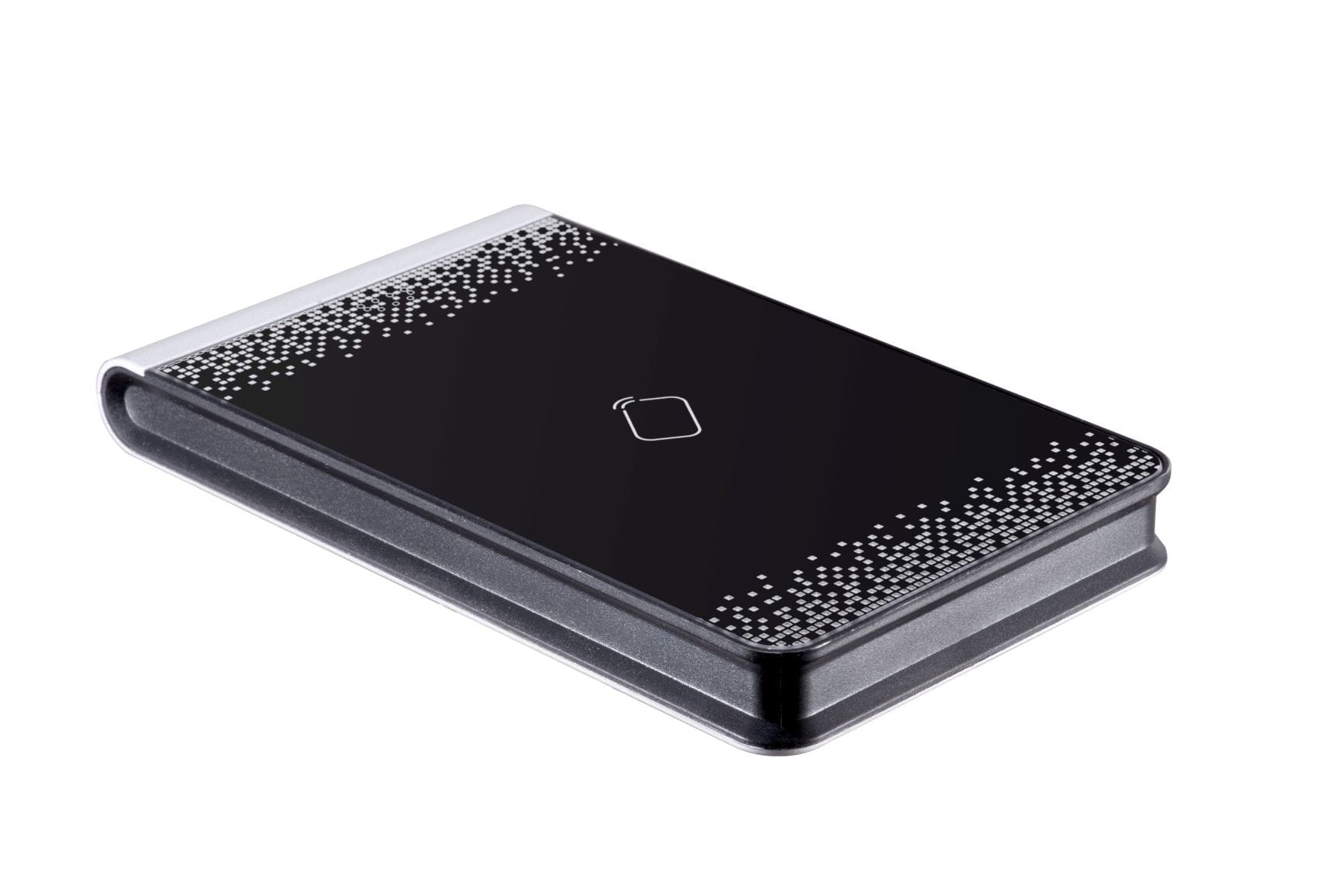

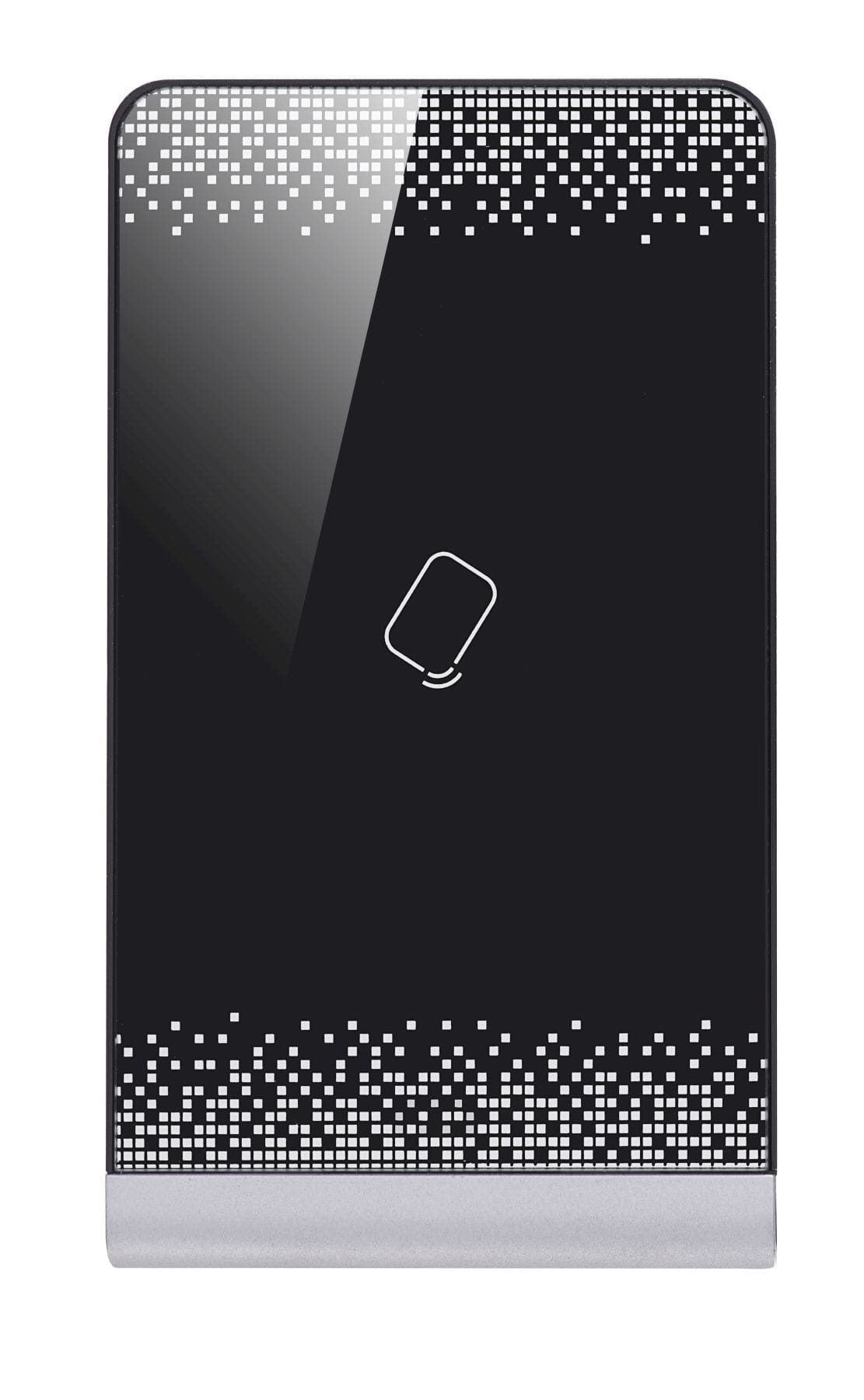

DS-K1F100-D8E

Stacja kart USB typu plug and play;Wspiera różne standardy (Mifare i Unique)....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1

D8E is a non-touch IC card enrollment station, used as a necessary
non-touch card test machine by card issuers, chip suppliers, and
testing organizations. The size of its SAM card slot equals to that of
two SIM cards. The card enrollment station can connect to PC or other
devices via USB interface. No-driver USB is applied to facilitate the
installation and operation of the card enrollment station. The card
enrollment station can be widely applied in various industries and
situations, such as business, telecommunication, post, insurance,
medical treatment, bank, gasoline station, parking lot, and so on.


DS-K1F100-D8E



 Supports ISO 14443 Type A/B and ISO 7816 Standard
 Reading frequencies are 13.56MHZ and 125KHZ
 Supports Standard IC Card, CPU Card , ID (EM) Card and so on
 Connect with PC via a plug-and-play USB 2.0 interface
 2 SAM card slots for encryption using
 Adopts high-level encryption algorithm to ensure the security for data communication
 Provides general interface library supporting various operation systems and language development platform
 Supports online upgrade.

MAIN FEATURES

DS-K1F100-D8E

Card Enrollment Station

AVAILABLE MODEL


DS-K1F100-D8E Card Enrollment Station www.hikvision.com

2



Model DS-K1F100-D8E
Card Reading Frequency 13.56MHz and 125KHz
Card Type Standard IC Card, CPU Card, and ID (EM) Card
SAM Card Slot Size of Two SIM Card Slot
Protocol ISO 14443 Type A/B Standard and ISO 7816 Standard
Interface USB 2.0; Driver Free
LED Light LED Indicator: Indicates Power and the Communication Status
Working Temperature From -20°C to 65°C
Working Current 200mA
Dimensions 117mmx67.5mmx14.3mm
Weight 87.6g
System Support Windows, WinXP, Win7 and Win8


SPECIFICATION
