DS-K1107AMK
Opis
Czytnik kart Mifare z klawiaturą , obsługuje protokół RS485 i Wiegand (W26 / W34); OSDP tamper antysabotażowy, Odporny na kurz, IP 64, montaz do puszek 86 i 120....
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

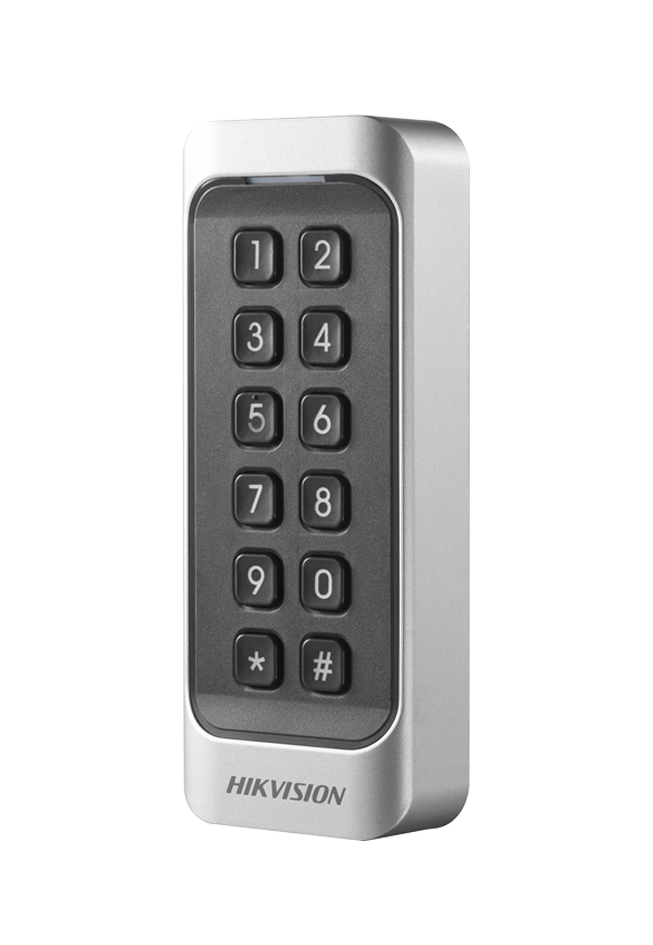

DS-K1107AMK
Card Reader
Equipped with the 32-bit high-speed processor
RS-485 and Wiegand (W26/W34) protocol, and OSDP
protocol
Build-in Mifare card reading module (Frequency: 13.56
MHz).
Supports tampering alarm
Built-in buzzer for identifying the reading status
Online upgrade function
Watchdog design for repairing itself in case that exception
occurs, to ensure the long service life of the reader
Specification
System
Processor 32-bit
Interface
TAMPER Support
RS-485 Support
Wiegand Support (set via DIP switch)
Authentication
Card reading frequency 13.56 MHz
Card reading distance ≤50 mm (≤1.97")
General
Indicator Power indicator, status indicator
Power supply 12 VDC
Power consumption ≤2 W
Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
Working humidity 10% to 90% (Non Condensing)
Protective level IP65
Dimensions 115 mm x 44 mm x 22 mm (4.53'' x 1.73'' x 0.87'')
Installation Wall Mounting with Screws; Do Not Support Gang Box
Keypad Keypad with 12 Keys (0~9, *, #)
Buzzer Support
Available Model
DS-K1107AMK
