DS-K1106M

Czytnik kart Mifare bez klawiatury , obsługuje protokół RS485 i Wiegand (w26, w34);tamper antysabotażowy, instalacja wewnętrzna, montaz do puszek 86.Głównie do podłączenia do sterownika windy....

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1


DS-K1106 series card reader is a kind of high-performance product,
with a 32 bit high-speed processor. It communicates with access
controller via either RS-485 protocol or Wiegand protocol. And a
build-in tamper-proof module helps to protect card reader from
malicious damage. As to the physical appearance, the PC+ABS
material makes water proof and dust proof possible in poor
environment.

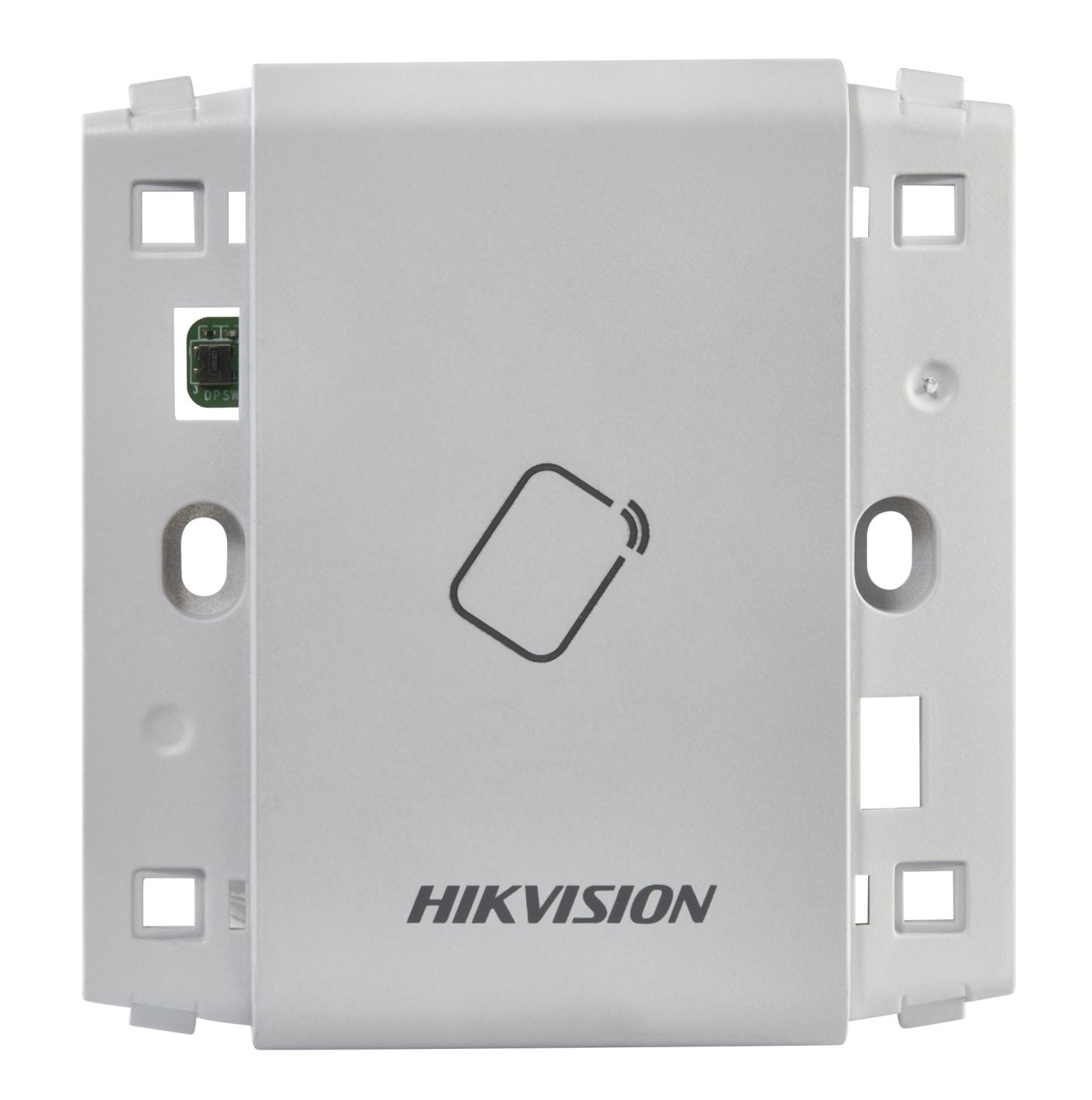

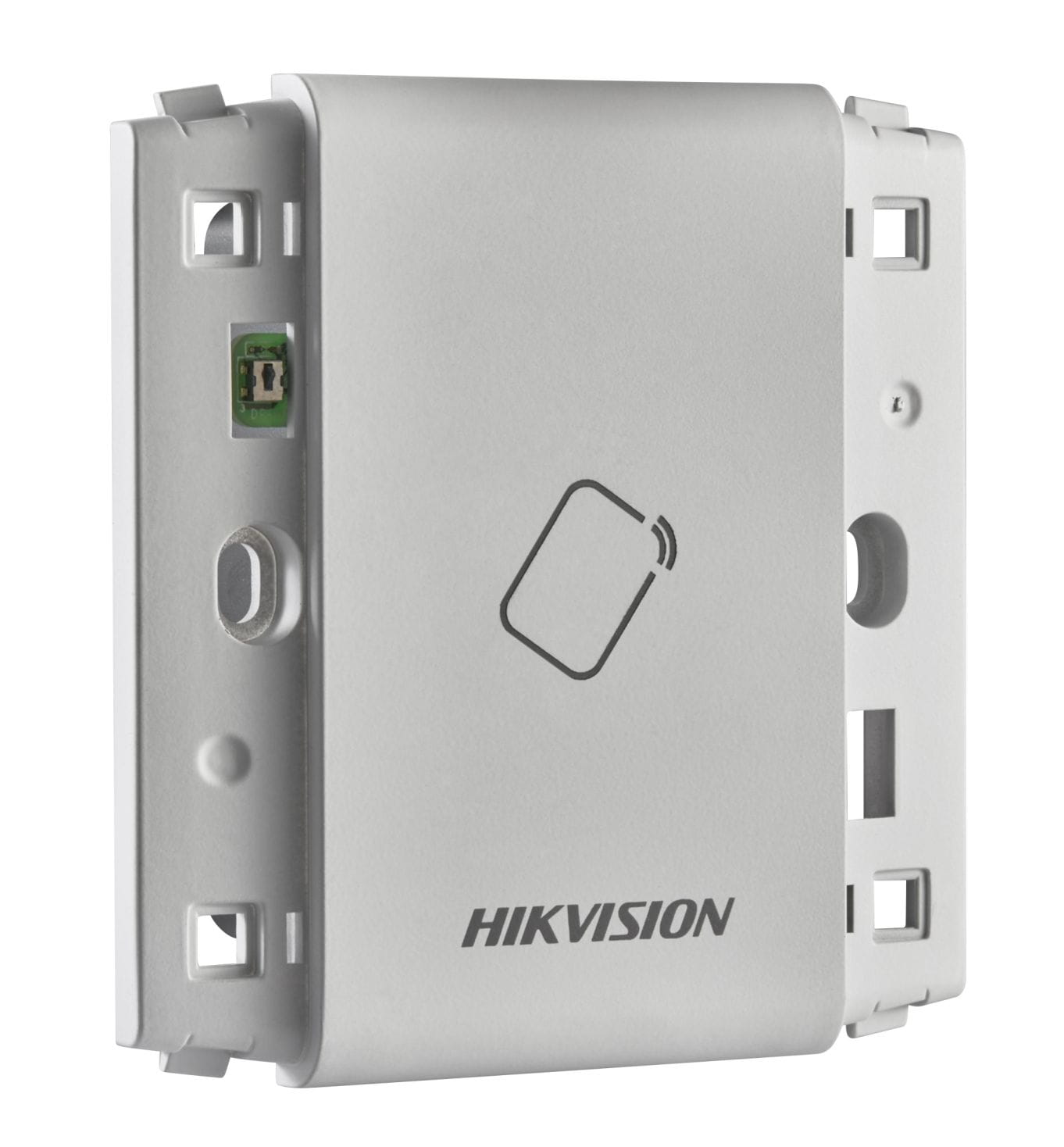

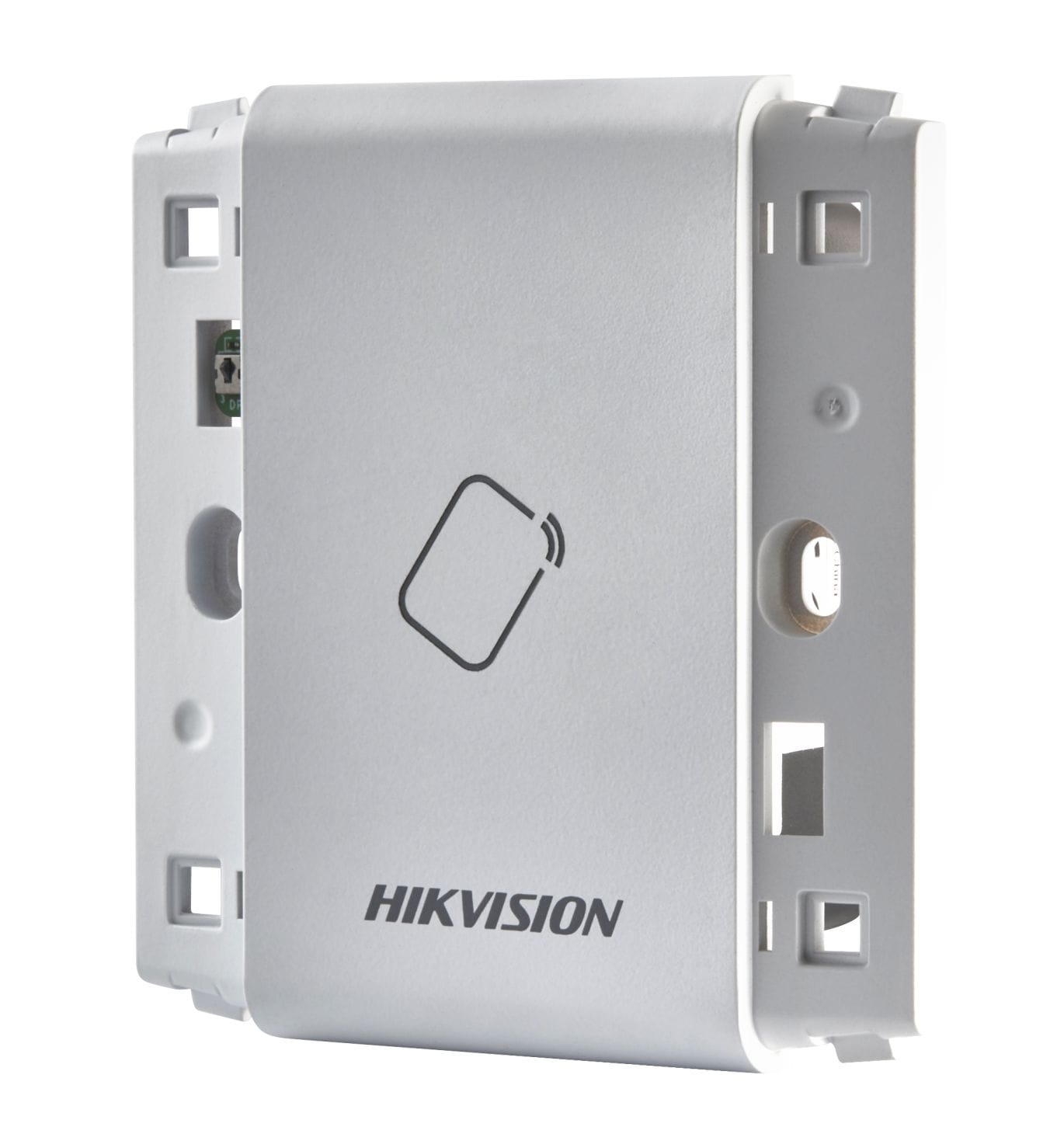

DS-K1106M Mifare Card Reader



 32-bit high-speed processor
 Support RS485 and Wiegand (w26, w34) protocol
 A group of LED indicator (blue , green, and red) for displaying power, communication, and card
reading status
 Build-in buzzer for status indication.
 Supports Mifare card reading, including card No.or content reading
 Tamper-proof function
 Accurate data and time display provided by built-in electronic clock
 ISP function for online upgrade (only supported by RS-485 communication device)
 Watchdog program to ensure the basic function of the terminal





Card Reader

MAIN FEATURES


DS-K1106 Series

AVAILABLE MODELS



Spec of DS-K1106 Series Card Reader www.hikvision.com
2




Model DS-K1106M
Power Supply 12 VDC
Power Consumption ≤2W
Processor 32bit
Radio Frequency Standard ISO 14443-A
Card Reading Frequency 13.56MHz
Card Reading Mode MIFARE Card
Induction Distance ≤50mm (≤1.97")
ID Settings via DIP Switch
Communication Mode RS485/Wiegand (Set via DIP Switch)
Prompt Buzzer
LED Indicator Power/Status
Working Temperature -20°C to +65°C (-4°F to +149°F)
Working Humidity 10% to 90% (No Condensing)
Dimension 85.6mm x 86.5mm x 14mm (3.37"x3.41"x0.55")
Tamper-Proof Supports
Protection Level Indoor
Mounting Method Wall Mounting with Gang Box


SPECIFICATION
