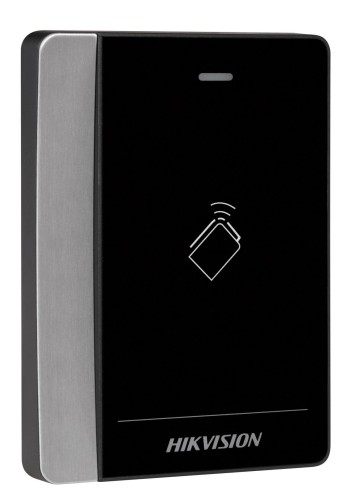

DS-K1102M

Czytnik Kart Mifare bez klawiatury, Obsługuje protokół RS485 i Wiegand (W26 / W34), tamper antysabotażowy, Odporny na kurz, IP 64, montaż do puszek 86 i 120...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

1






DS-K1102M Mifare Card Reader
DS-K1102MK Mifare Card Reader with Keypad



 PC+ABS material shell with PMMA panel design and alloy decoration;
 Equipped with the 32-bit high-speed processor;
 Built-in audible beeper;
 Display the reader status with LED indicator;
 DIP switch;
 RS485 and Wiegand(W26/W34) protocol;
 Tamper-proof alarm;
 Online upgrade function (under the 485 communication mode). Card reader can degrade to
pre-upgrade status in case of upgrading failed;
 Watchdog design for repairing itself in case that exception occurs, to ensure the longservice life
of the reader;
 Dust-proof and water-proof design;
 Read Mifare card and obtain the card No.;




Card Reader
MAIN FEATURES
DS-K1102M/MK
AVAILABLE MODELS


Spec of DS-K1102M/MKCard Reader www.hikvision.com
2




Model DS-K1102M/MK
Power Supply 12V DC
Working Current ≤500mA
Processor 32-bit
Reading Frequency 13.56MHz
Reading Range 30 to 50mm (1.18 to 1.96")
ID Settings Setting by the DIP Switch on the Main Board
Audio Alert Beeper
Power Consumption ≤6W
Keypad
No Keypad (DS-K1102M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1102MK)
Certifications FCC, CE
LED Indicator Power Indicator; Status LED Indicator
Working Temperature -40°C to +70°C (-40°F to +158°F)
Working Humidity 10% to 90% (Non Condensing)
Protection Level IP 64
Dimensions 121x86.5x14mm (4.76x3.41x0.55")
Weight ≤
Installing Method Applied for 86 & 120 Gang Box

SPECIFICATIONS
