DS-D5055UL-B

Monitor 54.64” wyświetlacz LCD o rozdzielczości 3840 × 2160, 10.07B kolorów, podświetlenie 350cd/m², kontrast 1200:1, odświeżanie 8ms. Wejścia HDMI × 1, DP × 1, DVI × 1, VGA × 1, Wbudowane głośniki 2x 5W. Zasilanie 100-240VAC, pobór <190W, temp. Pracy 0℃-40℃, wymiary 1267.1 mm × 741.5 mm × 78.24 mm waga 28.32 Kg....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-D5055UC-C

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Interfaces






Key Features
 Industrial grade A+ LCD panel
 Designed for surveillance, high reliability and stability
 Abundant varieties of interfaces: BNC, VGA, digital interface and diversified interfaces
 4K resolution is 4 times 1080P can own broader view and more abundant details
 16.7 million color, display picture perfectly
 Support horizontal and vertical display
 Horizontal 178°, Vertical 178°
 Dedicated project RS232 interface
 Build-in loudspeaker, audio visual connection
 VESA standard
 Metal shell

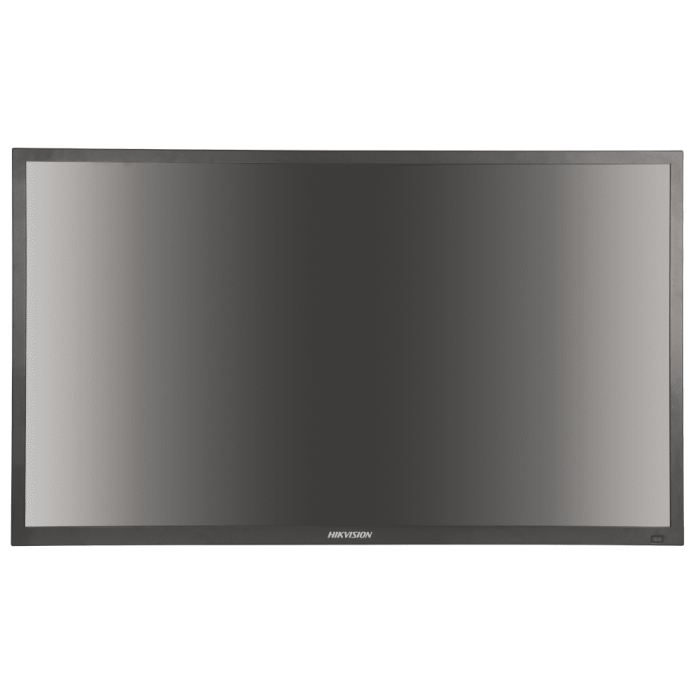

DS-D5055UL-B 54.6” 4K Monitor
Model
DS-D5055UL-B

NO. Description
1 VGA IN
2 HDMI IN
3 DVI IN
4 AUDIO IN/OUT
5 CVBS IN/OUT
6 USB Interface
7 RS-232 IN




① ② ③ ④ ⑤ ⑥ ⑦









Model DS-D5055UL-B
Backlight LED Backlight
Screen Size 54.6”
Pixel Pitch 0.315 mm * 0. 315 mm
Max Resolution 3840 x 2160
Brightness 500 cd/m² (Typical)
Contrast 1100 : 1
Response Time 8 ms
Color 10 bit, 1.07B
Active Area 1233.4 x 706.8 mm
Viewing Angle Horizontal 178°, Vertical 178°
Interfaces
HDMI input 2 Audio input 1
VGA input 1 Audio output 1
DVI input 1 USB interface 1
CVBS(BNC)
input 1 Network
1, RJ-45 10/100 Mbps
self-adaptive
Ethernet interface
CVBS(BNC)
output 1 RS-232 interface 1
Power Supply AC 100~240V, 50/60 Hz
Power Consumption ≤ 100W
Standby Power Consumption < 1 W(Standby)
Loudspeaker 5W x 2
Working Temperature 0 °C ~ 40 °C(32℉ ~ 104℉)
Working Humidity 10% ~ 90% (No Condensation)
Storage Temperature -20°C ~ 60°C(-4℉ ~ 140℉)
Storage Humidity 5%~90% (No Condensation)
Color of Casing Black
VESA 4-M6 200 mm * 300 mm
Dimensions(W*H*D) 1262.1 mm(W)*742.9 mm(H)*55.7 mm(D)
Packing Dimensions(W*H*D) 1395 mm * 295 mm * 890 mm
Gross Weight 41 kg
Net Weight 35 kg
Accessories
Power cord 1
User manual 1
Warranty card 1
Remote control 1
CD 1
Battery 2
Bracket
Pedestal Optional DS-DM5501B
Wall mounted Optional DS-DM4255W
*Note All specifications mentioned above are subject to the actual product
Specifications
































Dimensions (unit: mm)
