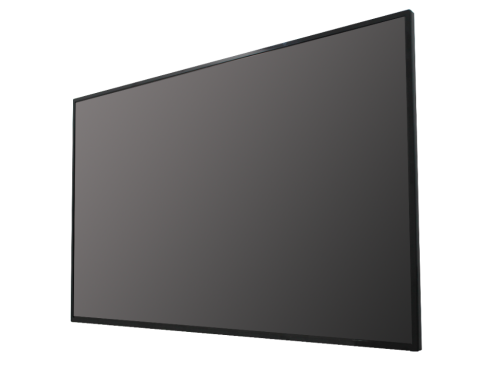

DS-D5050UC-C

Monitor LCD 50” 4K, Aktywna powierzchnia wyświetlania: 1095.84 (H) mm × 616.41 (V) mm; Podświetlenie: LED, Odległość między pikselami (Pixel Pitch): 0.2854 (H) mm × 0.2854 (V) mm; Jasność: 300 cd/㎡; Kąty widzenia: 178°/178°; Kontrast: 5000 : 1; Głębia kolorów: 8 bit; Czas odpowiedzi: 8ms; Częstotliwość odświeżania: 60Hz; Złącza multimedialne: HDMI 1.4 × 1, HDMI2.0 × 1, VGA × 1, Audio in × 1, USB x 1, RS-232 x 1; Wbudowane głośniki; Zasilanie: 100-240 VAC, 50/60 Hz; Temperatura pracy: 0 ℃ to 40 ℃; VESA: 200 mm × 200 mm; Przeznaczony do pracy 24x7....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-D5050UC
50” 4K MONITOR
• Ultra HD 4K(3840 x 2160) display
• High brightness and high contrast
• Wide view angle: 178°(H)/178°(V)
• Automatic adaptive redisplay rate when signal input
• Industrial ultra-thin design, convenience and beauty
• HDMI 1 interface is HDMI 2.0, HDMI 2 interface is HDMI1.4
• Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction
• High reliable components for 7 x 16 working hours
• Adopt 64bit processor, provide excellent image processing capability, optimize all kinds of video
signals and improve image quality
• VESA standard bracket

Features and Functions







Note: All specifications mentioned above are subject to the actual product.









Model DS-D5050UC
LCD Screen
Backlight LED Backlight
Dimension 50 inch
Optimal working resolution 3840 x 2160@60Hz
Brightness 300 cd/m²
Contrast 4000: 1
Response time 8ms
Color 16.7M
Active Area 1095.84 x616.41 mm
Viewing Angle Horizantal 178°, vertical 178º
Interfaces
LAN 1
VGA input 1
HDMI input 1
AV input 1 (CVBS IN, L Audio input, R Audio input)
USB 2.0 1
USB 3.0 1
SPDIF output 1
General
Casing Material Plastic
Color of Casing Black
Wall-mounting Hole 400 x 200 mm
Wall-mounting Screw M6
Speakers 2*8W
Power Supply 100 to 240 VAC, 50/60Hz
Power Consumption ≤ 117W
Standby Power Consumption ≤ 0.5 W
Working Temperature 0 to 40 º C (0 to 104 º F)
Working Humidity 10 to 90 %
Storage Temperature -20 to 60 º C (-68 to 140 º F)
Storage Humidity 5 to 95%
Dimensions 1123.6 x 649.3 x 77 mm
Packing Dimensions 1280 x 845 x 203 mm
Gross Weight 12.35 kg
Net Weight 12.00 kg
Accessories Specification*1, Power cord*1,HDMI cable*1,Remote control*1
Specifications





NO. Description Position
1 LAN
Bottom
2 VGA
3 SPDIF OUT
4 CVBS/AV IN
5 L AUDIO INPUT
6 R AUDIO INPUT
7 HDMI 1 IN
8 USB2.0
Side 9 USB3.0
10 HDMI 2 IN
Physical Interfaces







Available Models
DS-D5050UC
Dimensions (unit: mm)
