DS-D5043UC

Monitor 42.5", wyświetlacz D-LED, rozdzielcość 4K(3840x2160), podświetlenie 400cd/m2, kontrast 1200:1, czas odświeżani 8ms, ilość kolorów 1.07 biliona, wejście 2xHDMI,1xVGA, wej./wyj. audio, 2x USB (3.0/2.0), LAN. Kąt widzenia: 178st./178st.,mocowanie VESA, wbudowany głośnik (2*8W), zasilanie 100-240VAC, temperatura pracy 0st.C-40st.C, wymiary 986.2x559.4x60.9 mm, waga 8.6kg...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Interfaces






Key Features
 Designed for surveillance, high reliability and stability
 4K resolution is 4 times 1080P can own broader view and more abundant details
 HDMI support up to 4K@60Hz
 Multiple inputs: HDMI, VGA, RJ45, USB
 Build-in speaker, Audio 8W*2
 Narrow front Bezel

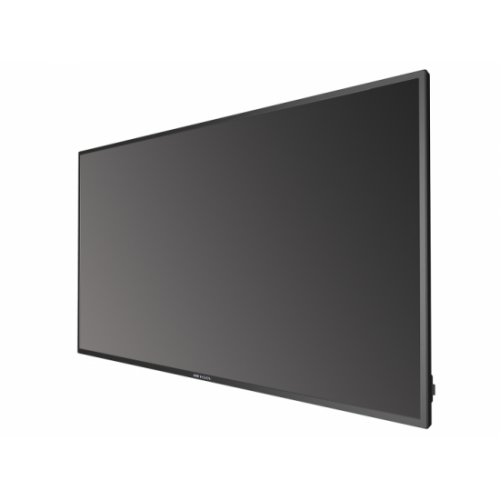

DS-D5043UC 42.5” 4K Monitor

NO. Description
1 RS232
2 HDMI 2.0*2
3 VGA
4 LAN
5 Audio out
6 Audio in
7 USB3.0*1 /USB2.0*1














Model DS-D5043UC
Backlight D-LED
Screen Size 42.5 inch
Pixel Pitch 0.2451mm (H) * 0.2451mm(W)
Max Resolution 3840 * 2160
Brightness 400 cd/m2 (Typ.)
Contrast 1200:1
Response Time 8ms
Color 1.07billion
Active Area 941.184mm(H) * 529.416mm(V)
Viewing Angle Horizontal 178°, Vertical 178°
Interfaces
RS232 1
HDMI 2.0 2
VGA 1
LAN 1
Audio out 1
Audio in 1
USB3.0*1 /USB2.0*1 2
Power Supply AC 100~240V, 50/60 Hz
Power Consumption ≤120W
Standby power Consumption 0.5W
Loudspeaker 8W*2
Working Temperature 0℃~40℃
Working Humidity 20% - 80%RH (No Condensation)
Storage Temperature -20℃ ~ +60℃
Storage Humidity 10% - 90%RH (No Condensation)
Color of Casing Black
VESA 200mm*200mm/400mm*400mm
Dimensions(W*H*D) 968.2mm*559.4mm*60.9 mm
Packing Dimensions(W*H*D) 1070mm*696mm*159 mm
Gross Weight 11.7kg
Net Weight 8.6kg
Accessories
Power cord 1
Battery 1
Remote Control 1
User manual 1
HDMI cable 1
Bracket
Pedestal NA
Wall mounted Optional DS-DM4255W
*Note All specifications mentioned above are subject to the actual product




Specifications









Dimensions (unit: mm)
