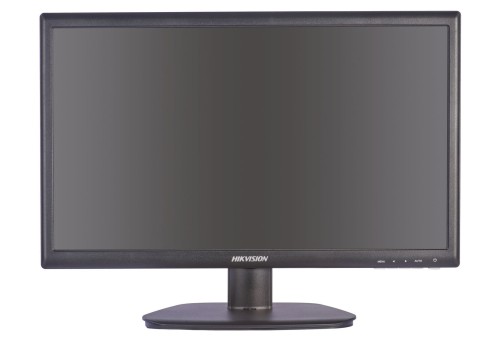

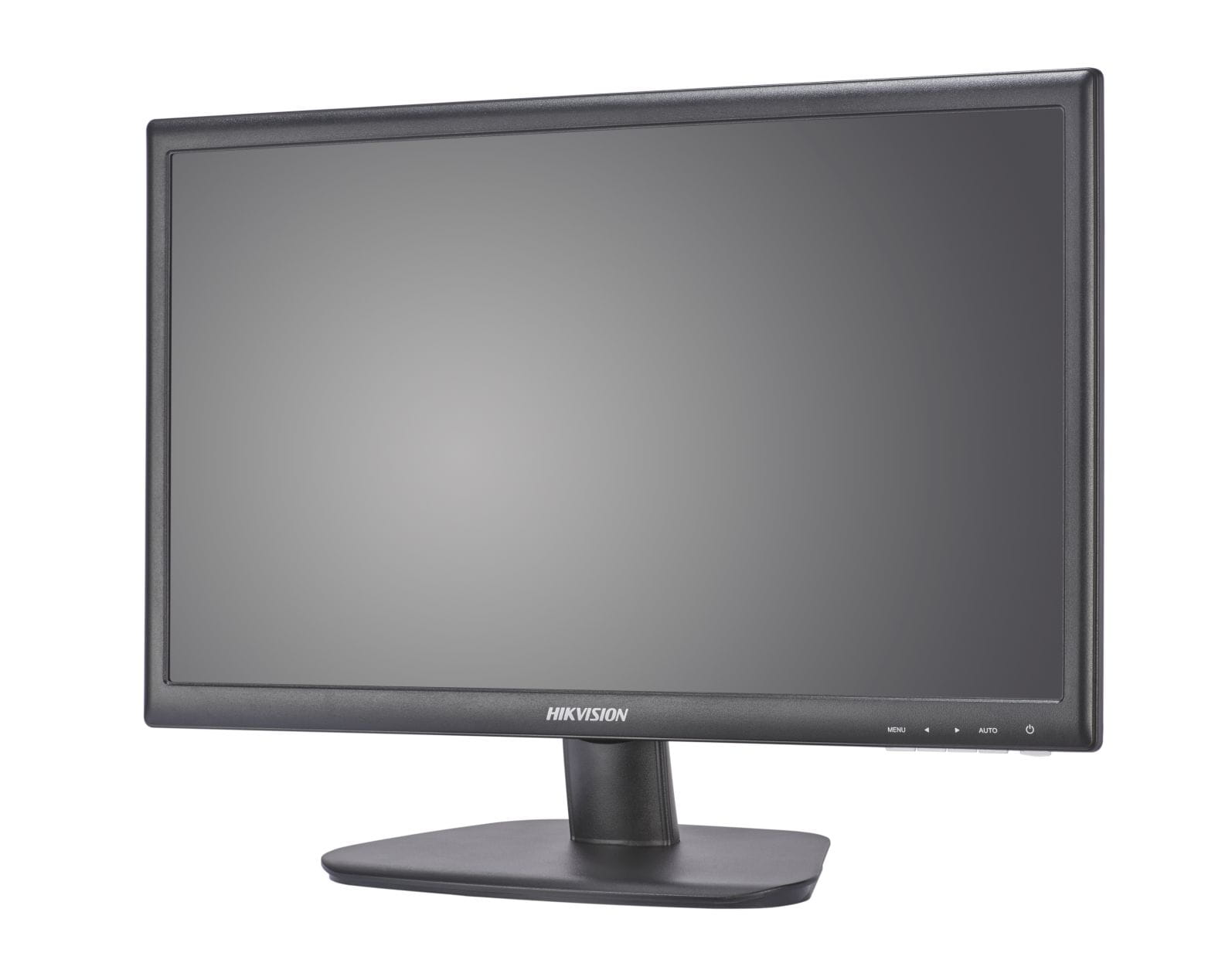

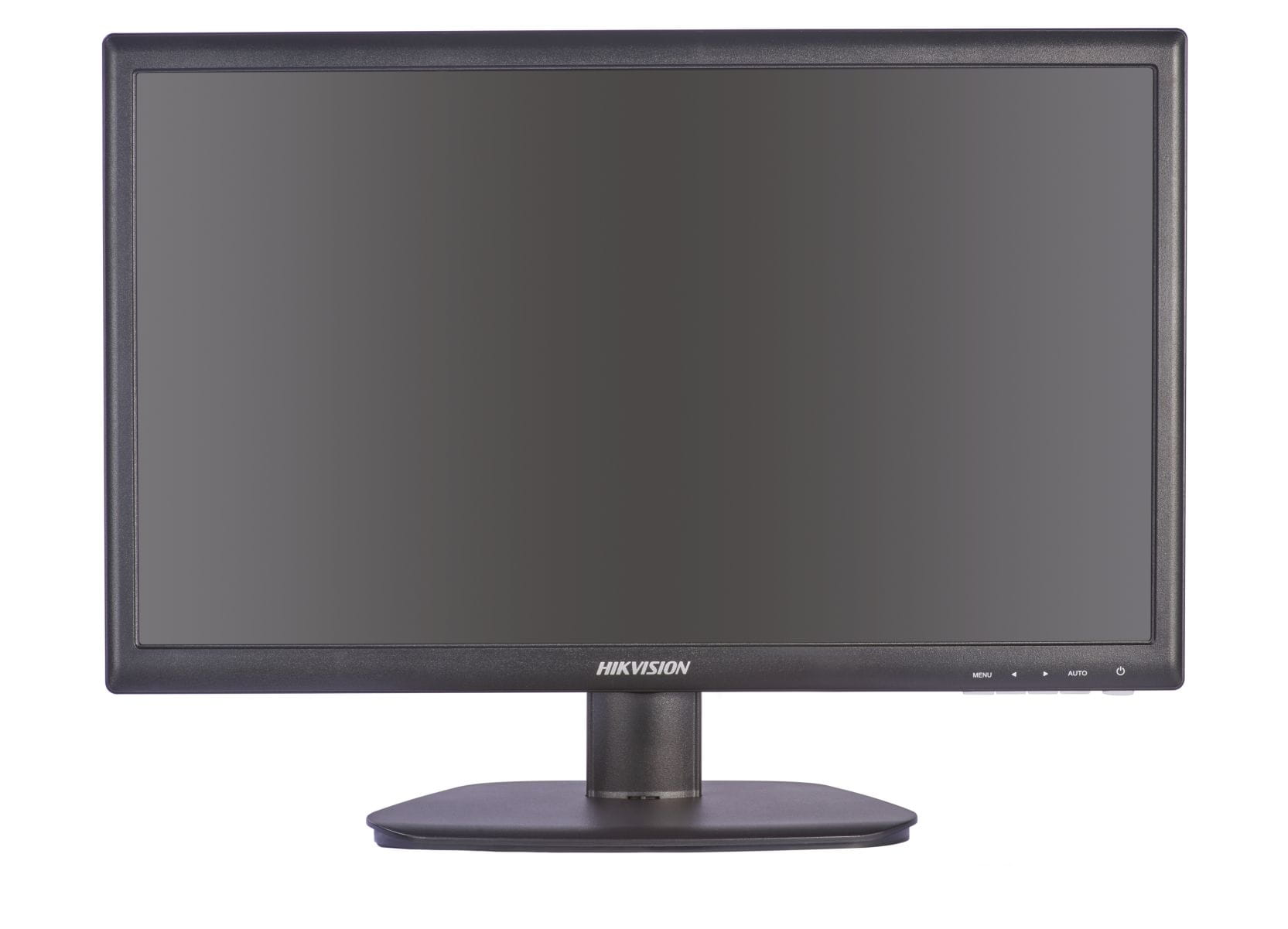

DS-D5024FC

Monitor 23.6" Hikvision, technologia LED. Rozdzielczość 1920x1080, kąty widzenia: 170st. (H) / 160st. (V). Wielkość piksela 0.2715x0.2715mm, jasność: 250 cd/m3, kontrast 1000:1, czas reakcji: 5ms. Wejścia: 1xHDMI, 1xVGA, 1xBNC. Mocownanie VESA 100x100mm. Przystosowany do pracy 7x24. Waga około 5.1kg. Zasilanie 230VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Overview
DS-D5024FC is a reliable surveillance display with LED backlit
technology, excellent color reduction and image processing, truly
display the video details. Multiply interfaces are able to meet
various surveillance environments, and build-in speaker is
convenient to audio play. DS-D5024FC is an ideal choice for
security and surveillance application.
key Features
•LED backlit technology with full HD 1920x1080@60Hz
•Wide view angle: 170°(H)/160°(V)
•Image processing: 3D comb filter, 3D De-interlace,
3D noise reduction
•Multiply interface: HDMI, VGA, BNC input, BNC output, audio in
•Support analog signal input
•Build-in speaker
•High reliable components for 7x24 working
•VESA stand bracket
•Green energy: Enter standby mode while no signal input
Model:
DS-D5024FC
DS-D5024FC
23.6” Monitor

Interfaces
NO.Description
13.5mm headphone interface
2AUDIO
3BNC in and out
4VGA ：VGA Analog Signal Input
5HDMI：HDMI DigitalSignal Input

DS-D5024FC
23.6” Monitor
ModelDS-D5024FC
Display
Display TypeLED-Backlit
Screen Size 23.6”
Pixel Pitch(HxV)0.2715mm x0.2715mm
Max Resolution1920x1080
Brightness250cd/m2 (Typical)
Contrast1000:1(Typical) DCR 30,000,000:1
Response Time5ms
Color16.7M
Viewing AngleHorizontal 170°, Vertical 160°
Interface
HDMI1
VGA1
BNCIn x1, Outx1
Audio
Audio Input 1x3.5 mm mini-jack, 1x RCA type
Speaker2*2W
Mounting
VESA100mm x100mm
General
Power SupplyAC100~240V
Consumption
< 30W(on)
< 0.5W(Standby)
Operation Temperature0°C ~ 40 °C
Operating Humidity10%~85% (No Condensation)
Storage Temperature-20°C ~ 60°C
Storage Humidity5%~95% (No Condensation)
Dimension (WxHxD)
561x339x218.5 (mm)
22.1x13.3x8.6(inch)
Weight6.0Kg(Gross weight) , 5.1(Net weight)
Included Accessories
Power cord x 1,VGA cable x 1,User manual x 1,warranty cardx 1,
base bracket x 1
Specification


DS-D5024FC
23.6” Monitor

Dimension
