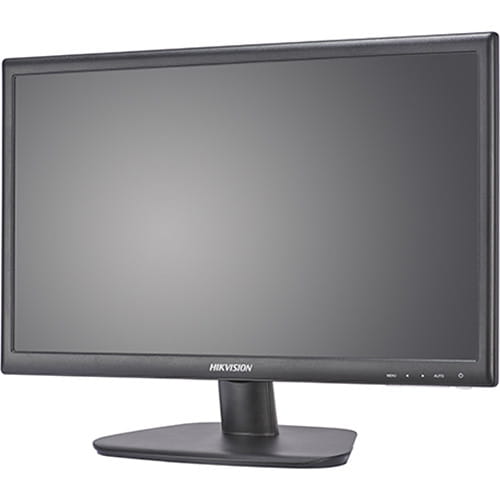

DS-D5024FC-C
Opis
Monitor LCD 23.8”, Aktywna powierzchnia wyświetlania: 527.04(H) mm x 296.46(V) mm; Podświetlenie: E-LED, Odległość między pikselami (Pixel Pitch): 0.0915 (H) mm × 0.2745 (V) mm; Jasność: 250 cd/㎡; Kąty widzenia: 178°/178°; Kontrast: 4000 : 1; Głębia kolorów: 8 bit; Czas odpowiedzi: 6.5ms; Częstotliwość odświeżania: 60Hz; Złącza multimedialne: HDMI × 1, VGA × 1, Audio In × 1, USB 2.0 × 1, BNC × 1; Zasilanie: 100-240 VAC, 50/60 Hz; Temperatura pracy: 0 ℃ to 40 ℃; VESA: 75 mm × 75 mm....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-D5024FC-C
24-inch Monitor
Ultra-thin device body with ultra-thin border for 3 sides.
2 channels of 8 bit/10 bit LVDS HD (1920*1080) display.
178° ultra-wide view screen.
3D noise reduction.
Built-in speaker for audio input.
Support 1 channel BNC surveillance video input with professional surveillance standard BNC interface.
Multimedia playing of text, image, audio, video, etc.
Support VESA wall mount.
Specification
Model DS-D5024FC-C
Display
Screen Size 23.8”
Active Display Area 527.04(H) mm x 296.46(V) mm
Resolution 1920 x 1080
Backlight E-LED
Pixel Pitch 0.0915 (H) mm x 0.2745 (V) mm
Brightness 250 cd/㎡
Viewing Angle 178°/178°
Color Depth 8 bit
Contrast Ratio 4000 : 1
Response Time 6.5 ms(typ)
Refresh Rate 60 Hz
Haze 25 %
Reliability 7 x 18 H
Color Gamut 72%
Interface Video & Audio Input HDMI x 1, VGA x 1, Audio In x 1, USB 2.0 x 1, BNC x 1
Power
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption ≤ 22 W
Standby Consumption ≤ 0.5 W
Working
Environment
Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉ )
Working Humidity 20% to 90% RH (Non-Condensing)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ )
Storage Humidity 10% to 90% RH (Non-Condensing)
General
Casing Material Plastic
VESA 75 mm x 75 mm, 4-M6 x 6 screw holes
Bezel Width 1.9 mm (top/left/right), 23.55 mm (bottom)
Product Dimensions
(W x H x D)
With base: 539.1 (W) mm x 433.199 (H) mm x 43.78 (D) mm (21.22'' x 17.05''
x 1.88'')
Without base: 539.1 (W) mm x 328.325 (H) mm x 43.78 (D) mm (21.22'' x
12.93'' x 1.88'')
Package Dimensions
(W x H x D)
650 (W) mm x 475 (H) mm x 135 (D) mm (25.5'' x 18.7'' x 5.31'')
Net Weight 3.6 ± 0.5 kg (7.9 ± 1.1 lb.)
Gross Weight 5.0 ± 0.5 kg (11.0 ± 1.1 lb.)
Packing List
AC power cable x 1, base bracket x 1, user manual x 1, quick start guide x 1,
HDMI cable x 1
Remarks
*The base is included by default.
*The product appearance and parameters in this specification may vary from
your actual device. Please consult our local sales staff for further information.
Physical Interface
Interface Description Interface Description
HDMI HDMI digital signal input VGA VGA analog signal input
AC 100-240V~ 100-240 VAC power supply AUDIO IN 3.5mm Audio Input
USB USB 2.0 BNC CVBS Signal Input
Dimension
Available Model
DS-D5024FC-C
Accessory
Optional
DS-DM1940W
Wall-mounted
Bracket
