DS-D5022FN-C
Opis
Monitor 21.5" Hikvision, technologia LED. Rozdzielczość 1920 ×1080, kąty widzenia: 178° (H) / 178° (V). Jasność: 250 cd/m³, kontrast 3000: 1, czas reakcji: 13ms. Złącza: 1xHDMI (wej.), 1xVGA (wej.). Mocownanie VESA. Przystosowany do pracy 7x24. Wymiary: 489×378×167mm, waga około 2.75 kg. Zasilanie 240VAC....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

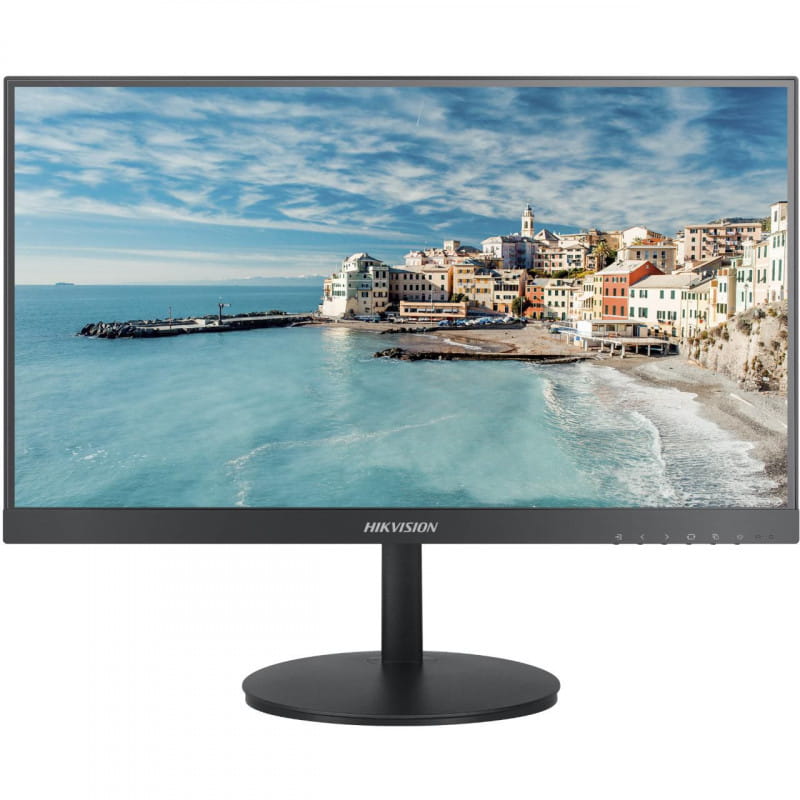

DS-D5022FN-C
22-inch Monitor
Ultra-thin device body with ultra-thin border for 3 sides.
2 channels of 8 bit/10 bit LVDS HD (1920*1080) display.
178° ultra-wide view screen.
3D noise reduction.
Low blue light design for eye care.
Dual interface of HDMI and VGA.
Support VESA wall mount.
Specification
Model DS-D5022FN-C
Display
Screen Size 21.5”
Active Display Area 478.656 (H) mm x 260.28 (V) mm
Resolution 1920 x 1080
Backlight E-LED
Pixel Pitch 0.0831 (H) mm x 0.241 (V) mm
Brightness 250 cd/㎡
Viewing Angle 178°/178°
Color Depth 8 bit
Contrast Ratio 3000 : 1
Response Time 6.5 ms(typ)
Refresh Rate 60 Hz
Haze 25 %
Reliability 7 x 16 H
Color Gamut 72%
Interface
Video & Audio
Input
HDMI 1.4 x 1, VGA x 1, Audio In x 1
Power
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption ≤ 22 W
Standby
Consumption
≤ 0.5 W
Working
Environment
Working
Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity 20% to 90% RH (Non-Condensing)
Storage
Temperature
-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 90% RH (Non-Condensing)
General
Casing Material Plastic
VESA 75 mm x 75 mm, 4-M6 x 6 screw holes
Bezel Width 1.88 mm (top/left/right), 19 mm (bottom)
Product Dimensions
(W x H x D)
With base: 492.356 (W) mm x 390.11 (H) mm x 200.20 (D) mm (19.38'' x
15.36'' x 7.88'')
Without base: 492.356 (W) mm x 289.680 (H) mm x 43.88 (D) mm (19.38'' x
11.40'' x 1.73'')
Package Dimensions
(W x H x D)
647 (W) mm x 111 (H) mm x 406 (D) mm (25.49'' x 4.37'' x 15.99'')
Net Weight 2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
Gross Weight 4.0 ± 0.5 kg (8.8 ± 1.1 lb.)
Packing List
AC power cable x 1, base bracket x 1, user manual x 1, quick start guide x 1,
HDMI cable x 1
Remarks
*The base is included by default.
*The product appearance and parameters in this specification may vary from
your actual device. Please consult our local sales staff for further information.
Physical Interface
Interface Description
HDMI HDMI digital signal input
VGA VGA analog signal input
AC 100-240V~ 100-240 VAC power supply
AUDIO IN 3.5mm Audio Input
Available Model
DS-D5022FN-C
Dimension
