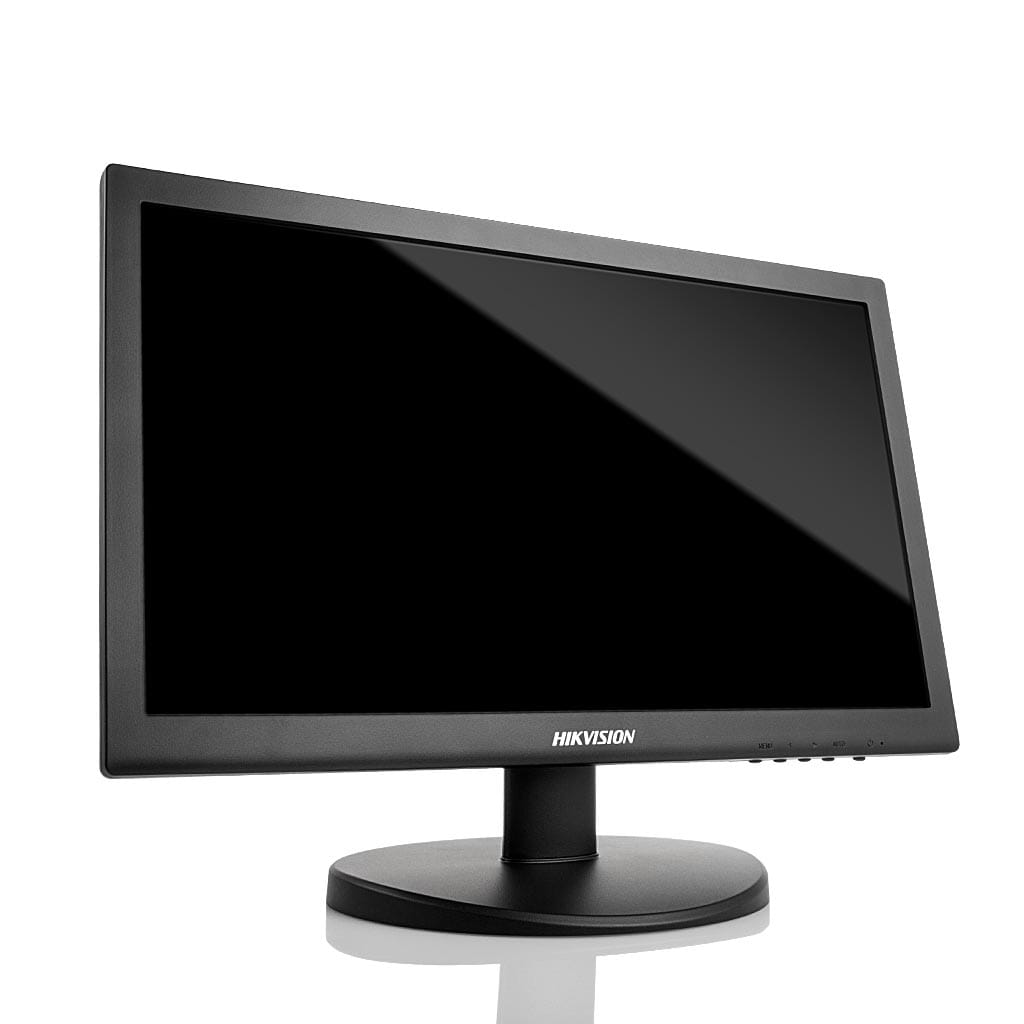

DS-D5021FC

Monitor LED Hikvision. Matryca TFT, przekątna ekranu 21", max. rozdzielczość 1920x1080, jasność 200cd/m2, wielkość piksela: 0.2385(H)x0.2385(V)mm, kontrast 600:1, czas reakcji 3.5ms. Złącza: HDMI, VGA, BNC, audio IN. Wymiary: 491.55x301.12x53.54mm (bez podstawki. Zasilanie 240VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

key Features
•Support 8 bits/10 bits 2-ch LVDS(1920x1080) HD display;
•Support 170° wide viewing angle;
•Adopt 3D digital comb filter;
•True color OSD and user-friendly operation menu;
•Support 16:9 or 4:3 aspect ratio selectable in OSD menu;
•Built-in speaker and audio amplifier;
•1 channel HDMI 1.3 input interface and support HDCP 1.2;
•Adopt 3D noise reduction technology;
•Programmable 12 bits RGB gamma correction technology;
•Support software spread-spectrum technology to reduce
EMI radiation;
•Adopt Mstar ACE-5 auto color and image enhancement
engine, improve image contrast, detail and edge;
•Professional for Video Surveillance application: HDMI, VGA
and BNC signal input;

Model:
DS-D5021FC

Physical Interface
DS-D5021FC
21” LCD Monitor

NO. Description
1
Source button, show all signal input
channel
2 Upward button, move cursor up
3 Downward button, move cursor down
4
Menu button, as a confirm button
when setting parameters in the menu
5 Power on/off button
6 HDMI input interface
7 VGA input interface
8 Audio input interface
9 BNC input interface


DS-D5021FC
21” LCD Monitor
Model DS-D5021FC
Display Type TFT-LED Backlight
Screen Size 21”
Dot Pitch (HxV) 0.2385mmx0.2385mm (0.009”x0.009”)
Max Resolution 1920x1080
Input Resolution
1920x1080; 1680x1050; 1600x900; 1400x900; 1360x768;
1280x1024; 1024x768; 800x600; 640x480; 720x400
Brightness 200cd/㎡
Contrast 600:1
Response Time 3.5ms
Color 16.7M
Viewable Area (HxV) 457.9mmx257.58mm (18.03”x10.14”)
Viewing Angle Horizontal 170°, Vertical 160°
Interfaces
HDMI Input 1
VGA Input 1
BNC Input 1
Audio Input 1 , 3.5 mm mini-jack
Power Supply 100 ~ 240V AC
Consumption < 30W
Operation Temperature 0°C ~ 40°C (32°F ~ 104°F )
Operating Humidity 10%~85% (No Condensation)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F )
Bezel Material Plastic
Bezel Color Black
Dimension (WxHxD) 491.55mmx301.12mmx53.54mm (19.35”x11.86”x2.11”)


DS-D5021FC
21” LCD Monitor

Dimension
