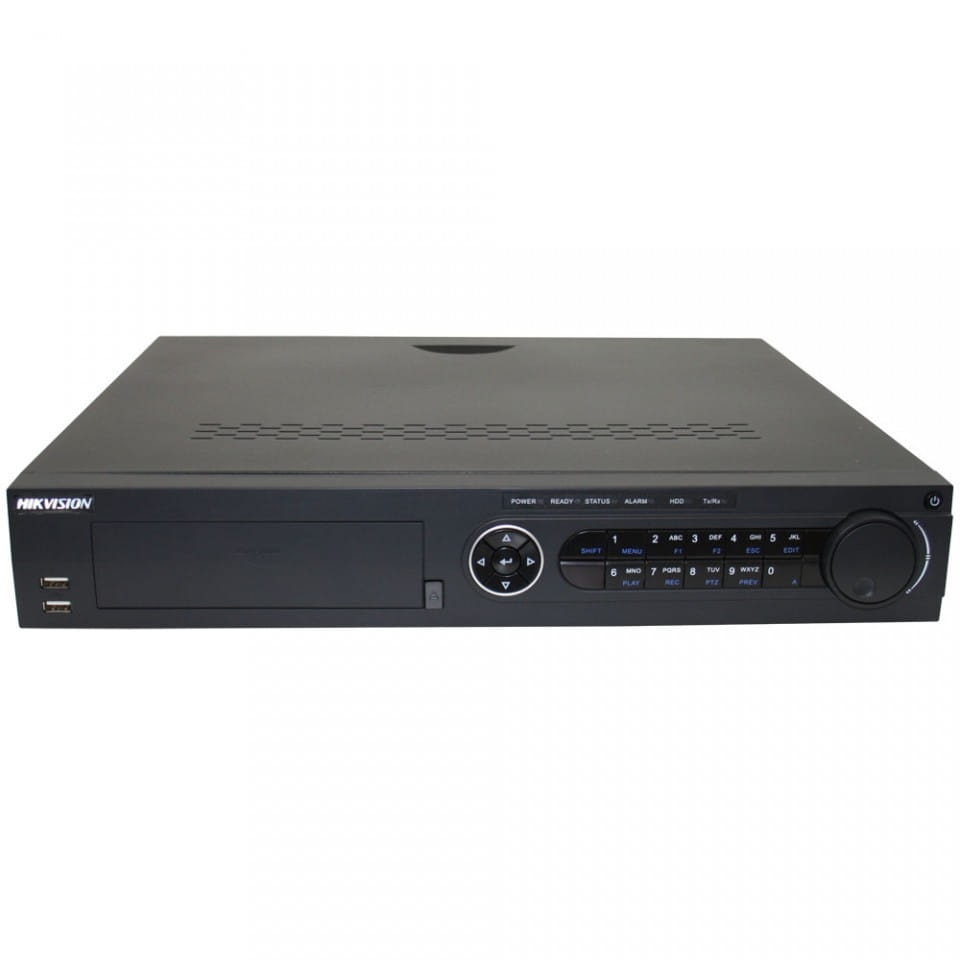

DS-7732NI-ST

Rejestrator NVR Hikvision: pasmo wejściowe/wyjściowe 200Mbps/160mbps, 32 kanały IP, maksymalna rozdzielczość nagrywania 6MP. Wyjście monitorowe: HDMI, VGA, BNC, 4 interfejsy SATA, 1 eSATA, 3 x USB2.0, RS-232, RS-485 (PTZ + klawiatura), wej./wyj. alarmowe: 16/4, GbE, obudowa 1,5U....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key features
www.hikvision.com
177


INPUT
Network Speed Dome
Remote Control USB Mouse
Door Contact
Alarm
MicrophoneUSB Device
Network Dome Cameras
Network Box Cameras
VGA / HDMISpeaker
Cell Phone
Router
PC Client
OUTPUT
control
ACCESSIES

DS-7716/32NI-ST


Embedded NVR

Video out
CVBS Audio out and VGA audio out
Line in
RS-232 interface
VGA interface
HDMI interface
eSATA interface
LAN interface
Termination switch
RS-485 interface, Controller port,
Alarm in and Alarm out
Ground
AC 100V ~ 240V
Power
USB interface
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920x1080P resolution
• HDD quota and group management
Rear Panel of DS-7700NI-ST
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

DS-7716NI-ST DS-7732NI-ST
Video/Audio input
IP video input 16-ch 32-ch
Two-way audio input 1-ch, BNC (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth 100Mbps 200Mbps
Outgoing bandwidth 240Mbps 160Mbps
Remote Connection 128
Video/Audio output
Recording resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rate
Main stream: 25 fps (P) / 30 fps (N)
Sub-stream: 25 fps (P) / 30 fps (N)
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 x 576 (PAL); 704 x 480 (NTSC)
HDMI output
1-ch, resolution:
1920 x 1080P /60Hz, 1920 x 1080P / 50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz,
1280 x 720 /60Hz, 1024 x 768 /60Hz
VGA output
1-ch, resolution:
1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output 2-ch, BNC (Linear, 600Ω)
Decoding
Live view / Playback
resolution
5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Capability 16-ch@720P, 8-ch@1080P
Hard disk
SATA 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA 1 eSATA interface
Capacity Up to 4TB capacity for each HDD
External interface
Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Serial interface RS-232; RS-485; Keyboard
USB interface 3 x USB 2.0
Alarm in/out 16/4
General
Power supply 100 ~ 240VAC, 6.3A, 50 ~ 60Hz
Consumption ≤ 40 W ≤ 45 W
Working temperature --10 ºC ~ +55 ºC (14ºF ~ 131ºF)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions(W x D x H) 445 x 390 x70 mm
Weight ≤ 4 Kg /8.82 lb ( without hard disk or DVD-R/W )
DS-7716/32NI-ST
