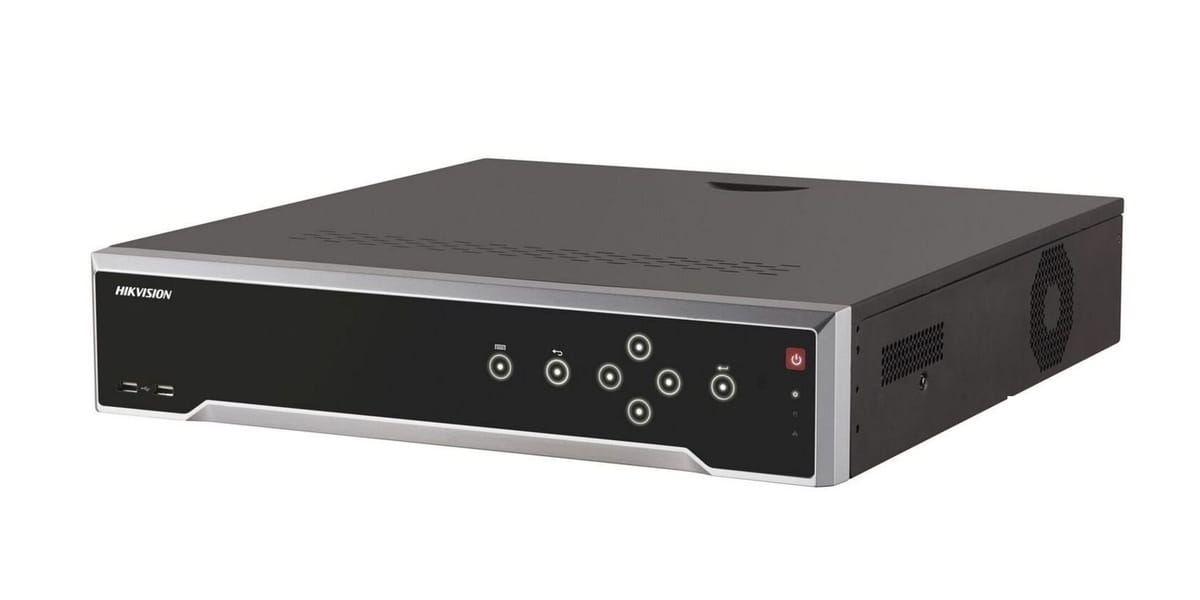

DS-7716NI-I4(B)
Opis
Rejestrator NVR Hikvision, pasmo wejściowe/wyjściowe: 160Mbps/256Mbps, 16 kanałów IP, maksymalna rozdzielczość nagrywania/odtwarzania: 12MP. Obsługiwane kodowanie: H.265/H.265+/H.264/H.264+/MPEG4. Wyjście monitorowe (niezależne) HDMI(3840x2160)/VGA(1920x1080), 2 porty USB 2.0, 1 port USB 3.0, 4 interfejsy SATA, 2 porty Ethernet RJ45 (1000 Mbps), 1 x eSATA, 1 x RS-232, 1 x RS-485 (PTZ). Wej./wyj. alarmowe: 16/4. Obudowa 1,5U, wymiary 445x400x71mm. Waga ok. 5kg (bez dysku). Zasilanie 240VAC....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-7700NI-I4 SERIES NVR
Features and Functions
Professional and Reliable
Dual-OS design to ensure high reliability of system running. The system has Linux embedded with the Pentaplex function
The system has language: Portuguese and English
HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable
Support different levels of the user with the possibility of the lock cameras for the user. Support 10 user connection in the
same time. Support, remote configuration of the system, playback, download, log of the system, update of the device and
cameras. Update of the firmware by local system and remote system. Backup of the configuration file.
Video Input and Transmission
Up to 32-ch 12 MP IP cameras can be connected with control of the bit rate per channel. Network interface control
Real time live view and playback. Web Server with remote access . Format of the video AVI, ASF.
Compression and Recording
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 12MP resolution.
Storage and Playback
Up to 4 SATA interfaces and 1 eSATA interface connectable for recording and backup
Smart search for efficient playback. Backup by USB interface, by networking and FTP.
8/16-ch synchronous playback at up to 1080p resolution with the option to search by date, hour, seconds and motion
detection. Support zoom digital in the câmera and playback.
Smart &POS Function
The system possibility: live view, playback, record, backup and remote access in the same time.
Functions: motion detection, loss video, masking of the camera, and offline camera.
Support of the visualization of the: name of camera, hour, date, record status, motion detection, loss video, lock of the
camera, status of the HD, statics of the transmission, log of the events, firmware version, online users and input 4 regions of
the mask private
Network & Ethernet Access
Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management. IVMS 4200 free included.
Model DS-7708NI-I4 DS-7716NI-I4 DS-7732NI-I4
IP video input
8-ch 16-ch 32-ch
Video/Audio
Up to 12 MP resolution
input
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Incoming bandwidth 80 Mbps 160 Mbps 256 Mbps
Network Outgoing bandwidth 256 Mbps
Remote connection 32 128
Recording resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
/4CIF/DCIF/2CIF/CIF/QCIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x
(Optional) 480
Video/Audio
HDMI output
4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x
output
resolution
1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
VGA output 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
resolution 768/60Hz
Mode of the view Mosaic with the mode 1, 4, 8, 9 and 16
Decoding format H.265/H.265+/H.264/H.264+/MPEG4/MJPEG
Live view / Playback 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
resolution /4CIF/DCIF/2CIF/CIF/QCIF
Decoding
Synchronous playback 8-ch 16-ch 32-ch
Rate recording frame
2-ch @ 4K, or
4-ch @ 4K, or 16-ch
4-ch @ 4K, or 32-ch @
8-ch @ 1080p –
rate
@ 1080p – 30fps
1080p – 30fps
30fps
IPV4 and IPV6, TCP/IP, DHCP, HIK Cloud P2P (DDNS of the
Network Hikvision), DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,
Network protocols
HTTPS, ONVIF, DYNDNS, NO-IP, FTP, IP filter, HTTP, RTSP, search
management
IP, alarm server, UDP, PPPoE. Send email for 3 differents addres
with alerts and photos. Alarm of the disconnect networking
SATA 4 SATA interfaces for 4HDDs
Hard disk
Capacity Up to 6TB capacity for each HDD
Manager HD, error of the record, limited of HD, erro HD. Search of
Functions
the events: Motion detection, alarm, regular with the hour and
date precision. Tags for the mark of the events, 5 speeds of the
playback and selection of the file to playback.
Network interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface, with
the possibility to have redundancy networking.
External
Serial interface
1 RS-485 (half-duplex), 1 RS-232
interface
USB interface
Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0, backup of the
image by HD external and drive DVD-RW
Alarm in/out 16/4
Power supply 100 to 240 VAC with 60hz
Power ≤80 W
Consumption
≤20 W
(without hard disk)
General Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Chassis 19-inch rack-mounted 1U chassis
Dimensions
385 x 315x 44.45 mm (15.2" 12.4" 1.75")
(W x D x H)
Weight
≤ 5 kg (11 lb)
(without hard disk)
Physical Interfaces
Index Description Index Description
1 LAN1 and LAN2 Interfaces 7 VGA Output (DB9 Connector)
2 AUDIO OUT 8 RS-485 Serial Interface
3 AUDIO IN 9 Controller Port, Alarm In/Alarm Out
4 HDMI Interface 10 GND
5 USB 3.0 Interface 11 100 to 240 VAC power supply
6 RS-232 Serial Interface 12 Power Switch
Available Models
DS-7708NI-I4, DS-7716NI-I4, DS-7732NI-I4
