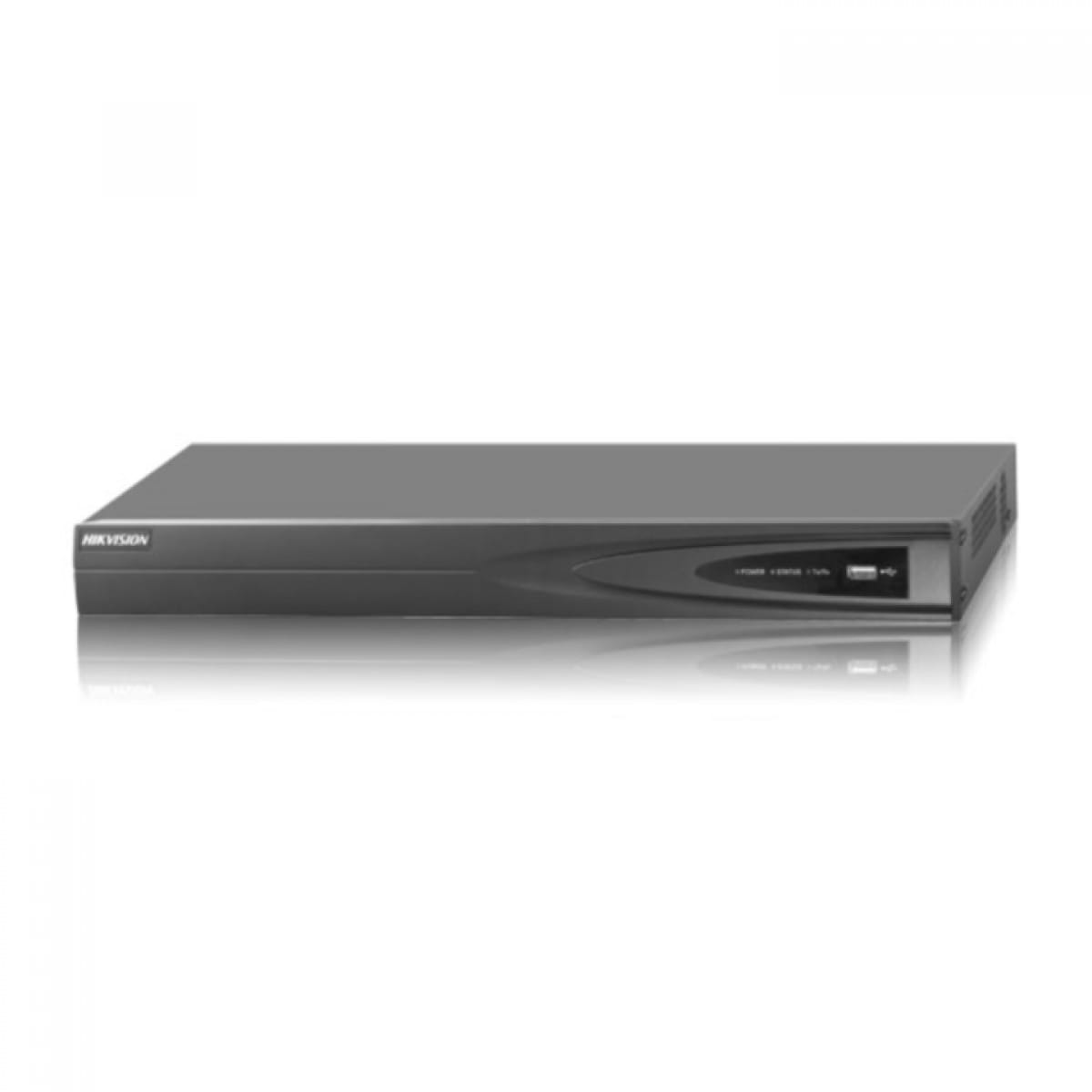

DS-7608NI-SE

Rejestrator NVR Hikvision: pasmo wejściowe 40Mbps, 8 kanałów IP, maksymalna rozdzielczość nagrywania 5MP, HDMI, VGA, 2 interfejsy SATA, 2 x USB2.0, obudowa 1U....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key features

www.hikvision.com

DS-7604/08/16NI-SE/P


Embedded Plug&Play NVR

INPUT
Network Speed Dome
Remote ControlUSB Mouse
Door Contact
Alarm
MicrophoneUSB Device
DS-7600NI-SE/P
Network Dome Cameras
Network Box Cameras
VGA / HDMISpeaker
Cell Phone
Router
PC Client
OUTPUT
control
ACCESSIES

LAN Network Interface
RS-485 Interface
100~240VAC Power Input
Power Switch
USB Interface
GND
HDMI Interface
VGA Output
Audio In
Audio Out
Network Interfaces with PoE function
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Rear Panel of DS-7600NI-SE/P
t Third-party network cameras supported
t Up to 5 Megapixels resolution recording
t HDMI and VGA output at up to 1920x1080P resolution
t HDD quota and group management
t 4/8 independent PoE network interfaces are provide

DS-7604NI-SE/PDS-7608NI-SE/P/8DS-7616NI-SE/P
Video/Audio input
IP video input4-ch8-ch16-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1k)
Network
Incoming bandwidth20Mbps40Mbps80Mbps
Output bandwidth40Mbps
Remote connection128
Video/Audio output
Decoding resolution5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI / VGA output
1-ch, resolution:
1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768
/60Hz
Audio output1-ch, RCA (Linear, 1k)
Playback resolution5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback
4-ch 720P / 2-ch 1080P / 1-ch
5MP
8-ch 4CIF / 4-ch 720P/ 2-ch 1080P / 1-ch 5MP
Hard disk
SATA2 SATA interfaces for 2 HDDs
CapacityUp to 4TB for each disk
External interface
Network interface1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface1 RS-485 half-duplex interface
USB interface2 x USB 2.0
Alarm in/out4/1 optional
PoE
Interface
4 independent 10 / 100 Mbps
8 independent 10 / 100 Mbps PoE Ethernet interfaces
Output Consumption52W120W
Supported StandardAF
General
Power supply100 ~ 240 VAC, 47 ~ 63 Hz, 3A
Consumption 15 W (without hard disk)
Working temperature-10 °C ~ +55 °C
Working humidity10% ~ 90%
Chassis 19-inch rack-mounted 1U chassis
Dimensions (W x D x H)445 x 290 x 45mm
Weight 2 Kg ( without hard disk)
PoE Ethernet interfaces
