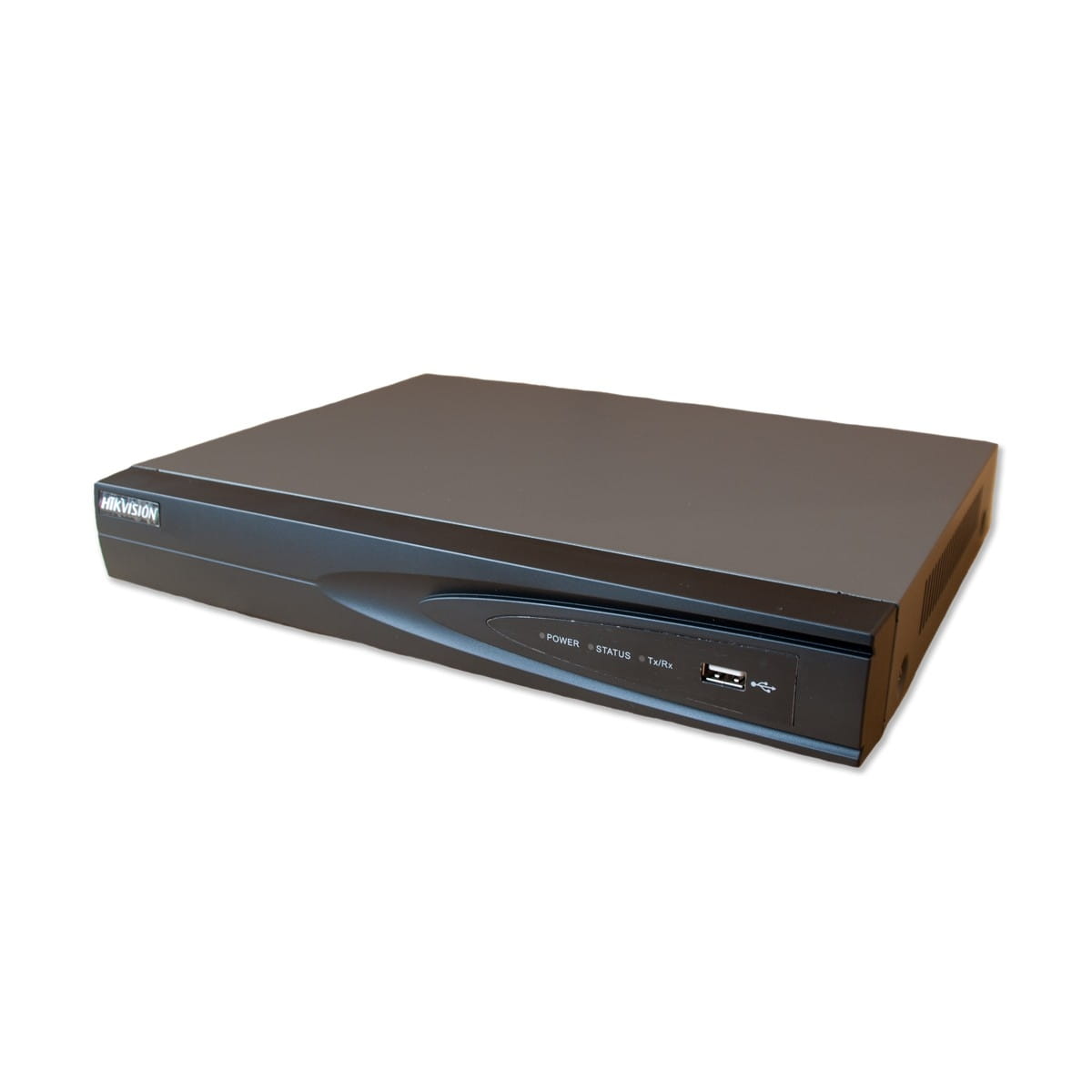

DS-7604NI-K1/W
Opis
Rejestrator NVR Hikvision: pasmo wejściowe/wyjściowe 40Mbps/80Mbps, 4 kanały IP, nagrywanie w rozdzielczości do 8MP. Obsługiwane kodeki: H.265/H.265+/H.264/H.264+/MJPEG. Wyjście monitorowe HDMI (4K-3840 x 2160), VGA (1920 x 1080), 2xUSB 2.0, 1 interfejs SATA (max. 6TB), 1 port Ethernet RJ45 (1000 Mbps), wej/wyj audio 1/1 (interkom). Wymiary: 315x240x48mm. Waga poniżej 1kg (bez dysku). Zasilanie 48VDC....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-7604NI-K1 NVR
Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
4 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI/VGA outputs provided
HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
1 SATA interface connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
1 self-adaptive 10M/100Mbps network interface
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can
be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Features and Functions
Model DS-7604NI-K1
Video/
Audio input
IP video input 4-ch
Incoming
bandwidth
40 Mbps
Outgoing
bandwidth
80 Mbps
Video/
Audio output
HDMI/VGA
output
resolution
HDMI:
4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz,
1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA:
1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.264/H.264+
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI
F/CIF/QCIF
Synchronous
playback
4-ch
Capability 4-ch @ 1080p
Network
management
Network
protocols
TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface for 1HDD
Capacity Up to 6TB capacity for each disk
External
interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
interface
1 RJ-45 10 M/100 Mbps self-adaptive Ethernet interface
USB interface 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without hard
disk)
≤ 10 W
Working
temperature
-10 to +55° C (14 to 131° F)
Working
humidity
10 to 90 %
Chassis 260 mm chassis
Dimensions
(W x D x H)
260 x 225 x 48 mm (10.2" x 8.9" x 1.9")
Weight
(without hard
disk)
≤ 1 kg (2.2 lb)
Specifications
Index Description Index Description
1 Power Supply 5 HDMI Interface
2 Audio In 6 LAN Network Interface
3 Audio Out 7 USB Interface
4 VGA Interface 8 Ground
DS-7604NI-K1
Physical Interfaces
Available Models
DS-7604NI-K1
030406160403
