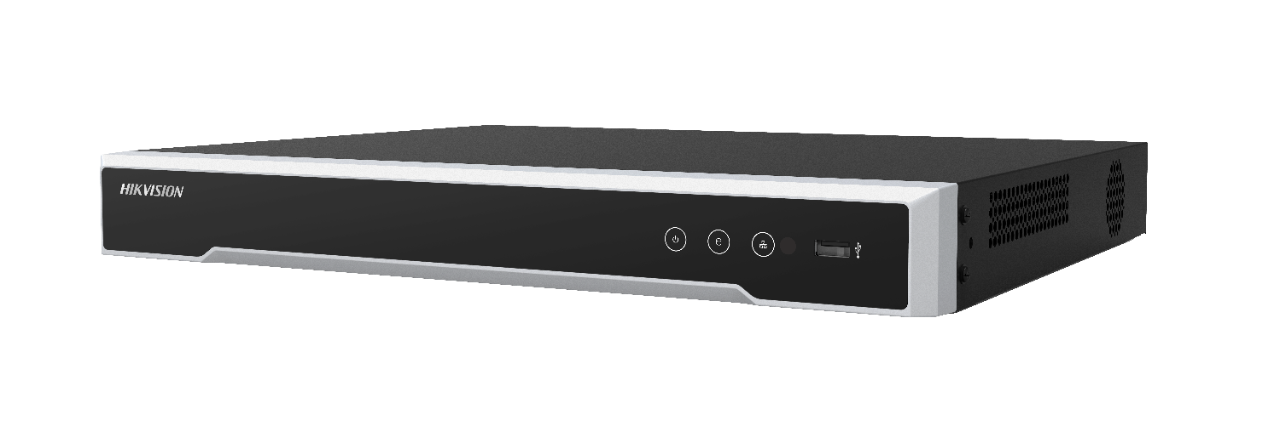

DS-7604NI-K1/4P(C)
Opis
Rejestrator NVR DS-7604NI-K1/4P(C) posiada 4 wejść wideo IP do 8MP; pasmo przychodzące 40 Mbps, pasmo wychodzące 80 Mbps; Tryb wyjścia wideo: jednoczesne wyjście HDMI/VGA; 1 wyjście audio; dwukierunkowe wejście audio; dekodowanie:H.265+/H.265/H.264+/H.264; wydajność: 1-ch@8 MP (30 fps)/5-ch@1080p (30fps); Rozdzielczość nagrywania: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF; Funkcje Smart: zdarzenia VCA, detekcja ruchu, przekroczenie linii, wtargnięcie itp., Mapa ciepła i zliczanie osób; synchroniczne odtwarzanie do 4 kanałów; 16 zdalne połączenia; 4 interfejsów PoE, standard IEEE 802.3 af/at, moc: ≤50W; 1 interfejs SATA, do 8TB; Zasilanie: 48VDC, 1.8 A; Temperatura pracy: -10 °C do 55 °C; Wymiary: 320× 240 × 48 mm (12.4"× 9.4"× 1.9"); Waga; ≤ 1 kg (2.2 lb)...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-7600NI-K1/4P Series NVR
Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
4 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI/VGA outputs provided
HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
1 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
1 self-adaptive 10M/100Mbps network interface
4 independent PoE network interfaces are provided
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can
be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Features and Functions
Model DS-7604NI-K1/4P
Video/
Audio input
IP video input 4-ch
Incoming bandwidth 40 Mbps
Outgoing bandwidth 80 Mbps
Video/
Audio output
HDMI/VGA output
resolution
HDMI:
4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz,
1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA:
1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.264/H.264+
Recording resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI
F/CIF/QCIF
Synchronous playback 4-ch
Capability 4-ch @ 1080p
Hard disk
SATA 1 SATA interface for 1HDD
Capacity Up to 6TB capacity for each disk
Network
management
Network protocols
TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
External interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network interface 1 RJ-45 100 Mbps full-duplex Ethernet interface
USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
POE Interface
Interface 4 RJ-45 100 Mbps full-duplex Ethernet interfaces
Power ≤ 40 W
Supported standard IEEE 802.3 af/at
General
Power supply 48 VDC
Power ≤ 65 W
Consumption
(without hard disk)
≤ 10 W (without enabling PoE)
Working temperature -10 to +55° C (14 to 131° F)
Working humidity 10 to 90 %
Chassis 1U chassis
Dimensions
(W x D x H)
315 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight
(without hard disk)
≤ 1 kg (2.2 lb)
Specifications
Index Description Index Description
1 Network Interfaces with PoE function 6 LAN Network Interface
2 AUDIO IN 7 USB 2.0 Interface.
3 AUDIO OUT 8 48VDC power supply
4 VGA Interface 9 Power Switch
5 HDMI Interface 10 GND
DS-7604NI-K1/4P
Physical Interfaces
030307151106
Available Models
030406160511
