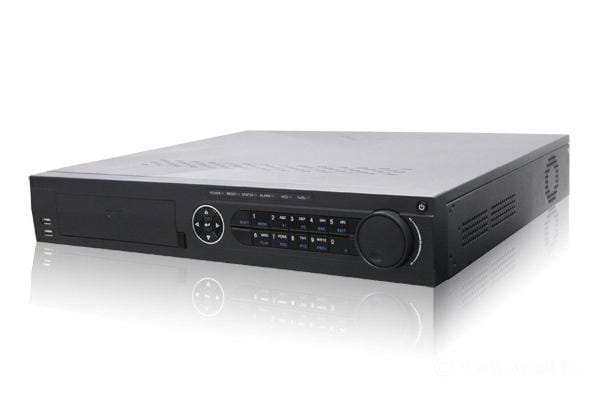

DS-7324HGHI-SH

Rejestrator Turbo-HD Hikvision, 24 wejść wizyjnych BNC (Turbo-HD/PAL/960H - automatyczna adaptacja), Wejścia/wyjścia audio: 4/2, 4 interfejsy SATA (dyski maksymalnie 4TB każdy). Wyjście monitorowe HDMI/VGA. Maksymalna rozdzielczość/prędkość nagrywania: 1280x720@25kl/s,1920x1080@12kl/s. na kanał. Możliwość podłaczenia do 18 kamer IP (po wyłączeniu kanałów analogowych - rozdzielczość maksymalnie 2MP każda). Kompresja H.264. Odtwarzanie w trybie pełnoekranowym lub podziale. Złącze LAN (RJ-45), 3 gniazda USB, 1 x port RS-485 do sterowania kamer PTZ. Wej./wyj. alarmowe: 16/4. Obudowa metalowa, wysokość montażowa 1,5U. Zasilanie 230VAC. Wymiary: 445×390×70 mm. Waga: 5 kg (bez dysku)....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-7324/7332HGHI-SH Series HD-TVI DVR
 Connectable to TVI and analog cameras;
 Support HIKVISION-C protocol for connecting camera over coax;
 Connectable to network cameras;
 Simultaneous HDMI and VGA outputs at up to 1920x1080p resolution;
 New GUI and supports starting record with one key;
 Redundant recording, holiday recording schedule configuration;
 Instant playback for assigned camera during multi-channel live view mode;
 Support up to 24/32-ch synchronous playback; and reverse playback for multi-channel;
 Smart playback to go through less effective information;
 Manual video quality diagnostics;
 Support VCA alarm (line crossing detection and intrusion detection);
 Customization of tags, searching and playing back by tags;
 Locking and unlocking record files;
 Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode;
 Provide 4 SATA interfaces and 1 eSATA interface for record and backup;
 1 self-adaptive 10M/100M/1000M network interface;
 Support access by EZVIZ Cloud P2P;
 Support Hikvision DDNS (Dynamic Domain Name System);
 Network detection function.
Features and Functions








Model

DS-7324HGHI-SH DS-7332HGHI-SH
Video/
Audio input
Video compression H.264
Analog and HD-TVI
video input
24-ch 32-ch
BNC interface (1.0Vp-p, 75 Ω)
Supported camera
types
720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30, CVBS
IP video input
8-ch (up to 32-ch) 8-ch (up to 32-ch)
Up to 2MP resolution
Audio
compression
G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/
Audio output
HDMI / VGA
output
1920 x 1080/60 Hz ,1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Encoding
resolution
Main stream: 1080p (non-real-time)/720p/WD1/VGA/4CIF/CIF
Sub-stream: WD1 (non-real-time)/4CIF (non-real-time)/CIF/QCIF/QVGA
Frame rate
Main stream: 1/16 fps to Real time frame rate
Sub-stream: 1/16 fps to Real time frame rate
Video bitrate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous
playback
24-ch 32-ch
Playback
resolution
1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Network
management
Remote
connection
128
Network protocols
TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
Type 4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity Up to 6TB capacity for each disk
External
interface
Network interface 1; 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB port 3 x USB 2.0
Alarm in / out 16/4
General
Power supply 100 to 240 VAC, 47 to 63 HZ
Consumption
(without hard
disks)
≤ 55W ≤ 65W
Working
temperature
-10ºC to +55ºC (14ºF to 131ºF)
Working humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions
(W x D x H)
445 x 390 x 70 mm (17.5 x 15.3 x 2.7 inch)
Weight
(without hard
disks)
≤ 5 Kg (11.0lb)

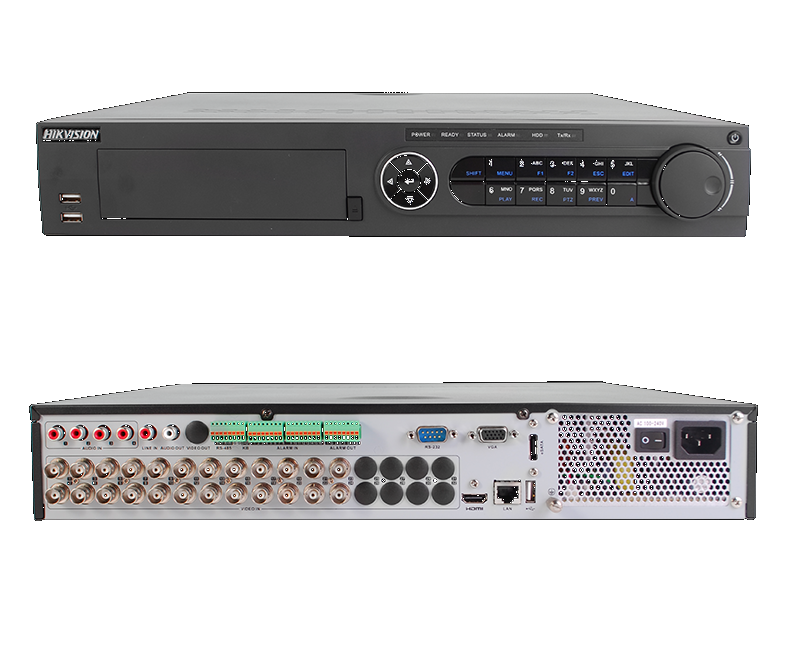

Specifications




Index Description Index Description
1 VIDEO IN 9
RS-485 Serial Interface, Keyboard Interface,
ALARM IN and ALARM OUT
2 AUDIO IN, RCA Connector 10 100 to 240 VAC Power Input
3 USB Port 11 Power Switch
4 HDMI Interface 12 GND
5 VGA Interface 13 LINE IN
6 VGA AUDIO OUT 14 eSATA Interface
7 LAN Network Interface 15 RS-232 Serial Port
8 VIDEO IN
DS-7324HGHI-SH, DS-7332HGHI-SH.

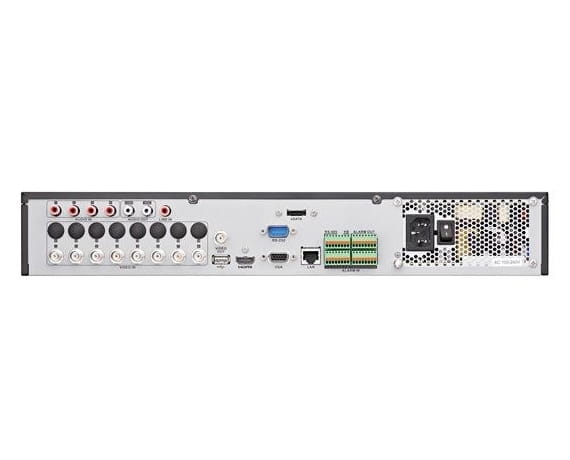

Physical Interfaces
030310151022
Available Models
