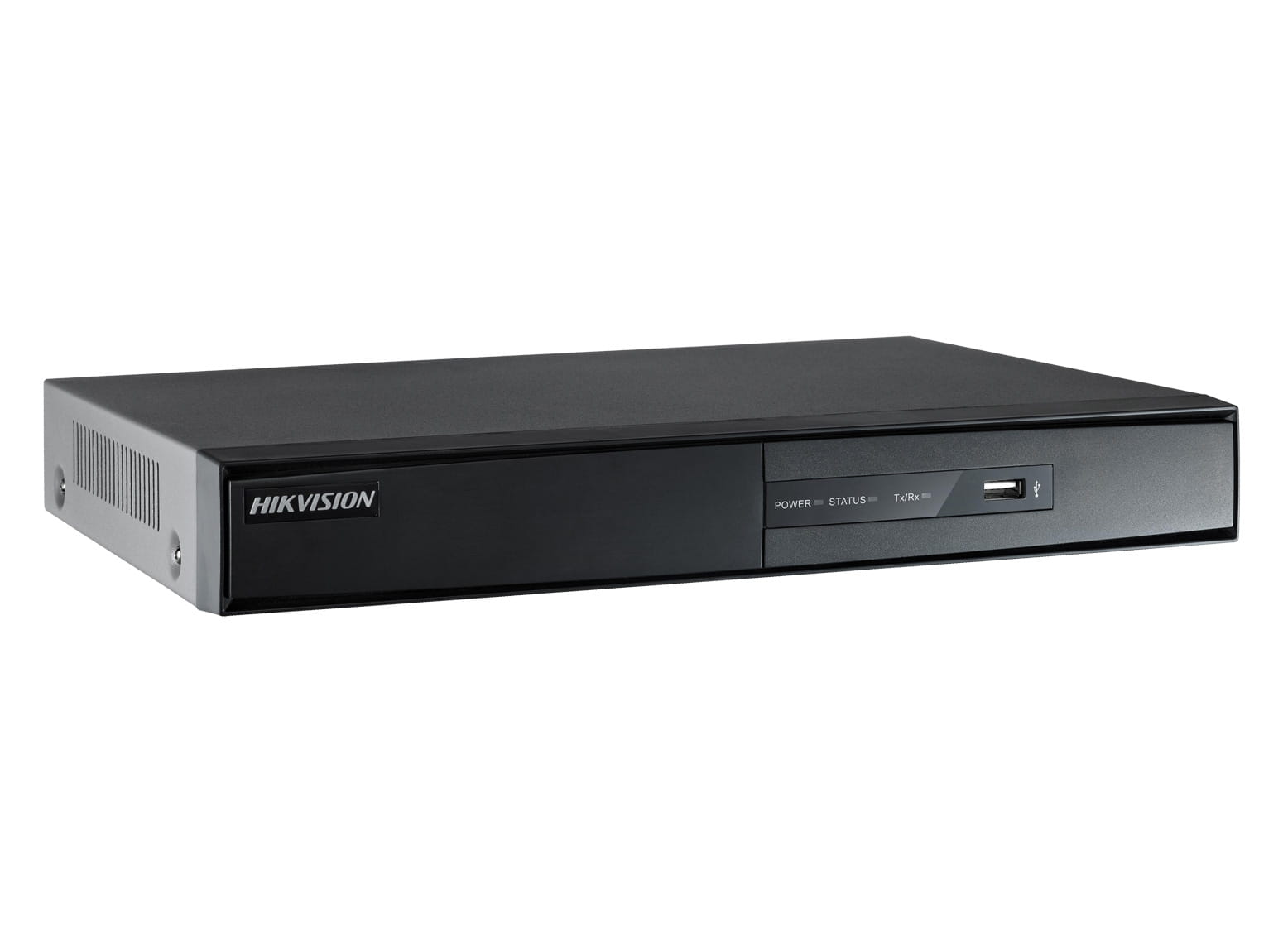

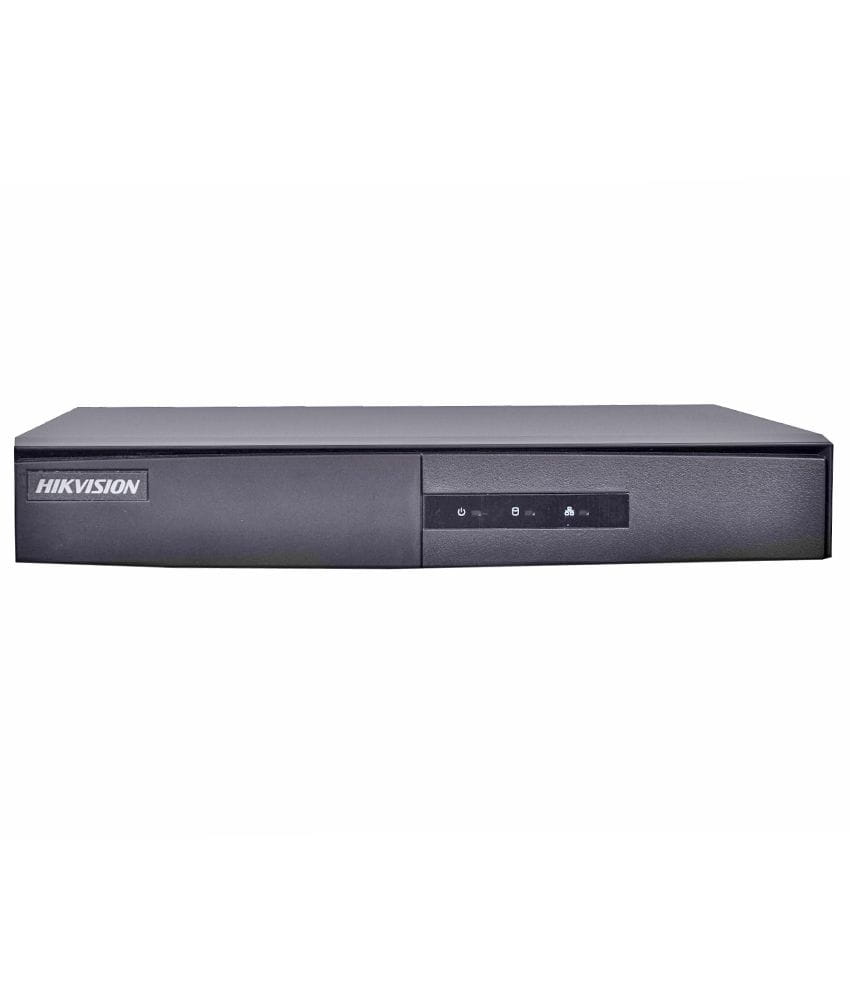

DS-7216HGHI-F1

Dostępność: 0
Cena: 953,00 zł 953.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300216521

Opis

Rejestrator Turbo-HD Hikvision, 16 wejść wizyjnych (Turbo-HD/AHD/HD-CVI/PAL), max. parametry zapisu: 1080p@12kl/s (HD-TVI-LM), 720p@25kl/s (dla wszystkich standardów), możliwość podłączenia dwóch kamer IP o rozdzielczości 1080, kompresja H.264/H.264+, wejście/wyjście audio: 1/1, 1 interfesj SATA (max. 6TB), 2xUSB 2.0, 1xRJ45 (10M/100M), wyjście HDMI/VGA (1920x1080), dwa strumienie, funkcja Smart Search, wymiary: 260/222/45mm, masa około: 1.2kg. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-7200HGHI-F1 SERIES TURBO HD DVR

Video Input and Transmission
 Connectable to HDTVI, AHD and analog cameras
 Up to 2-ch 1080p IP cameras input
 Long distance transmission over UTP and coaxial cable
Compression and Recording
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
 Supports real-time 1080p lite of all channels and when enabled, the image effect is similar with 1080p
Video Output
 HDMI/VGA output at up to 1920 x 1080 resolution
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8/16-ch synchronous playback at up to 720p resolution
 Smart search for efficient playback
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 One self-adaptive 10/100Mbps network interface
 Output bandwidth limit configurable

Features and Functions







Model

DS-7204HGHI-F1 DS-7208HGHI-F1 DS-7216HGHI-F1
Video/Audio
input
Video compression H.264+/H.264
Analog video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 1080p25, 1080p30, 720p25, 720p30
AHD input 720p25, 720p30
CVBS input Support
IP video input
1-ch 2-ch
Up to 960p
resolution
Up to 1080p resolution
Audio compression G.711u
Audio input/Two-way audio
input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA output
1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Encoding resolution
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps;
CIF/QVGA/QCIF@
25fps (P)/30fps (N)
Sub-stream:
4CIF/2CIF@6fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Network
management
Remote connections 32 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
External
interface
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 8 W ≤ 12 W ≤ 20 W
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
260 x 222 x 45 mm (10.2 x 8.7 x 1.8 inch)
Weight
(without HDD)
≤ 1 kg (2.2 lb) ≤ 1.2 kg (2.6 lb)
Specifications




Index Description Index Description
1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interface
3 VGA Interface 8 GND
4 AUDIO OUT 9 12 VDC Power Input
5 AUDIO IN
DS-7204HGHI-F1, DS-7208HGHI-F1 and DS-7216HGHI-F1

Physical Interfaces
03040801061024

Available Models

The rear panel of DS-7204/7208HGHI-F1 provides 4/8 video input interfaces.
