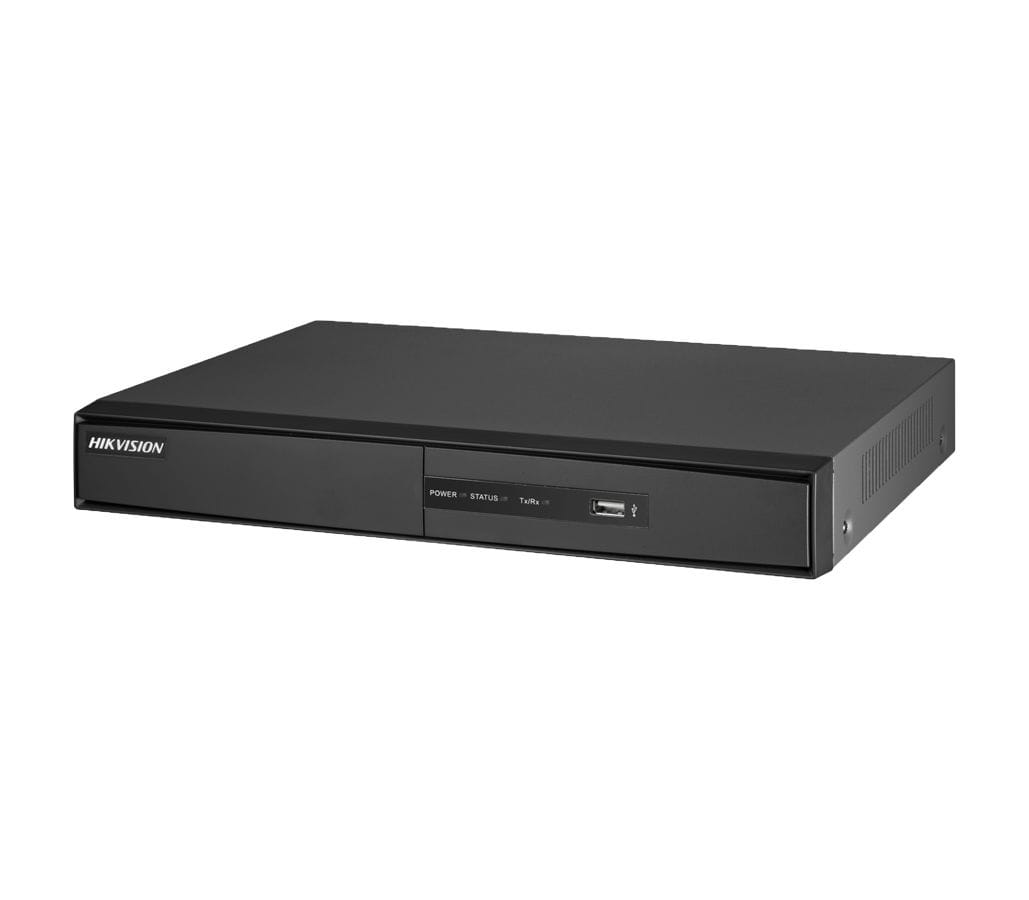

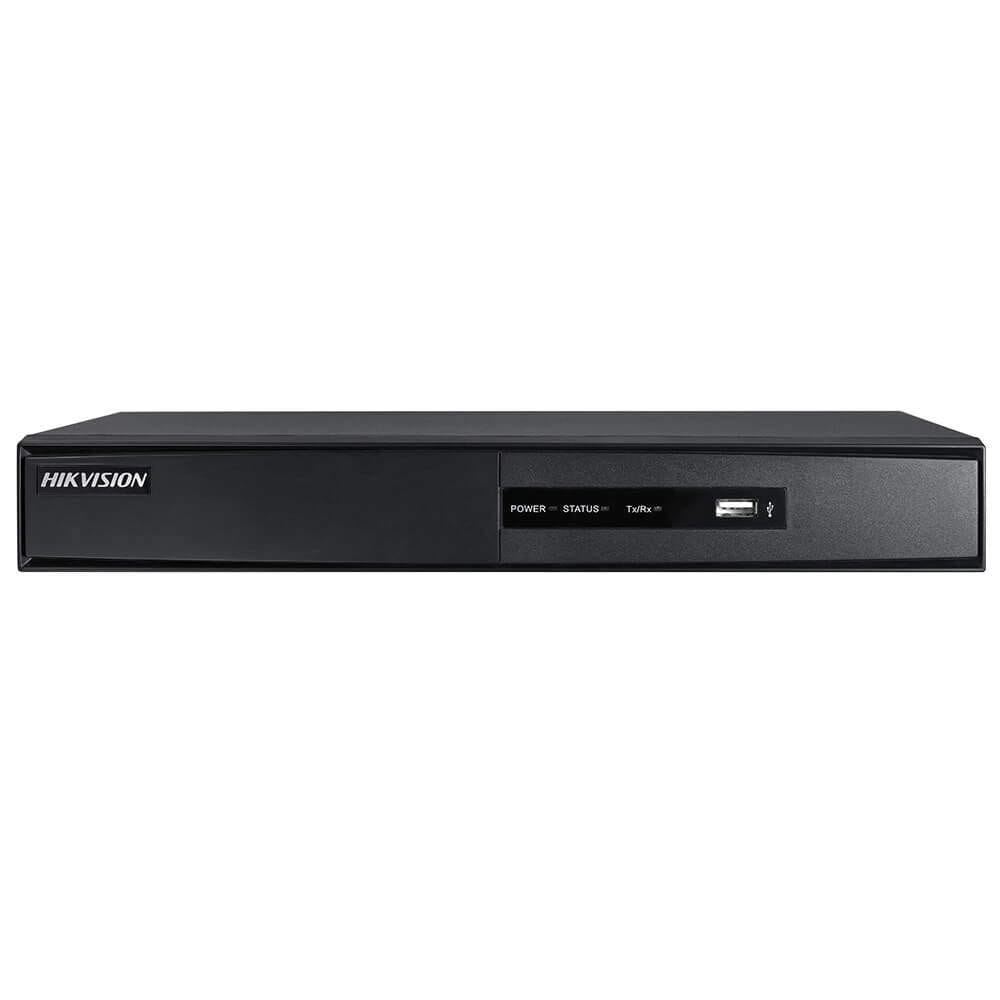

DS-7216HGHI-E1

Rejestrator Turbo-HD Hikvision, 16 wejść wizyjnych BNC (Turbo-HD: kamery C2(B)//PAL/960H - automatyczna adaptacja), 1 wejście/wyjście audio, 1 interfejs SATA (dysk maksymalnie 4TB). Wyjście monitorowe HDMI/VGA. Maksymalna rozdzielczość/prędkość nagrywania: 1280x720@30kl/s. na kanał. Możliwość podłaczenia dwóch dodatkowych kamer IP (rozdzielczość maksymalnie 1080p). Kompresja H.264. Odtwarzanie w trybie pełnoekranowym lub podziale. Złącze LAN (RJ-45), 2 gniazda USB. Obudowa metalowa, wysokość montażowa 1U. Zasilanie 12VDC (zasilacz w zestawie). Wymiary: 380×290×48mm. Waga: 2 kg (bez dysku)....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-7200HGHI-E1 SERIES TURBO HD DVR

Video Input and Transmission
 Connectable to HDTVI and analog cameras
 Up to 2-ch 1080p IP camera input for DS-7208/7216HGHI-E1
 Long distance transmission over UTP and coaxial cable
Compression and Recording
 H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
 Full channel recording at up to 720p resolution
Video Output
 Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8/16-ch synchronous playback at up to 720p resolution
 Smart search for efficient playback
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 VQD (Video Quality Diagnostics)
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 One self-adaptive 10/100Mbps network interface
Features and Functions







Model

DS-7204HGHI-E1 DS-7208HGHI-E1 DS-7216HGHI-E1
Video/Audio
input
Video compression H.264+/H.264
Analog and HDTVI video
input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Supported camera types 720p/25Hz, 720p/30Hz, CVBS
IP video input
1-ch 2-ch
Up to 720p
resolution
Up to 1080p resolution
Audio compression G.711u
Audio input/Two-way audio
input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA output
1920 x 1080/60Hz,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Encoding resolution 720p/VGA/WD1/4CIF/CIF
Frame rate
Main stream: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps;
CIF/QVGA/QCIF@
25fps (P)/30fps (N)
Sub-stream:
4CIF/2CIF@6fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Network
management
Remote connections 32 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
External
interface
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 8 W ≤ 12 W ≤ 20 W
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
260 x 222 x 45 mm (10.2 x 8.7 x 1.8 inch)
Weight
(without HDD)
≤ 1 kg (2.2 lb) ≤ 1.2 kg (2.6 lb)
Specifications
Each two video channels are grouped in sequence, e.g., CH01 and CH02, CH03 and CH04...; and each two channels in
the same group must be connected with the same type of video source (TVI or CVBS). The above information is for reference
only. Please refer to the specific configuration of the device.





Index Description Index Description
1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interface
3 VGA Interface 8 GND
4 AUDIO OUT 9 12 VDC Power Input
5 AUDIO IN
DS-7204HGHI-E1, DS-7208HGHI-E1, and DS-7216HGHI-E1

Physical Interfaces
0303011060716
Available Models


The rear panel of DS-7208/7216HGHI-E1 provides 8/16 video input interfaces.
