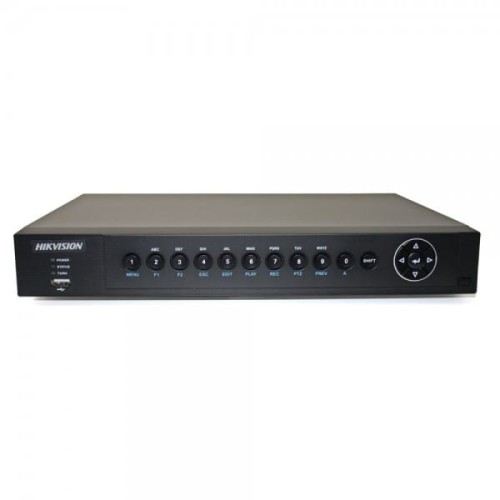

DS-7208HUHI-F1/N

Rejestrator Turbo-HD Hikvision, 8 wejścia wizyjne BNC (Turbo-HD/AHD/960H/PAL), max. parametry zapisu: 3MP@15kl/s, 1920x1080@25kl/s; kompresja H.264/H.264+; możliwość podłączenia 2 kanałów IP (max. 4MP na kanał), odtwarzanie w trybie pełnoekranowym lub podziale. Dwa strumienie. Wejścia/wyjścia audio: 4/1, 1 interfejs SATA (max. 6TB). Wyjście monitorowe HDMI(4K)/VGA(Full-HD)/CVBS(PAL), 1xRJ-45 (10M/100M/1000M), 1xUSB 2.0, 1xUSB 3.0, 1xRS-485 (PTZ). Wej./wyj. alarmowe: 8/4. Analityka: przekroczenie linii, detekcja intruza; wyszukiwanie VCA. Obudowa 1U, Wymiary: 315×242×45mm. waga około 2kg. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-7200HUHI-F1/N SERIES TURBO HD DVR

Video Input and Transmission
 Connectable to HDTVI, AHD and analog cameras
 Up to 2-ch 4 MP IP cameras input
 Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p
HDTVI signal
Compression and Recording
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
 Full channel recording at up to 3 MP resolution
Video Output
 Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution for DS-7204HUHI-F1/N and 4K (3840 x 2160) resolution
for HDMI output of DS-7208HUHI-F1/N
 Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view
output only
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8-ch synchronous playback
 Smart search for efficient playback
 Supports the 3
rd
party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Supports line crossing detection and intrusion detection of all channels
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 One gigabit Ethernet network interface (for DS-7208HUHI-F1/N)
 Output bandwidth limit configurable
Features and Functions








Model DS-7204HUHI-F1/N DS-7208HUHI-F1/N
Video/Audio
input
Video
compression H.264+/H.264
Analog video
input
4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60, 3 MP
AHD input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP video input
2-ch
Up to 4 MP resolution
Audio
compression
G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA
output
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x 768/60Hz
VGA: 1-ch, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x
1440)/60Hz, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding
resolution 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
3 MP@15fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback
4-ch 8-ch
Network
management
Remote
connections
128
Network
protocols TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
External
interface
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network
interface
1, RJ45 10M/100M self-adaptive Ethernet
interface
1, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
USB interface 2 x USB 2.0 Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Serial interface RS-485 (half-duplex)
Alarm in/out 4/1 8/4
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 15 W ≤ 20 W
Working
temperature
-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working
humidity
10% to 90%
Dimensions
(W x D x H) 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch)
Weight
(without HDD)
≤ 1.5 kg (3.3 lb) ≤ 2 kg (4.4 lb)
Specifications



Index Description Index Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 12 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface
DS-7204HUHI-F1/N, DS-7208HUHI-F1/N
Physical Interfaces
03040801061014

Available Models


The rear panel of DS-7208HUHI-F1/N provides 8 video input interfaces.
