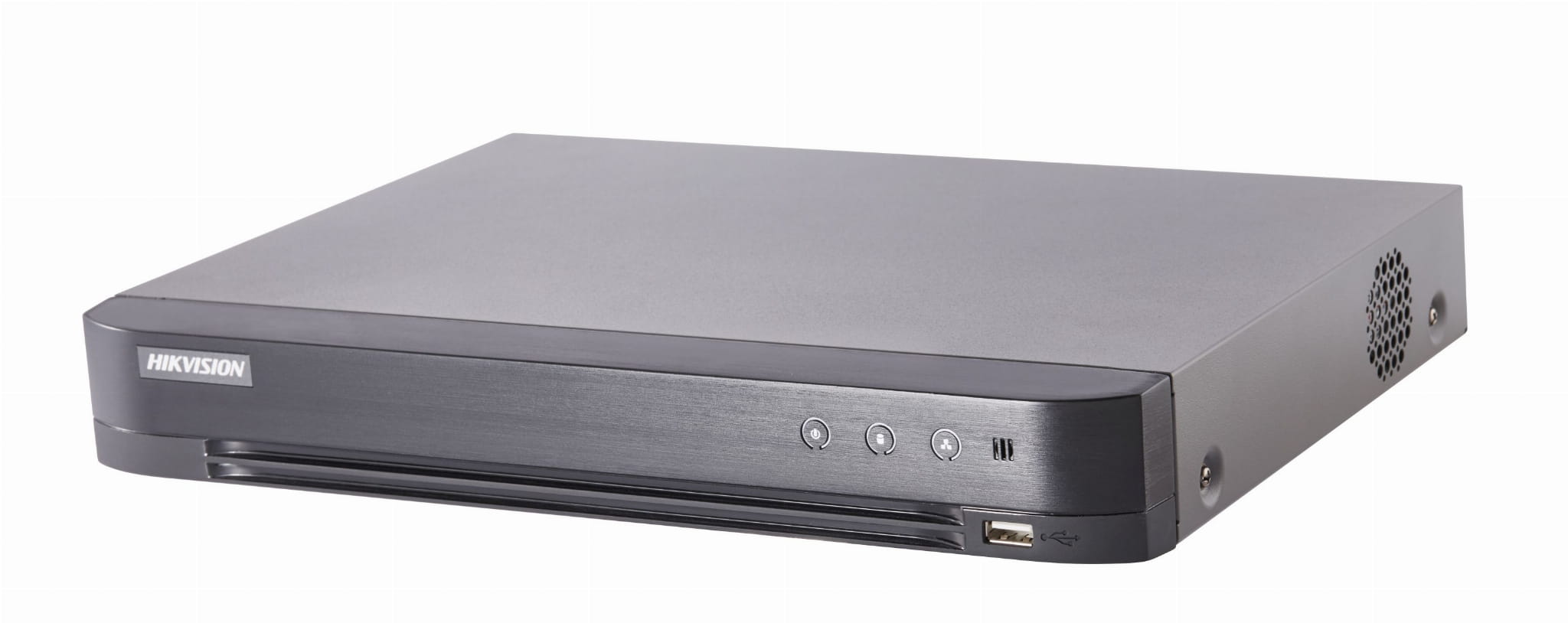

DS-7208HTHI-K2

Dostępność: 1-5
Cena: 2 382,00 zł 2382.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300220518

Opis

Rejestrator Turbo-HD Hikvision, 8 wejść wizyjnych BNC (Turbo-HD/AHD/HD-CVI/PAL), max. parametry zapisu: 8MP@12kl/s, 5MP@20kl/s, 4MP@20kl/s, 3MP@18kl/s, 1920x1080@25kl/s; kompresja H.265/H.265+/H.264/H.264+; możliwość podłączenia 2 kanałów IP (max. 8MP na kanał). Odtwarzanie w trybie pełnoekranowym lub podziale. Dwa strumienie, kompresja audio G.711u. Wejścia/wyjścia audio: 8/1, 2 interfejsy SATA (max. 8TB). Analityka dla wszystkich kanałów: przekroczenie linii, detekcja intruza. Detekcja zmiany sceny dla dwóch kanałów. Wyjście monitorowe HDMI(Full-HD)/VGA(Full-HD)/CVBS(PAL), 1xRJ-45 (10M/100M/1000M), 1xUSB 2.0, 1xUSB 3.0, 1xRS-485 (PTZ). Wej./wyj. alarmowe: 8/4. Wyszukiwanie VCA. Obudowa 1U, Wymiary: 380x320x48mm. waga około 2kg. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-7200HTHI-K2 SERIES TURBO HD DVR

Video Input and Transmission
 Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
 Up to 2/4-ch 8 MP IP cameras input
 8 MP HDTVI video input and live view
 Defogging function enabled for the supported analog cameras
 Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
 H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
 Connectable to H.265+/H.265/H.264+/H.264 IP cameras
 H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
 Full channel recording at up to 8 MP resolution
Video Output
 HDMI and VGA interfaces can be configured to be simultaneous or independent
 HDMI output at up to 4K (3840 x 2160) resolution
 Separate CVBS output
Storage and Playback
 2 SATA interface (up to 8 TB capacity per HDD)
 4/8-ch synchronous playback
 Smart search for efficient playback
 Supports the 3
rd
party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
 VCA information overlay in live view and smart playback
 VQD (Video Quality Diagnostics)
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
 Output bandwidth limit configurable
Features and Functions








Model DS-7204HTHI-K2 DS-7208HTHI-K2
Video/Audio
input
Video
compression H.265+/H.265/H.264+/H.264
Analog video
input
4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
IP video input
2-ch 4-ch
Up to 8 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio
compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA
output
VGA: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding
resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
8 MP@12fps, 5 MP@20fps, 3 MP@18fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 16 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback
4-ch 8-ch
Network
management
Remote
connections
32 64
Network
protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Hard disk
SATA 2 SATA interfaces
Capacity Up to 8 TB capacity for each disk
External interface
Two-way audio
input
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st audio input)
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Serial interface RS-485 (half-duplex)
Alarm in/out 4/1 8/4
General
Power supply 12 VDC
Consumption
(without HDD) ≤ 15 W ≤ 20 W
Working
temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H) 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inch)
Weight
(without HDD)
≤ 1.5 kg (3.3 lb) ≤ 2 kg (4.4 lb)
Specifications



Index Description Index Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 12 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface
DS-7204HTHI-K2, DS-7208HTHI-K2
Physical Interfaces
03050301071109

Available Models


The rear panel of DS-7204HTHI-K2 provides 4 video input interfaces.
