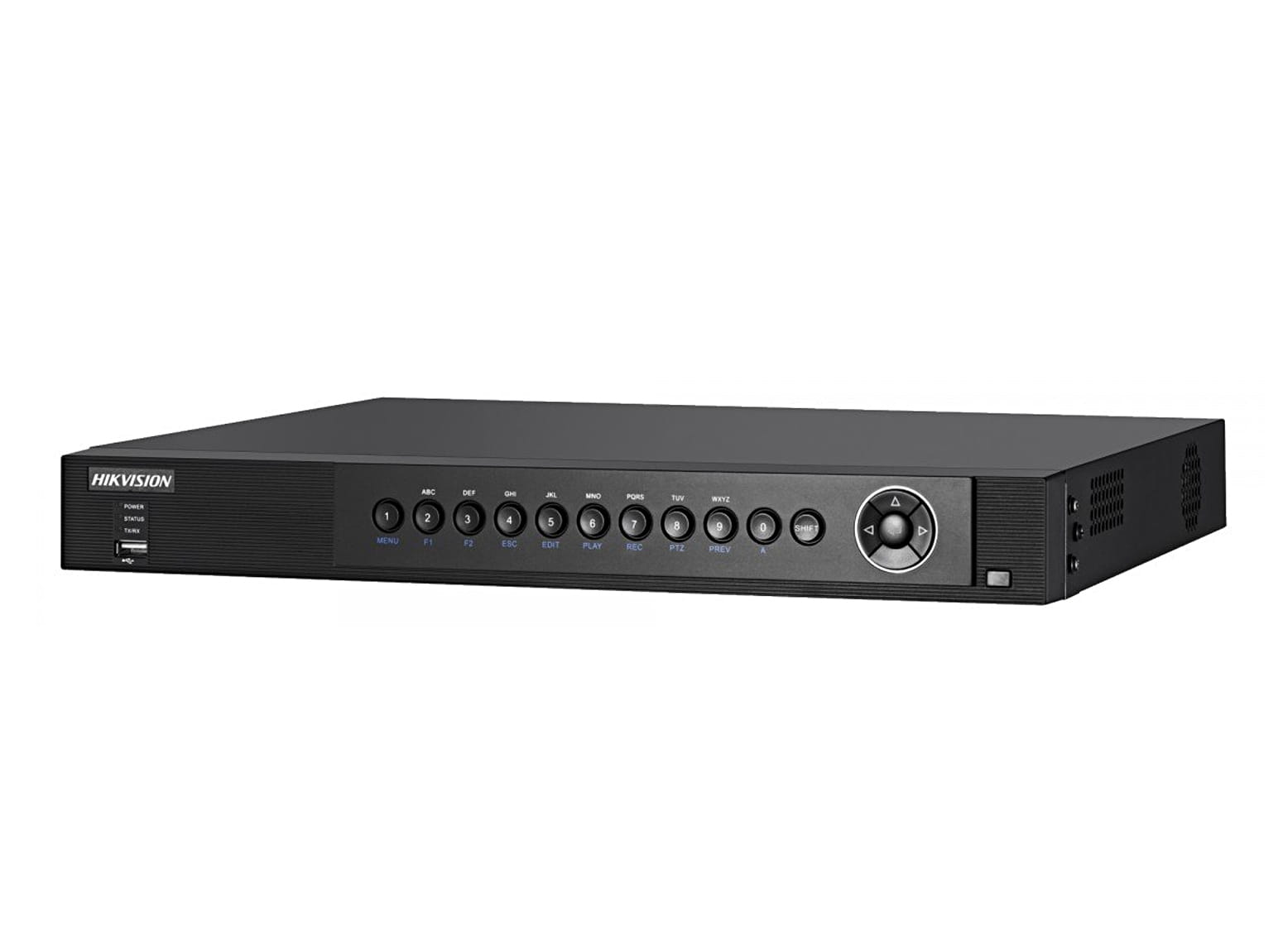

DS-7208HQHI-SH

Rejestrator 8 Turbo HD/Analog self-adaptive interfaces input, 8-ch video&4-ch audio input, 1 SATA interface,1920×1080P: 25(P)/30(N) fps/ch, alarm I/O: 8/4, 380 1U case...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-7200HQHI-SH Series DVR

Introduction:
DS-7200HQHI-SH series DVR (Digital Video Recorder) is a new generation
recorder developed by Hikvision independently which can connect HD
analog/network cameras and Coaxitron cameras and provide powerful
surveillance. Combined with multiple advanced technologies, such as audio
and video encoding & decoding technology, embedded system technology,
storage technology, network technology and intelligent technology. It can both
work alone as a recorder and cooperate with other devices to build a
comprehensive surveillance system.
The DS-7200HQHI-SH series DVR are widely applied in the areas of finance,
public security, military, communication, transportation, education, etc.
Available Models:
DS-7204HQHI-SH, DS-7208HQHI-SH, DS-7216HQHI-SH
Main Features:
 Connectable to HD-TVI and analog cameras;
 Connectable to the Coaxitron camera/dome with long transmission
distance;
 Connectable to network cameras at 1080P resolution;
 Simultaneous HDMI and VGA outputs at up to 1920x1080P resolution;
 New GUI and support starting record with one key;
 Redundant recording and holiday recording;
 Instant playback for assigned camera during multi-channel live view
mode;
 Support up to 16-ch synchronous playback at 1080P resolution; and
reverse playback for multi-camera;
 Smart playback to go through less effective information;
 Manual video quality diagnostics;
 VCA detection alarm (line crossing detection and intrusion detection) is
supported;
 Customization of tags, searching and playing back by tags;
 Locking and unlocking record files;
 Support HDD quota and group management; different capacity can be
assigned to different cameras under quota mode;
 2 SATA interfaces provided for DS-7208/7216HQHI-SH and 1 SATA
interface for DS-7204HQHI-SH;
 Up to 1 self-adaptive 10M/100M/1000M network interface;
 Support access by EZVIZ Cloud P2P;
 Support Hikvision DDNS (Dynamic Domain Name System);
 Network detection function.

Physical Interfaces:
DS-7208HQHI-SH:


The rear panel of DS-7204/7216HQHI-SH provides 4/16 video input
connectors.
Index Name
1 VIDEO IN
2 AUDIO IN, RCA Connector
3 AUDIO OUT, RCA Connector
4 VGA Interface
5 HDMI Interface
6 USB Port
7 LAN Network Interface
8 RS-485 Serial Interface
9 12VDC Power Input
10 Power Switch
11 GND
12 ALARM IN and ALARM OUT
Typical Application:







Specifications:
Model

DS-7204HQHI-SH DS-7208HQHI-SH DS-7216HQHI-SH
Video/Audio
input
Video compression H.264
Analog and HD-TVI video
input
4-ch 8-ch 16-ch
BNC interface (1.0Vp-p, 75 Ω)
Supported camera types 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS
IP video input
2-ch
Up to 1080P resolution
Audio compression G.711u, G.726, G.711a, G.722
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st channel of audio input)
Video/Audio
output
HDMI / VGA output 1920 x 1080 / 60 Hz,1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Encoding resolution
Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate
Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate 32 Kbps-10 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
management
Remote connections 128
Network protocols
TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI,
UPnP™, HTTPS
Hard disk
SATA 1 SATA interface 2 SATA interfaces
Capacity Up to 6 TB capacity for each disk
External
interface
Network interface 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface 1; standard RS-485 serial interface, half-duplex
Alarm in/out 4/1 8/4 16/4
USB port 2 x USB2.0
General
Power supply 12V DC
Consumption
(without hard disks)
≤ 15W ≤ 30W ≤ 45W
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 1U chassis 380mm 1U chassis
Dimensions
(W x D x H)
315 x 242 x 45mm
(12.4 x 9.5 x 1.8 inch)
380 x 290 x 48mm
(15.0 x 11.4 x 1.9 inch)
Weight
(without hard disks)
≤ 1.5Kg (3.3lb) ≤ 2Kg (4.4lb)
