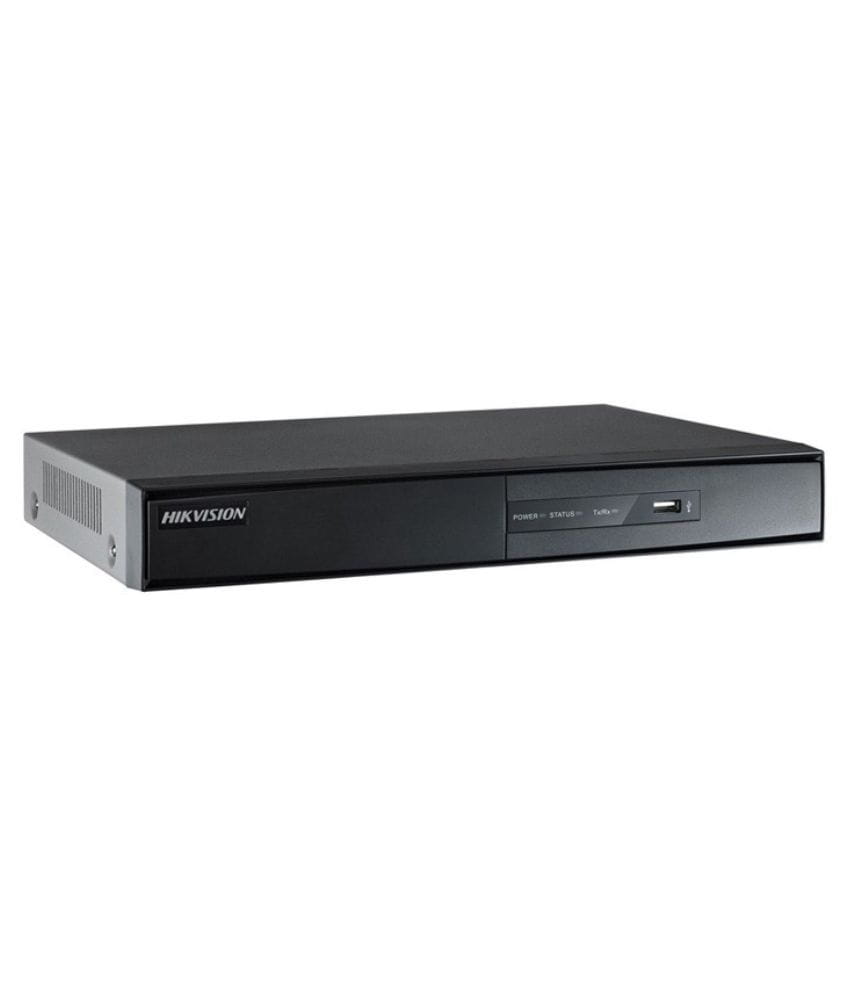

DS-7208HGHI-F1
Opis
Rejestrator Turbo-HD Hikvision, 8 wejść wizyjnych (Turbo-HD/AHD/HD-CVI/PAL), max. parametry zapisu: 1080p@12kl/s (HD-TVI-LM), 720p@25kl/s (dla wszystkich standardów), możliwość podłączenia dwóch kamer IP o rozdzielczości 1080, kompresja H.264/H.264+, wejście/wyjście audio: 1/1, 1 interfesj SATA (max. 6TB), 2xUSB 2.0, 1xRJ45 (10M/100M), wyjście HDMI/VGA (1920x1080), dwa strumienie, funkcja Smart Search, wymiary: 260/222/45mm, masa około: 1kg. Zasilanie 12VDC....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-7200HGHI-F1 SERIES TURBO HD DVR
Video Input and Transmission
Connectable to HDTVI, AHD and analog cameras
Up to 2-ch 1080p IP cameras input
Long distance transmission over UTP and coaxial cable
Compression and Recording
One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
Supports real-time 1080p lite of all channels and when enabled, the image effect is similar with 1080p
Video Output
HDMI/VGA output at up to 1920 x 1080 resolution
Storage and Playback
One SATA interface (up to 6 TB capacity per HDD)
4/8/16-ch synchronous playback at up to 720p resolution
Smart search for efficient playback
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
VQD (Video Quality Diagnostics)
Unlock pattern for device login for the admin and clear-text password available
GUID file can be exported for password resetting and imported for finding the forgotten password
Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
One self-adaptive 10/100Mbps network interface
Output bandwidth limit configurable
Features and Functions
Model
DS-7204HGHI-F1 DS-7208HGHI-F1 DS-7216HGHI-F1
Video/Audio
input
Video compression H.264+/H.264
Analog video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 1080p25, 1080p30, 720p25, 720p30
AHD input 720p25, 720p30
CVBS input Support
IP video input
1-ch 2-ch
Up to 960p
resolution
Up to 1080p resolution
Audio compression G.711u
Audio input/Two-way audio
input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA output
1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Encoding resolution
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps;
CIF/QVGA/QCIF@
25fps (P)/30fps (N)
Sub-stream:
4CIF/2CIF@6fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Network
management
Remote connections 32 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
External
interface
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 8 W ≤ 12 W ≤ 20 W
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
260 x 222 x 45 mm (10.2 x 8.7 x 1.8 inch)
Weight
(without HDD)
≤ 1 kg (2.2 lb) ≤ 1.2 kg (2.6 lb)
Specifications
Index Description Index Description
1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interface
3 VGA Interface 8 GND
4 AUDIO OUT 9 12 VDC Power Input
5 AUDIO IN
DS-7204HGHI-F1, DS-7208HGHI-F1 and DS-7216HGHI-F1
Physical Interfaces
03040801061024
Available Models
The rear panel of DS-7204/7208HGHI-F1 provides 4/8 video input interfaces.
