DS-7204HUHI-K1

Dostępność: 6-10
Cena: 848,00 zł 848.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300219673

Opis

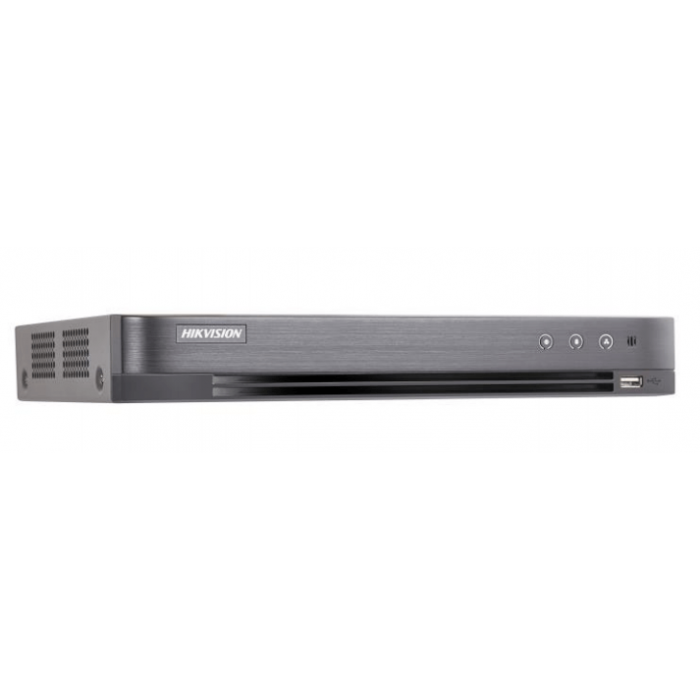

Rejestrator Turbo-HD Hikvision, 4 wejścia wizyjne BNC (Turbo-HD/AHD/HD-CVI/PAL), max. parametry zapisu: 5MP@12kl/s, 4MP@15kl/s, 3MP@18kl/s, 1920x1080@25kl/s; kompresja H.265/H.265+/H.264/H.264+; możliwość podłączenia 2 kanałów IP (max. 6MP na kanał). Odtwarzanie w trybie pełnoekranowym lub podziale. Dwa strumienie, kompresja audio G.711u. Wejścia/wyjścia audio: 4/1, 1 interfejs SATA (max. 6TB). Analityka dla wszystkich kanałów: przekroczenie linii, detekcja intruza. Detekcja wykrycia zmiany sceny dla dwóch kanałów. Wyjście monitorowe HDMI(Full-HD)/VGA(Full-HD)/CVBS(PAL), 1xRJ-45 (10M/100M), 2xUSB 2.0, 1xRS-485 (PTZ). Wej./wyj. alarmowe: 4/1. Wyszukiwanie VCA. Obudowa 1U, Wymiary: 315x242x45mm. waga około 1.16kg. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-7200HQHI-K/P SERIES TURBO HD DVR

Video Input and Transmission
 Self-adaptive normal camera and Hikvision PoC camera connection
 Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P
 Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for
PoC camera
 Automatic power supply management for PoC camera to guarantee safety
Compression and Recording
 H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
 Connectable to H.265+/H.265/H.264+/H.264 IP cameras
 H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
 Up to 3 MP resolution for recording
 Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Video Output
 Simultaneous HDMI/VGA output
 HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P
 Separate CVBS output
Storage and Playback
 One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per
HDD)
 4/8/16-ch synchronous playback
 Smart search for efficient playback
 Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Supports 4-ch line crossing detection and intrusion detection, and DS-7216HQHI-K2/P also supports 1-ch sudden scene
change detection
 VQD (Video Quality Diagnostics)
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 One RJ45 10M/100M Ethernet network interface for DS-7204/7208HQHI-K/P, and one RJ45 10M/100M/1000M Ethernet
network interface for DS-7216HQHI-K2/P
 Output bandwidth limit configurable

Features and Functions







Model DS-7204HQHI-K1/P DS-7208HQHI-K2/P DS-7216HQHI-K2/P
Video/Audio input
Video
compression H.265+/H.265/H.264+/H.264
Analog video
input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2
of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P..
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
PoC camera
input
Supports Hikvision PoC camera
Note: Do not unplug or plug the PoC camera if it is powered by the external power supply.
IP video input
1-ch 2-ch
Up to 4 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio
compression
G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA
output
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
VGA: 1-ch, 1920 x
1080/60Hz, 1280 x
1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
HDMI: 1-ch, 4K (3840 x
2160)/30Hz, 2K (2560 x
1440)/60Hz, 1920 x
1080/60Hz, 1280 x
1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
Encoding
resolution
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback 4-ch 8-ch 16-ch
Network
management
Remote
connections 128
Network
protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA 1 SATA interface 2 SATA interfaces
Capacity Up to 6 TB capacity for each disk
External interface
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st
audio input)
Network
interface
1, RJ45 10M/100M self-adaptive Ethernet interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
USB interface 2 x USB 2.0
Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Serial interface RS-485 (half-duplex)
General
Power supply 48 VDC
Consumption
(without HDD)
≤ 40 W ≤ 60 W ≤ 120 W
Working
temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working
humidity 10% to 90%
Dimensions
(W x D x H)
315 x 242 x 45 mm (12.4 x
9.5 x 1.8 inch) 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inch)
Weight
(without HDD)
≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)

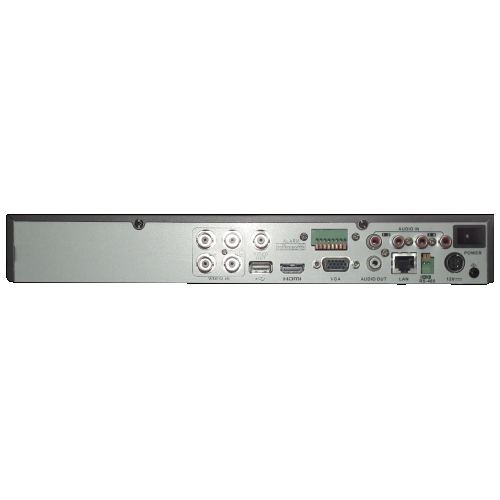

Specifications








Index Description Index Description
1 VIDEO IN 7 LAN Network Interface
2 AUDIO IN, RCA Connector 8 RS-485 Serial Interface
3 AUDIO OUT, RCA Connector 9 48 VDC Power Input
4 VGA Interface 10 Power Switch
5 HDMI Interface 11 GND
6 USB Interface 12 VIDEO OUT
DS-7204HQHI-K1/P, DS-7208HQHI-K2/P, DS-7216HQHI-K2/P
Physical Interfaces
Available Models

03050201070623
The rear panel of DS-7204HQHI-K1/P and DS-7216HQHI-K2/P provides 4/16 video input interfaces.
