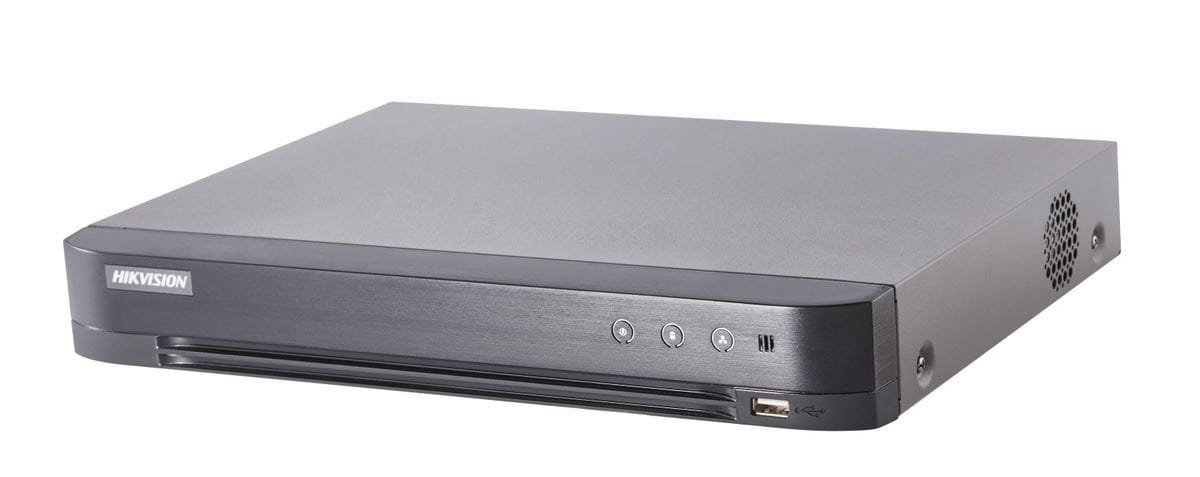

DS-7204HTHI-K2(S)

Rejestrator Turbo-HD Hikvision, Rozdzielczość:parametry zapisu dla strumienia głównego: 8 MP@15 fps, 5 MP@20fps, 3 MP@18 fps; dwa strumienie, kompresja H.265 Pro+/H.265 Pro/H.265/H.264+/H.264; Wejścia wideo IP: 4-ch kanały lub 8-ch kanałów(max. 8MP na kanał), kompresja kamer IP: H.265+/H.265/H.264+/H.264, Wejścia analogowe: 4 wejścia wideo BNC (1.0 Vp-p, 75 Ohm, HDTVI/AHD/CVI/CVBS), Wejścia/wyjścia audio: 4/1, Dwukierunkowe audio: 1-ch, Synchroniczne odtwarzanie: 4-ch, 1xRJ45 (10M/100M/1000M), 2 interfejsySATA (max. 10TB), 1-ch Wyjście wideo HDMI/VGA/CVBS(PAL), 1xUSB 2.0, 1xUSB 3.0, 1xRS-485, Wejścia/wyjścia alarmowe: 4/1, Analityka dla wszystkich kanałów: przekroczenie linii, detekcja intruza, detekcja zmiany sceny dla 2-ch kanałów; wyszukiwanie VCA, Wymiary: 380x320x48mm, Waga(bez HDD) około 1.5kg. Zasilanie 12VDC, Temperatura pracy: -10st.C~55st.C, Pobór mocy: < 15W....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
 H.265 Pro+/H.265 Pro/H.265 video compression
 HDTVI/AHD/CVI/CVBS/IP video input
 Up to 8/16-ch IP camera inputs (up to 8 MP)
 Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
transmission
 Up to 10 TB capacity per HDD



Compression and Recording
 H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
 Full channel recording at up to 8 MP lite resolution
Storage and Playback
 Two SATA interfaces
 Smart search for efficient playback
 Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Output bandwidth limit configurable
DS-7200HTHI-K2 SERIES
TURBO HD DVR





Specification
Model DS-7204HTHI-K2 DS-7208HTHI-K2
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
8 MP@15 fps, 5 MP@20 fps, 3 MP@18 fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bit rate 32 Kbps to 16 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
4-ch (up to 8-ch) 8-ch (up to 16-ch)
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 x 576, NTSC: 704 x 480
VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDM output
1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz,
1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch 8-ch
Network
Remote connection 32 64
Network protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface Front panel: 1 x USB 2.0







Rear panel: 1 x USB 3.0
Alarm in/out 4/1 8/4
General
Power supply 12 VDC
Consumption
(without HDD)
≤15 W ≤ 20 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inch)
Weight (without HDD) ≤ 1.5 kg (3.3 lb) ≤ 2 kg (4.4 lb)



*: The rear panel of DS-7204HTHI-K2 provides 4 video input interfaces.

Physical Interface






No. Description No. Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 12 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface

Available Model
DS-7204HTHI-K2, DS-7208HTHI-K2
