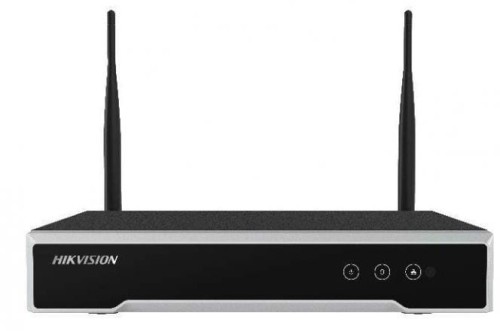

DS-7108NI-K1/W/M

Rejestrator IP Hikvision, 8 wejścia wideo IP, max. parametry zapisu: 4 MP/3 MP/1080p/1.3 MP/UXGA/720p, kompresja: H.265+/2.265/H.264+/H.264, Wyjście audio: 1/1, 1 interfejs SATA (max. 6TB), 2 x USB 2.0, 1xRJ-45 10/100Mbps wyjście HDMI/VGA (1920 x 1080/60Hz, , 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz), parametry Wi-Fi: częstotliwość 2.4GHz, szybkość transmisji 144Mbps, standard transmisji IEEE 802.11b/g/n, 2 zewnętrzne anteny, 1 interfejs 100Mbps, wymiary: 260x246x48mm, masa poniżej: 1kg. Zasilanie 12VDC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-7108NI-K1/W/M(C)

Kod produktu zamiennego: 303611924

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-7100NI-K1/W/M Series Wi-Fi NVR

Video Input and Transmission
 Up to 4/8 IP cameras (max. incoming bandwidth: 50 Mbps)
 Live view of the connected camera at up to 4 MP resolution
Compression and Recording
 H.264, H.265, H.264+, and H.265+ compression.
 Full channel recording at up to 4 MP resolution
Video Output
 HDMI/VGA output with up to 1920 x 1080 resolution
Storage and Playback
 1 SATA interface for HDD with up to 6 TB capacity
 Up to 4/8-ch synchronous playback
 Smart search for efficient playback
Smart Function
 Supports line crossing and intrusion VCA (Video Content Analytics) events for IP cameras
Network & Ethernet Access
 Hik-Connect for easy network management
 One 100M Ethernet network interface
Wi-Fi Features
 Provides Wi-Fi function.
 Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi
 Dual external antenna design offers more powerful and stable signal.
Features and Functions






Model DS-7104NI-K1/W/M DS-7108NI-K1/W/M
Video/Audio
input
IP video input 4-ch 8-ch
Incoming/outgoing
bandwidth
50/40 Mbps
Video/Audio
output
HDMI/VGA output
1-ch, resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (linear, 1 KΩ)
Decoding
Recording resolution 4 M/3 M/1080p/1.3 M/720p
Synchronous playback 4-ch 8-ch
Capacity 2-ch@1080p / 1-ch@4 MP
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Wireless
parameters
Frequency band 2.4 GHz
Antenna structure 2 x 2MIMO
Transmission speed 144 Mbps
Transmission standard IEEE 802.11b/g/n
External
interface
Network interface 1, RJ45 10/100M Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDDs)
≤ 12 W
Working temperature -10 °C to +55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions
(W x D x H)
260 x 246 x 48 mm (10.2" x 9.7" x 1.9")
Weight (without HDDs) ≤ 1 kg (2.2 lb)
Specifications



Physical Interfaces

No. Name No. Name
1 Wi-Fi antenna 6 LAN
2 Power supply 7 Wi-Fi antenna
3 Audio out 8 USB
4 VGA interface 9 Ground
5 HDMI interface
Available Models
DS-7104NI-KI/W/M,
DS-7108NI-KI/W/M

030496180426
