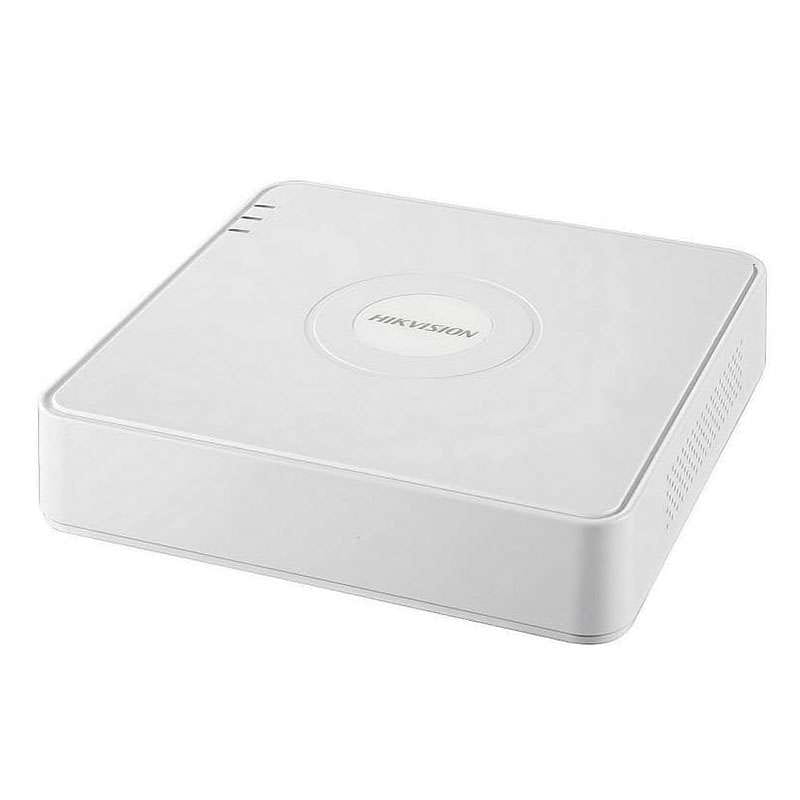

DS-7108HQHI-K1(C)(S)

Rejestrator DVR serii DS-7100HUHI-K1 (C)(S), kompresja H.265 Pro+/H.265 Pro/H.265, wejścia wideo: HDTVI/AHD/CVI/CVBS/IP; Funkcje: Ochrona perymetryczna (detekcja przekroczenia linii/ detekcja intruza) do 2-ch, Włączony rozszerzony tryb VCA do 8-ch; Rozdzielczość: kiedy tryb 8MP Lite jest wyłączony: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF, kiedy tryb 8MP Lite jest włączony: 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF; Dwa strumienie; Wejście wideo IP do 4-ch (lub do 12-ch), włączony rozszerzony tryb IP: 8-ch (lub do 16-ch); wyjścia analogowe wideo do 8-ch; 1-ch wejście audio, przesyłanie sygnału audio przez kabel koncentryczny do 8-ch; dwukierunkowe audio, synchroniczne odtwarzanie do 8-ch, pasmo przychodzące do 64Mbps; Całkowita przepustowości 128Mbps, do 64 zdalnych połączeń; 1 interfejs SATA, do 6 TB. Zasilanie: 12VDC, 1.8A, Temperatura pracy: -10 °C do +55 °C; Wymiary: 200 × 200 × 45 mm; Waga bez HDD 2kg...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: iDS-7108HQHI-M1/S(E)

Kod produktu zamiennego: 300228932

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
 H.265 Pro+/H.265 Pro/H.265 video compression
 HDTVI/AHD/CVI/CVBS/IP video input
 Audio via coaxial cable
 Up to 6/12/24-ch IP camera inputs (up to 6 MP)
 Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
 Up to 6 TB capacity per HDD




Compression and Recording
 H.265 Pro+ can improve encoding efficiency and reduce the data storage cost
 Full channel recording at up to 4 MP lite resolution
Storage and Playback
 Smart search for efficient playback
 Support the 3rd party cloud storage
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable

DS-7100HQHI-K1 SERIES
TURBO HD DVR





Specification
Model DS-7104HQHI-K1 DS-7108HQHI-K1 DS-7116HQHI-K1
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
1-ch (up to 5-ch)

Enhanced IP mode on:
2-ch (up to 6-ch), each up
to 4 Mbps
2-ch (up to 10-ch)

Enhanced IP mode on:
4-ch (up to 12-ch), each up
to 4 Mbps
2-ch (up to 18-ch)

Enhanced IP mode on:
8-ch (up to 24-ch), each up
to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel
1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI output
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
1-ch, 4K (3840 x
2160)/30Hz, 2K (2560 x
1440)/60Hz, 1920 x







1080/60Hz, 1280 x
1024/60Hz, 1280 x
720/60Hz, 1024 x
768/60Hz
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable 8-ch via coaxial cable 16-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch 8-ch 16-ch
Network
Total bandwidth 72 Mbps 96 Mbps 128 Mbps
Incoming bandwidth
(Enhanced IP mode)
24 Mbps 48 Mbps 96 Mbps
Remote connection 32 64 128
Network protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
1, RJ45
10M/100M/1000M
self-adaptive Ethernet
interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
USB interface Real panel: 2 x USB 2.0
Alarm in/out N/A
General
Power supply 12 VDC, 1.5 A 12 VDC, 1.33 A 12 VDC, 1.9 A
Consumption
(without HDD)
≤ 8 W ≤ 12 W ≤ 15 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 200 x 200 x 45 mm (7.9 x 7.9 x 1.8 inch)
285 x 210 x 45 mm (11.2 x
8.3 x 1.8 inch)
Weight (without HDD) ≤ 1 kg (2.2 lb)



The rear panel of DS-7108/7116HQHI-K1 provides 8/16 video input interfaces.


Physical Interface











Available Model
DS-7104HQHI-K1, DS-7108HQHI-K1, DS-7116HQHI-K1

Index Description Index Description
1 Video and Coaxial Audio In 6 LAN Network Interface
2 HDMI Interface 7 USB Interfaces
3 VGA Interface 8 GND
4 AUDIO OUT, RCA Connector 9 12 VDC Power Input
5 AUDIO IN, RCA Connector
