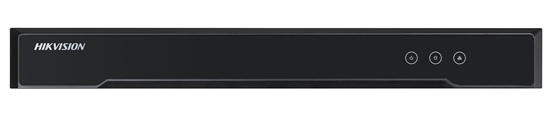

DS-6716HUHI-K
Opis
Enkoder 16-wejściowy interfejsu Turbo HD / CVI / AHD / CVBS, 16-kanałowe wideo i 4-kanałowe wejście audio, kompresja wideo H.264 / H.264 + / H.265 + / H.265, 5MP: 12 kl./s, 4MP: 15 fps / ch, 1920 x 1080P: 25 (P) / 30 (N) fps / ch, karta sieciowa Gigabit, alarm I / O: 4/1, RS232, 315, obudowa 1U...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-6700HUHI-K SERIES TURBO HD ENCODER
Video Input and Transmission
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
5 MP/4 MP HDTVI video input and live view
Long distance transmission over UTP and coaxial cable
Compression and Recording
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Full channel recording at up to 5 MP resolution
Storage and Playback
1 SATA interface for DS-6704HUHI-K, and 2 SATA interfaces for DS-6708/6716HUHI-K (up to 8 TB capacity per HDD)
Searching and playing back record files by camera number, recording type, start time, end time, etc.
Smart Function
Supports line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection
Network & Ethernet Access
DDNS (Dynamic Domain Name System) for easy network management
1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
Features and Functions
Model DS-6704HUHI-K DS-6708HUHI-K DS-6716HUHI-K
Video/Audio
input/output
Video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Synchronous
playback 4-ch 8-ch 16-ch
Video/Audio
encoding
Video
compression H.265+/H.265/H.264+/H.264
Audio
compression G.711u
Main stream 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio bit rate 64 Kbps
Dual stream Support
Network
management
Network
protocols
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF profile S
Storage
SATA 1 SATA interface 2 SATA interfaces
Capacity Up to 8 TB capacity for each disk
External interface
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st audio input)
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-485 (half-duplex); RS-232
Alarm in/out 4/1 8/4 16/4
General
Power supply 12 VDC
Consumption
(without HDD) ≤ 10 W ≤ 20 W ≤ 25 W
Working
temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
315 x 242 x 45 mm (12.4 x
9.5 x 1.8 inch) 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inch)
Weight
(without HDD) ≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)
Specifications
Index Description Index Description
1 VIDEO IN 6 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 7 12 VDC Power Input
3 AUDIO OUT, RCA Connector 8 Alarm In/Out
4 RS-232 Serial Interface 9 Power Switch
5 LAN Network Interface 10 GND
DS-6704HUHI-K, DS-6708HUHI-K, DS-6716HUHI-K
Physical Interfaces
030502001070904
Available Models
The rear panel of DS-6704/6716HUHI-K provides 4/16 video input interfaces.
