DS-6708HUHI-K

Dostępność: 0
Cena: 3 358,00 zł 3358.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300302068

Opis

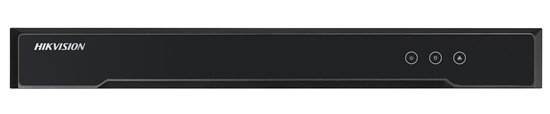

Enkoder 8-wejściowy interfejsu Turbo HD / CVI / AHD / CVBS, 8-kanałowe wideo i 4-kanałowe wejście audio, kompresja wideo H.264 / H.264 + / H.265 + / H.265, 5MP: 12 kl./s, 4MP: 15 fps / ch, 1920 x 1080P: 25 (P) / 30 (N) fps / ch, karta sieciowa Gigabit, alarm I / O: 4/1, RS232, 315, obudowa 1U...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-6700HUHI-K SERIES TURBO HD ENCODER
Video Input and Transmission
 Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
 5 MP/4 MP HDTVI video input and live view
 Long distance transmission over UTP and coaxial cable
Compression and Recording
 H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
 Full channel recording at up to 5 MP resolution
Storage and Playback
 1 SATA interface for DS-6704HUHI-K, and 2 SATA interfaces for DS-6708/6716HUHI-K (up to 8 TB capacity per HDD)
 Searching and playing back record files by camera number, recording type, start time, end time, etc.
Smart Function
 Supports line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection
Network & Ethernet Access
 DDNS (Dynamic Domain Name System) for easy network management
 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
Features and Functions








Model DS-6704HUHI-K DS-6708HUHI-K DS-6716HUHI-K
Video/Audio
input/output
Video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Synchronous
playback 4-ch 8-ch 16-ch
Video/Audio
encoding
Video
compression H.265+/H.265/H.264+/H.264
Audio
compression G.711u
Main stream 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio bit rate 64 Kbps
Dual stream Support
Network
management
Network
protocols
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF profile S
Storage
SATA 1 SATA interface 2 SATA interfaces
Capacity Up to 8 TB capacity for each disk
External interface
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st audio input)
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-485 (half-duplex); RS-232
Alarm in/out 4/1 8/4 16/4
General
Power supply 12 VDC
Consumption
(without HDD) ≤ 10 W ≤ 20 W ≤ 25 W
Working
temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
315 x 242 x 45 mm (12.4 x
9.5 x 1.8 inch) 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inch)
Weight
(without HDD) ≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)
Specifications



Index Description Index Description
1 VIDEO IN 6 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 7 12 VDC Power Input
3 AUDIO OUT, RCA Connector 8 Alarm In/Out
4 RS-232 Serial Interface 9 Power Switch
5 LAN Network Interface 10 GND
DS-6704HUHI-K, DS-6708HUHI-K, DS-6716HUHI-K
Physical Interfaces
030502001070904

Available Models


The rear panel of DS-6704/6716HUHI-K provides 4/16 video input interfaces.
