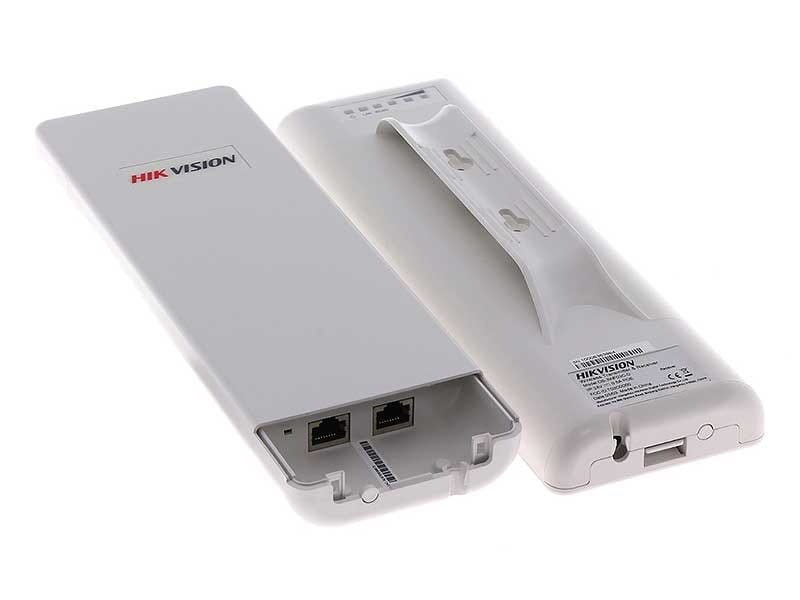

DS-3WF03C

Most bezprzewodowy zewnętrzny. Wbudowana antena 15dBi 2x2 dual-polarized directional MIMO. Teoretyczna przepustowość 5GHZ osiąga 300Mbps. Sposób łączności punkt-punkt, punkt-wielopunkt. Odległość transmisji bezprzewodowej do 15 km. Zasilanie za pomocą dołączonego adaptera poprzez pasywny PoE. Szeroki zakres temperatur: -30st.~75st., waga 0.6 kg, stopien ochrony IP65, wymiary 270x40x88 mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3WF03C-D Outdoor Wireless Bridge
 High performance 802.11n 2x2 MIMO chip
 Longest transmission range: 3Km, and effective transmission throughput: 40Mbps
 Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust
 TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP
performance
 5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS Repeater
 Point-to-point connection
 Unique RF and antenna design enables long-range transmission
 Wireless multimedia optimization technology guarantees video/audio transmission QoS
 Web based working scenario selection makes the installation and setting much easier
 Reliable PoE power supply, support 802.3af standard
 Web-based configuration, easy to use
 Waterproof housing and accessory kit protects
Features and Functions






Items Specifications
Wireless
Standard IEEE802.11 a/n(2T2R 300Mbps)
Operation
frequency
5745 to 5825MHz(More Non-standard channels is availability, the range: 4920MHz to 6100MHz)
Modulation mode 802.11 a/n: OFDM
Antenna Internal, Gain 15dBi, H:40° V:15°
Output power 27dBm
Receive sensitivity -74dBm@65Mbps, -96dBm@6Mbps
Data rate
11n:13.5/15/27/30/40.5/45/54/60/81/90/108/120/121.5/135/150/162/180/216/240/270/300
Mbps(40MHz)
130/117/104/78/65/58.5/52/39/26/13/6.5Mbps(20MHz)
11a :54/48/36/24/18/12/9/6Mbps(Auto)
Hardware
Power supply 24V/0.5A PoE
Interface PoEx1+LANx1
Operation
temperature
-30℃ to +75℃ (-22℉ to +167℉)
Storage
temperature
-40℃ to +85℃ (-40℉ to +185℉)
Operation humidity 5% to 95%RH non-condensing
Dimensions 270x40x88 mm (10.6x1.57x3.46 inch)
Software
Encryption 802.1x/WPA-PSK/WPA2-PSK
Network mode Router/Bridge
Operation mode Access Point, Station, WDS Access Point, WDS Station
Security IP/MAC filter, SSID hidden
Network protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA
Supported (Avoid 802.11 hidden-node problems, and improve the point-to-multi-point
performance)
Auto ACK timing
adjust
Supported(It can automatically choose optimized parameter in long distance transmission,keep
the performance always the best)
Management and
Logs
NTP, Syslog, Telnet, AC
Web based
configuration
Supported
Firmware update Support update firmware by Web page
Bandwidth
supported
5M/10M/20M/40MHz
Specifications




Physical Interfaces



Index Description Index Description
1 Reset button 3 PoE interface
2 LAN interface
DS-3WF03C-D
Available Model
